Example Application: Georgetown Dry Cleaning Services



Introduction

Georgetown Dry Cleaning Services is a fictitious business that takes care of cleaning all types of items for customers. Customers bring their items to the store. Depending on the time they leave them, they can get them back the same day or the day after.

We will create a (very) simple application to give us an idea of how to manage such a business.

Practical Learning: Introducing GDCS

  1. Start Microsoft Access
  2. To create a new database, click File Name and type Georgetown Dry Cleaning Services
  3. Click Create
  4. Close the default table without saving it

The Customers

A cleaning order starts with a customer bringing some clothes for cleaning. To prepare and deliver cleaning orders, we will create a table for customers.

Practical Learning: Creating Customers

  1. On the Ribbon, click Create and, in the Tables section, click Table Design
  2. Click the empty box under Field Name and create the following fields:

    Field Name Data Type Field Size Caption
    CustomerID AutoNumber   Customer ID
    PhoneNumber Text 30 Phone #
    FirstName Text 25 First Name
    LastName Text 25 Last Name
  3. Right-click CustomerID and click Primary Key
  4. Right-click the Table1 tab and click Save
  5. Set the Table Name to Customers
  6. Click OK
  7. Click the first empty box under Field Name and type CustomerName
  8. Set its Data Type to Calculated
  9. In the Expression Builder, type LastName + ', ' + FirstName
  10. Click OK
  11. Click the first empty box under Field Name and type Notes
  12. Set its Data Type to Memo

    Field Name Data Type Field Size Caption
    PhoneNumber Text 20 Phone #
    FirstName Text 25 First Name
    LastName Text 25 Last Name
    CustomerName Text   Customer Name
    Notes Memo
  13. Save and close the table
  14. On the Ribbon, click Create and, in the Forms section, click Form Design
  15. Using the Properties window, set its Record Source to Customers
  16. Save the form as Customers
  17. Complete the design as follows:

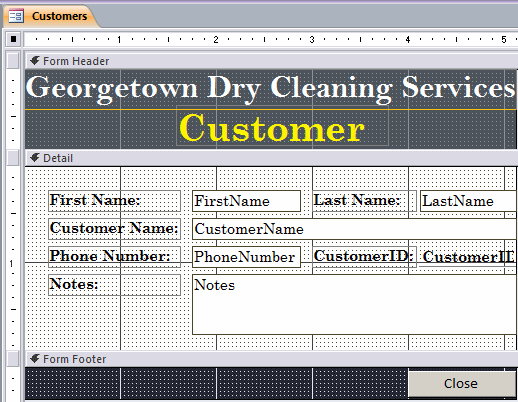

    Georgetown Dry Cleaning Services: Customers
  18. Save and close the Customers form

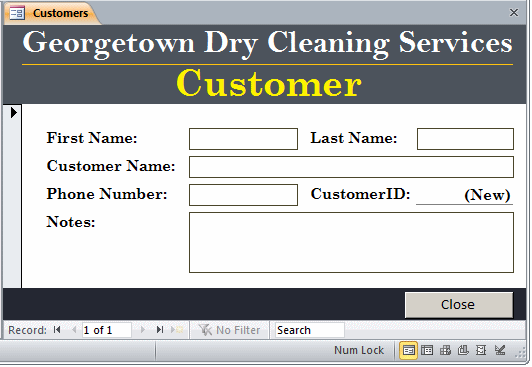

    Georgetown Dry Cleaning Services: Customers
  19. In the Navigation Pane, right-click the Customers form and click Copy
  20. Right-click any area of the Navigation Pane and click Paste
  21. Set the name to NewCustomer
  22. Click OK
  23. In the Navigation Pane, right-click NewCustomer and click Design View
  24. Using the Properties window, change the following characteristics:
    Navigation Buttons: No
    Data Entry: Yes

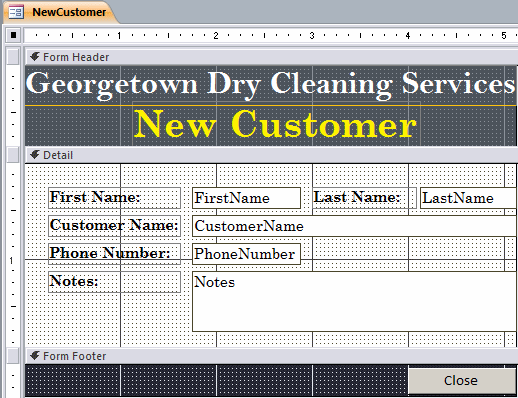

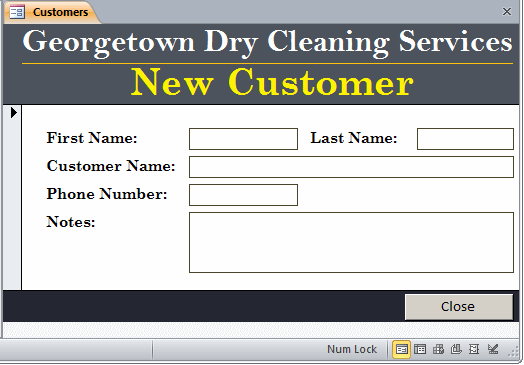

    Georgetown Dry Cleaning Services: New Customer
  25. Save and close the NewCustomer form

The Current Status of an Order

After a customer has droppped some clothes, employees start processing them. At one time, the items will have been cleaned and wait for the customer. At another time, the customer will come to pick the clothes up. This means that, throughout this process, the status of a cleaning order changes. To keep track of these, we will create a small table.

Practical Learning: Creating Order Status

  1. On the Ribbon, click Create and, in the Tables section, click Table Design
  2. Click the empty box under Field Name and create the following fields:

    Field Name Data Type Field Size Caption
    OrderStatus Text 40 Order Status
    Notes Memo
  3. Right-click OrderStatus and click Primary Key
  4. Right-click Table1 and click Datasheet View
  5. When asked to save the table, click Yes
  6. Set the Name to OrdersStatus
  7. Click OK

The Cleaning Items

Our company cleans various types of items. We could provide empty text boxes in a form and let the clerk type the name of an item that is being cleaned but this solution would require too much typing. Another option is to provide a fixed list of items. The problem with this solution is that the list of items may increase. The most logical option is to create a table of items so that, when necessary, a new item can be added to the list.

Practical Learning: Creating Cleaning Items

  1. On the Ribbon, click Create and, in the Tables section, click Table Design
  2. Click the empty box under Field Name and create the following fields:

    Field Name Data Type Field Size Format Caption
    ItemID AutoNumber     Item ID
    ItemName Text 40   Item Name
    DefaultPrice Number Double Fixed Default Price
  3. Right-click ItemID and click Primary Key
  4. Right-click Table1 and click Datasheet View
  5. When asked whether you want to save the table, click Yes
  6. Set the Name to Items
  7. Click OK
  8. Close the table
  9. On the Ribbon, click Create and, in the Forms section, click Form Design
  10. Using the Properties window, set its Record Source to Items
  11. Save the form as CleaningItems
  12. Complete the design as follows:

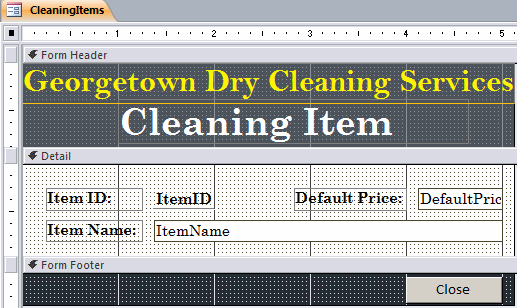

    Georgetown Dry Cleaning Services: Cleaning Items
  13. Save and close the CleaningItems form
  14. In the Navigation Pane, right-click the CleaningItems form and click Copy
  15. Right-click any area of the Navigation Pane and click Paste
  16. Set the name to NewCleaningItem
  17. Click OK
  18. In the Navigation Pane, right-click NewCleaningItem and click Design View
  19. Using the Properties window, change the following properties:
    Navigation Buttons: No
    Data Entry: Yes

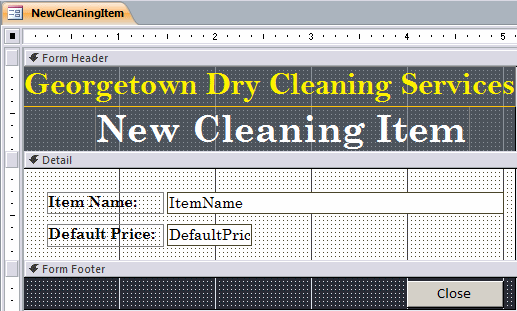

    Georgetown Dry Cleaning Services: New Cleaning Item
  20. Save and close the NewCleaningItem form

Cleaning Orders

A cleaning order is the central activity of our database. It will keep its information as

  • A (unique) receipt number
  • A way to identity the customer whose cleaning will be processed or has been done
  • Date and time information about the order such as when the customer brought the items to be cleaned, the date/time the items are/were expected
  • The item or list of items to clean

We also need to keep a status of each cleaning order to specify if the items have been dropped, are being cleaning, or have been picked up.

Practical Learning: Creating Cleaning Orders

  1. On the Ribbon, click Create and, in the Queries section, click Query Design
  2. On the Show Table dialog box, click Close
  3. Right-click the Query1 window and click SQL View
  4. Replace the code in the Query1 window with the following:
    CREATE TABLE CleaningOrders
    (
        ReceiptNumber Counter(100001, 1),
        Constraint PK_CleaningOrders Primary Key(ReceiptNumber)
    );
  5. To execute the code, on the Ribbon, click the Run button Run
  6. Close the Query1 window
  7. When asked whether you want to save, click No
  8. In the Navigation Pane, right-click CleaningOrders and click Design View
  9. Complete the table with the following fields:

    Field Name Data Type Field Size Format Caption Default Value
    ReceiptNumber AutoNumber     Receipt #
    CustomerPhone   20   Customer Phone
    DateDeposited Date/Time   Long Date Date Deposited =Date()
    TimeDeposited Date/Time   Medium Time Time Deposited =Time()
    DateExpected Date/Time   Long Date Date Expected
    TimeExpected Date/Time   Medium Time Time Expected
    UnitPriceShirts Number Double Fixed Unit Price Shirts 1.25
    QuantityShirts Number Integer   Quantity Shirts
    UnitPricePants Number Double Fixed Unit Price Pants 1.95
    QuantityPants Number Integer   Quantity Pants
    Item1
    UnitPriceItem1 Number Double Fixed
    QuantityItem1 Number Integer
  10. In the top section of the table, set the Data Type of the Item1 field to Lookup Wizard...
  11. In the first page of the wizard, make sure the first radio button is selected and click Next
  12. In the second page of the wizard, click Table: Items
  13. Click Next
  14. In the Available Fields list, double-click ItemName and DefaultPrice
  15. Click Next
  16. Click Next
  17. Click Next
  18. Accept the column label as Item1 and click Finish
  19. Click Yes to save the table
  20. Click the box on the left side of Item1
  21. Press and hold Shift
  22. Click the box on the left side of QuantityItem1
  23. Press Ctrl + C to copy
  24. Click the first empty box under QuantityItem1
  25. Press Ctrl + V to paste
  26. Change the field names to Item2, UnitPriceItem2, and QuantityItem2 respectively
  27. Click the first empty box under QuantityItem2
  28. Press Ctrl + V to paste
  29. Change the new field names to Item3, UnitPriceItem3, and QuantityItem3 respectively
  30. Click the first empty box under QuantityItem3
  31. Press Ctrl + V to paste
  32. Change the new field names to Item4, UnitPriceItem4, and QuantityItem4 respectively
  33. Complete the table with the following fields:

    Field Name Data Type Field Size Format Caption Default Value
    ReceiptNumber AutoNumber     Receipt #
    CustomerPhone
    CustomerName
    DateDeposited
    TimeDeposited
    DateExpected
    TimeExpected
    UnitPriceShirts
    QuantityShirts
    UnitPricePants
    QuantityPants
    Item1
    UnitPriceItem1
    QuantityItem1
    Item2
    UnitPriceItem2
    QuantityItem2
    Item3
    UnitPriceItem3
    QuantityItem3
    Item4
    UnitPriceItem4
    QuantityItem4
    OrderStatus
    TaxRate Number Double Percent Tax Rate 0.0750
    DatePickedUp Date/Time   Long Date Date Picked Up
    TimePickedUp Date/Time   Medium Time Time Picked Up
    Notes Memo
  34. In the top section of the table, set the Data Type of the OrderStatus field to Lookup Wizard...
  35. In the first page of the wizard, make sure the first radio button is selected and click Next
  36. In the second page of the wizard, click Table: OrderStatus
  37. Click Next
  38. In the Available Fields list, double-click OrderStatus
  39. Click Next
  40. Click Next
  41. Click Next
  42. Accept the label as OrderStatus and click Finish
  43. Click Yes to save the table
  44. Close the table
  45. On the Ribbon, click Create
  46. In the Forms section, click Form Design
  47. Right-click the form and click Form Header/Footer
  48. Right-click the form's tab and click Save
  49. Set the name to CleaningOrders and press Enter
  50. Double-click the button at the intersection of rullers
  51. In the Property Sheet, click All and change the following characteristics:
    Record Source: CleaningOrders
    Caption: Georgetown Dry Cleaning Services - Cleaning Orders
    Dividing Lines: Yes
  52. In the Tools section, click Add Existing Fields

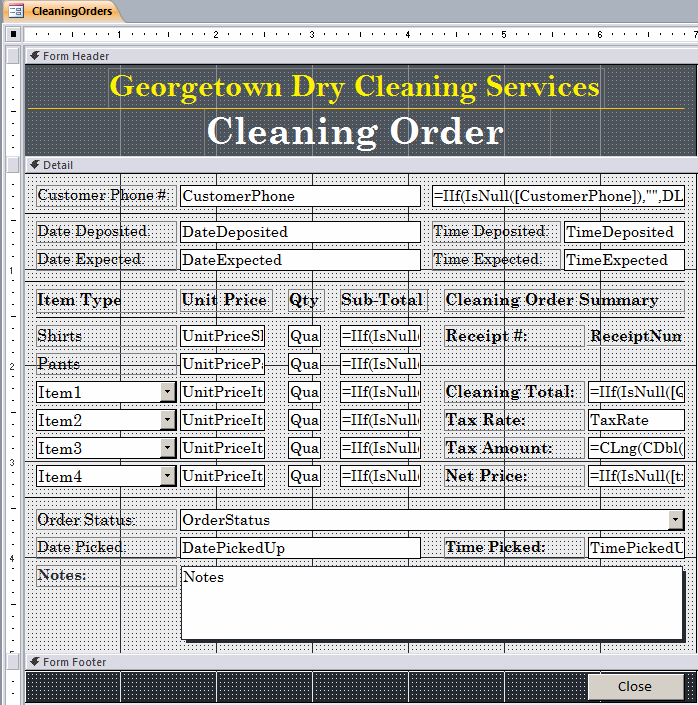

  53. Design the form as follows:

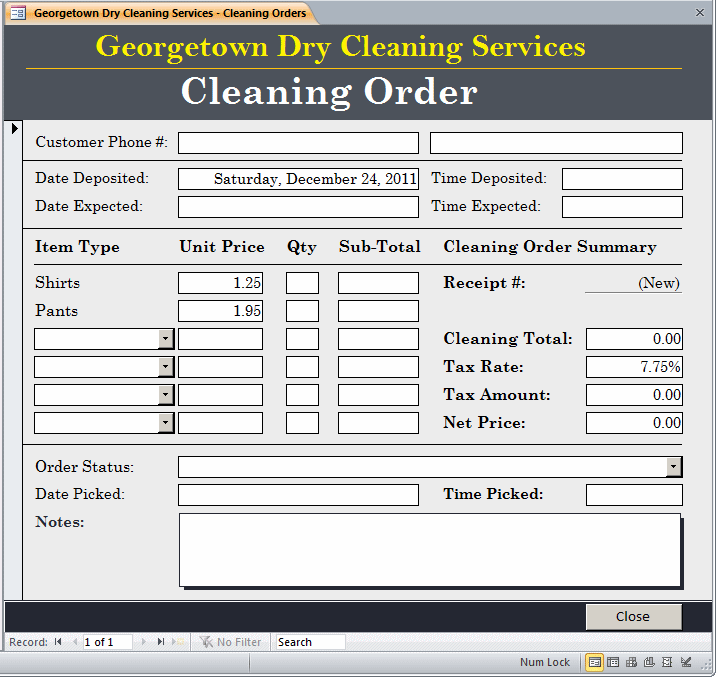

    Georgetown Dry Cleaning Services
    Control Name Caption Control Sourcce Format
    Label Label   Customer Phone #:
    Text Box Text Box CustomerPhone   CustomerPhone
    Label Label   Customer Name:
    Text Box Text Box CustomerName   =IIf(IsNull([CustomerPhone]), "", DLookUp("CustomerName", "Customers", "PhoneNumber = '" & [CustomerPhone] & "'"))
    Label Label   Date Deposited:
    Text Box Text Box DateDeposited   DateDeposited
    Label Label   Time Deposited:
    Text Box Text Box TimeDeposited   TimeDeposited
    Label Label   Date Expected:
    Text Box Text Box DateExpected   DateExpected
    Label Label   Time Expected:
    Text Box Text Box TimeExpected   TimeExpected
    Line Line
    Label Label   Item Type
    Label Label   Unit Price
    Label Label   Qty
    Label Label   Sub-Total
    Label Label   Cleaning Order Summary
    Label Label   Shirts
    Text Box Text Box UnitPriceShirts   UnitPriceShirts
    Text Box Text Box QuantityShirts   QuantityShirts
    Text Box Text Box txtSubTotalShirts   =IIf(IsNull([QuantityShirts]), "", Nz([UnitPriceShirts]) * Nz([QuantityShirts])) Fixed
    Label Label   Receipt #:
    Text Box Text Box ReceiptNumber   ReceiptNumber
    Label Label   Pants
    Text Box Text Box UnitPricePants   UnitPricePants
    Text Box Text Box QuantityPants   QuantityPants
    Text Box Text Box txtSubTotalPants   =IIf(IsNull([QuantityItem1]), "", Nz([UnitPricePants]) * Nz([QuantityPants])) Fixed
    Combo Box Combo Box Item1   Item1
    Text Box Text Box UnitPriceItem1   UnitPriceItem1
    Text Box Text Box QuantityItem1   QuantityItem1
    Text Box Text Box txtSubTotalItem1   =IIf(IsNull([QuantityItem1]), "", Nz([UnitPriceItem1]) * Nz([QuantityItem1])) Fixed
    Label Label   Cleaning Total:
    Text Box Text Box txtCleaningTotal   =IIf(IsNull([QuantityShirts]), 0, Nz([txtSubTotalShirts])) + IIf(IsNull([QuantityPants]), 0, Nz([txtSubTotalPants]))+IIf(IsNull([QuantityItem1]), 0, Nz([txtSubTotalItem1])) + IIf(IsNull([QuantityItem2]), 0, Nz([txtSubTotalItem2]))+IIf(IsNull([QuantityItem3]), 0, Nz([txtSubTotalItem3])) + IIf(IsNull([QuantityItem4]), 0, Nz([txtSubTotalItem4])) Fixed
    Combo Box Combo Box Item2   Item2
    Text Box Text Box UnitPriceItem2   UnitPriceItem2
    Text Box Text Box QuantityItem2   QuantityItem2
    Text Box Text Box txtSubTotalItem2   =IIf(IsNull([QuantityItem2]), "", Nz([UnitPriceItem2]) * Nz([QuantityItem2])) Fixed
    Label Label   Tax Rate:
    Text Box Text Box TaxRate   TaxRate
    Combo Box Combo Box Item3   Item3
    Text Box Text Box UnitPriceItem3   UnitPriceItem3
    Text Box Text Box QuantityItem3   QuantityItem3
    Text Box Text Box txtSubTotalItem3   =IIf(IsNull([QuantityItem3]), "", Nz([txtUnitPriceItem3]) * Nz([QuantityItem3])) Fixed
    Label Label   Tax Amount:
    Text Box Text Box txtTaxAmount   =CLng(CDbl(Nz([txtCleaningTotal])) * CDbl(Nz([TaxRate])) * 100) / 100 Fixed
    Combo Box Combo Box Item4   Item4
    Text Box Text Box UnitPriceItem4   UnitPriceItem4
    Text Box Text Box QuantityItem4   QuantityItem4
    Text Box Text Box txtSubTotalItem4   =IIf(IsNull([QuantityItem4]), "", Nz([UnitPriceItem4]) * Nz([QuantityItem4])) Fixed
    Label Label   Net Price:
    Text Box Text Box txtNetPrice   =Nz([txtCleaningTotal]) + Nz([txtTaxAmount]) Fixed
    Line Line
    Label Label   Order Status:
    Combo Box Text Box OrderStatus   OrderStatus
    Label Label   Date Picked:
    Text Box Text Box DatePickedUp   DatePickedUp
    Label Label   Time Picked:
    Text Box Text Box TimePickedUp   TimePickedUp
    Label Label   Notes:
    Text Box Text Box txtNotes
    Button Button cmdClose Close

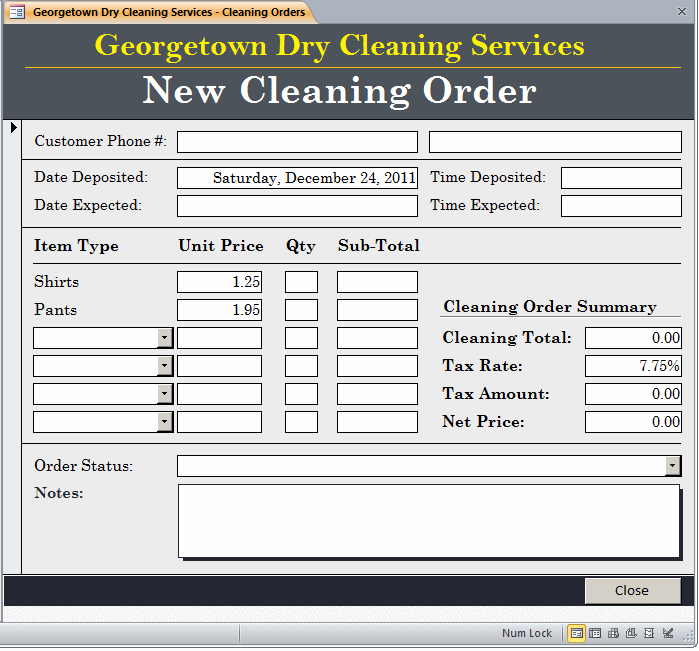

  54. Preview the form

    Georgetown Dry Cleaning Services - Cleaning Orders
  55. Save and close the form
  56. In the Navigation Pane, right-click the CleaningOrders form and click Copy
  57. Right-click any area of the Navigation Pane and click Paste
  58. Set the name to NewCleaningOrder
  59. Click OK

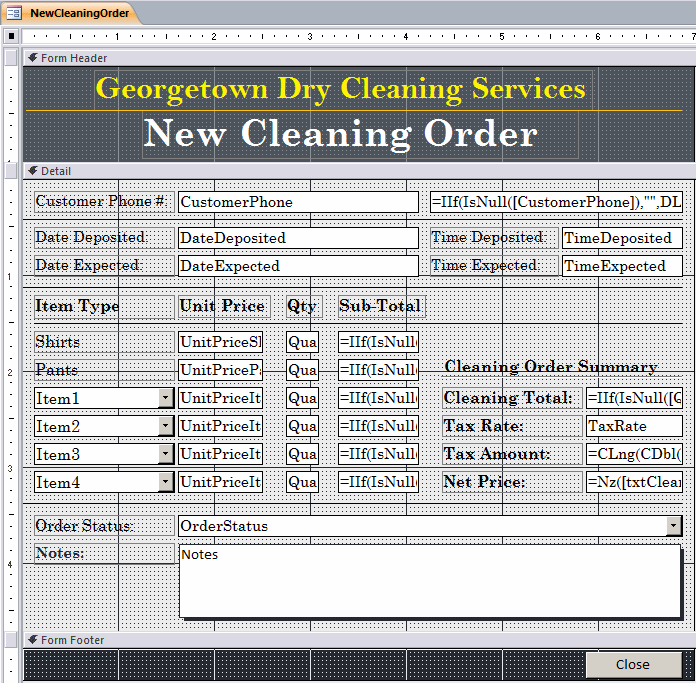

  60. In the Navigation Pane, right-click NewCleaningOrder and click Design View
  61. Using the Properties window, change the following properties:
    Navigation Buttons: No
    Data Entry: Yes

    Georgetown Dry Cleaning Services - New Cleaning Order
  62. Save and close the NewCleaningItem form




Application Simulation

A simulation allows us to test the tables and form with possible or actual values.

Practical Learning: Simulating the Application

  1. In the Navigation Pane, double-click the OrdersStatus table
  2. Create the following records:

    Order Status Notes
    Processing Cleaning Order The order is being processed and the items are not yet ready
    Ready For Pick Up The items have been cleaned and the customer can pick them up
    Processing (Problem With Order) This can signal any problem, such as a customer complaining about something
    Finalized (Picked Up) The items have been cleaned and the customer has picked them up
  3. Close the table
  4. In the Navigation Pane, double-click the NewCleaningItem form
  5. Create the following items (most dry cleaning store use the same price for shirts and another price for other types of items; they also have a third different type for comforters; just for fun, we are using different orices in our application):

    Item Name Unit Price
    Tie 1.25
    Coat 3.25
    Dress 2.45
    Jacket 3.15
    Swede 6.5
    Sweater 2.3
    Silk Shirt 2.25
    Comforter 19.95
    Women Suit 8.95
    Regular Skirt 2.35
    Men's Suit 2Pc 8.5
    Men's Suit 3Pc 9.95
    Skirt With Hook 2.4
  6. Close the NewCleaningItem form
  7. In the Navigation Pane, double the NewCustomer form

    Georgetown Dry Cleaning Services: New Customer
  8. Create the following records:

    First Name Last Name Phone Number
    James Newfield 240-210-2844
    Ahmed Adama 202-286-1117
    Catherine Lopez 301-840-0025
    Elliott Wuah 202-290-3740
    Annette Belsam 301-927-9475
    Edith Nwabugo 202-692-4079
  9. Close the NewCustomer form
  10. In the Navigation Pane, double-click the NewCleaningOrder form

    Georgetown Dry Cleaning Services - New Cleaning Order

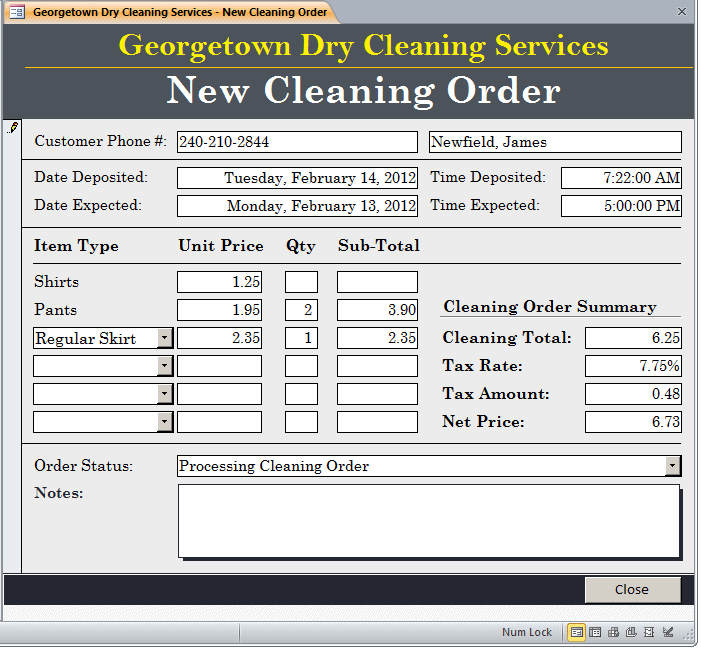

  11. Create a record as follows:
    Georgetown Dry Cleaning Services - New Cleaning Order

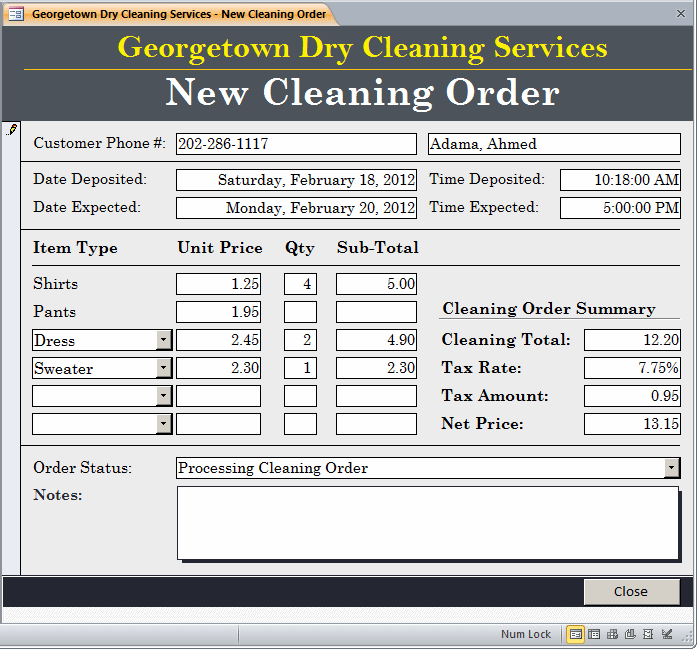

  12. Create another record as follows:
    Georgetown Dry Cleaning Services

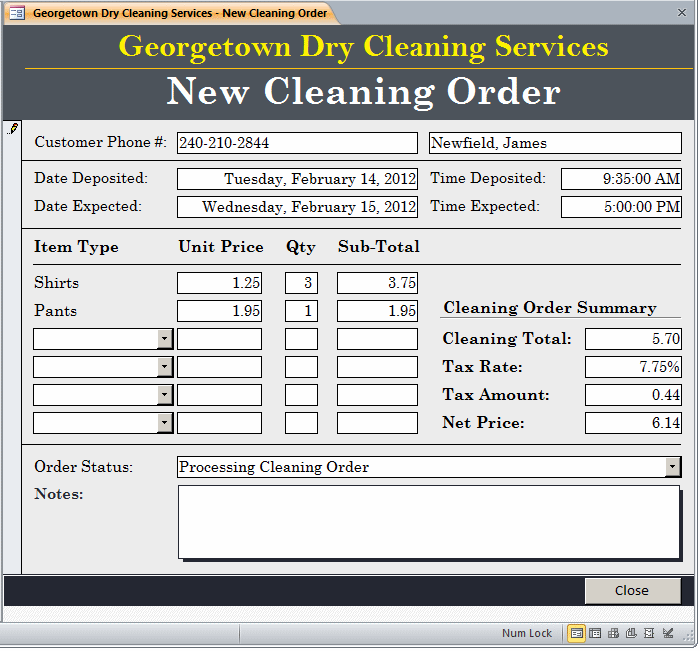

  13. Create another record as follows:
    Georgetown Dry Cleaning Services
  14. Close the NewCleaningOrder form





Home Copyright © 2010-2012 FunctionX Home
