The Properties of a Class



Overview of Properties



Introduction

Consider the beginning of a class as follows:

<%@ Page Language="VB" %>
<html>
<head>

<script language="VB" runat="server">
Public Class Circle
    Public rad As Double
End Class
</script>

<title>Exercise</title>

</head>
<body>

<%
    Dim circ As Circle = New Circle
    circ.rad = 25.84

    Response.Write(" -=- Circle Characteristics -=-<br />")
    Response.Write("Radius: " &  circ.rad)
%>

</body>
</html>

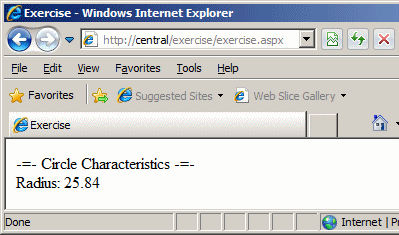

This would produce:

Properties

When you create the member variables of a class or of a structure, such as the above Radius of the Circle class, it is a good idea not to directly expose them to other parts of the program so that those other parts would not be able to easily change the values of the members and retrieve their values anyhow. This technique makes sure that a member variable is not accessed outside the class (or structure) so that the clients of the class (or structure) cannot directly influence the value of the member variable. To avoid this type of access, you can make the member variable(s) private. This would transform the above Circle class to the following:

Public Class Circle
    Private rad As Double

End Class

If you create a member variable as private but still want other classes (or structures) or procedures to access or get the value of such a member variable, you should then provide a means for members of the class to access that private member.

Accessories for Properties

A property is a member of a class that acts as an intermediary to a member variable of the class. For example, if you have a member variable of a class and that member represents the salary of an employee, a property can be the "door" that other procedures or classes that need the salary must present their requests to. As such, these external procedures and classes cannot just change the salary or retrieve it as they wish. A property can be used to validate their request, to reject or to accept them.

As mentioned already, a property is used to "filter" access to a member variable of a class. Therefore, you start by declaring a (private (if you don't make it private, you may be deceiving the purpose of creating a property)) member variable as we did for the rad member variable of the above Circle class.

Obviously, this private member variable cannot be accessed by a procedure or class outside of its class. Therefore, to let outside classes access this variable, you would/can create a property. To create a property, you use the Property keyword. With regards to their role, there are two types of properties.

Practical Learning Practical Learning: Introducing Properties

  1. Start Microsoft Visual Studio
  2. Create a Web Site named DeptStore3
  3. Make sure you select the Language as Visual Basic and click OK
  4. To create a new class, on the main menu, click Project -> Add New Item...
  5. In the Templates list, click Class
  6. Change the Name to DepartmentStore and make sure the Language is set to Visual Basic
  7. Click Add
  8. Read the message box and click Yes to store the class in the App_Data folder
  9. From what we know so far, type the following:

    Imports Microsoft.VisualBasic

    Public Class DepartmentStore
        Private pItemNo As String
        Private pCat As String
        Private pName As String
        Private pSize As String
        Private pPrice As Double
    End Class
  10. Save the file

Types of Properties



Read-Only Properties

A property is referred to as read-only if its role is only to make available the value of the member variable it represents. To create a read-only property, use a formula as follows (this formula takes into consideration only the keywords we have learned so far; there are other options that we choose to ignore at this time):

Public | Private | Protected ] [ ReadOnly ] [ Overloads | Overrides ] _
[ Overridable ] | Shadows | Shared ] Property PropName As PropType
   Get

   End Get
End Property

The optional Public, Private, or Protected keywords allow you to specify the level of access of the property. As introduced in the Lesson 11, the Public keyword would indicate that the property can be accessed outside of its class. The Private keyword would show that the property is available only to members of its class. The Protected keyword would indicate that the property can be accessed by either the members of its class or only the members of classes derived from it.

Shared: The optional Shared keyword would allow you to use the property without declaring an instance of its class.

ReadOnly: The ReadOnly keyword is used to indicate that the property's value can be accessed but it cannot be changed. If you are creating a read-only property, you must include the ReadOnly keyword.

The Property keyword is required. It is followed by the name of the property. The name essentially follows the rules of Visual Basic object names. The Get keyword, the End Get and the End Property lines are also required.

Here is an example:

Public Class Circle
    ' This is a new property
    Public ReadOnly Property Radius()
        Get

        End Get
    End Property
End Class

Notice that we omitted the As keyword and the data type of the property. If you don't specify the data type, the property is treated as Object. Otherwise, you can specify the necessary data type of the property. Here is an example:

Public Class Circle
    ' This is a new property
    Public ReadOnly Property Radius() As Double
        Get

        End Get
    End Property
End Class

Between the Get and the End Get lines, you can implement the behavior that would be used to make the member variable's value available outside. The simplest way consists of just returning the corresponding member variable. To do this, type the Return keyword, followed by the hidden member variable whose value would be accessed through this property. Here is an example:

Public Class Circle

    Private rad As Double

    ' This is a new property
    Public ReadOnly Property Radius() As Double
        Get
            Return rad
        End Get
    End Property

End Class

When the clients of a class access a read-only property, they can only retrieve the value of the property but they cannot change it. Therefore, if you create a read-only property, you should provide the users with the ability to primarily specify the value of the member variable. To do this, you can create an appropriate method whose role would only be used to initialize the property. Most of the time, you would use a constructor to do this. Here is an example of  such a constructor used to initialize a read-only property:

Public Class Circle

    Private rad As Double

    Public Sub New(ByVal r As Double)
        rad = r
    End Sub

    ' This is a new property
    Public ReadOnly Property Radius()
        Get
            Return rad
        End Get
    End Property

End Class

Once a read-only property has been created, other classes or procedures can access it, for example they read its value as follows:

<%@ Page Language="VB" %>
<html>
<head>

<script language="VB" runat="server">
Public Class Circle

    Private rad As Double

    Public Sub New(ByVal r As Double)
        rad = r
    End Sub

    ' This is a new property
    Public ReadOnly Property Radius()
        Get
            Return rad
        End Get
    End Property

End Class
</script>

<title>Exercise</title>

</head>
<body>

<%
    Dim circ As Circle = New Circle(25.84)

    Response.Write(" -=- Circle Characteristics -=-<br />")
    Response.Write("Radius: " &  circ.rad)
%>

</body>
</html>

This would produce the same result as previously.

We described a property as serving as a door from outside to its corresponding member variable, preventing those outside classes, structures, or procedures to mess with the member variable. Notice that the Square class was given a negative value for the member variable, which is usually unrealistic for the side of a square. In this case and others, while still protecting the member variable as private, you can use the read property to reset the value of the member variable or even to reject it. To provide this functionality, you can create a conditional statement in the property to perform a checking process. Here is an example:

<%@ Page Language="VB" %>
<html>
<head>

<script language="VB" runat="server">
Public Class Circle

    Private rad As Double

    Public Sub New()
        rad = 0
    End Sub

    Public Sub New(ByVal r As Double)
        rad = r
    End Sub

    Public ReadOnly Property Radius()
        Get
            If rad < 0 Then Return 0
            ' else is implied
            Return rad
        End Get
    End Property

End Class
</script>

<title>Exercise</title>

</head>
<body>

<%
    Dim circ As Circle = New Circle(-64.25)

    Response.Write(" -=- Circle Characteristics -=-<br />")
    Response.Write("Radius: " &  circ.Radius & "<br />")

    circ = New Circle(38.18)

    Response.Write(" -=- Circle Characteristics -=-<br />")
    Response.Write("Radius: " &  circ.Radius)
%>

</body>
</html>

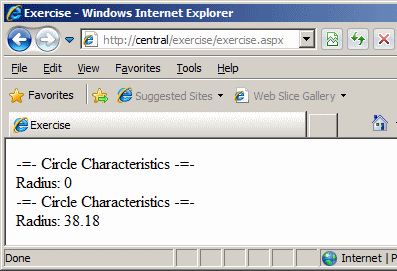

This would produce:

Properties

Practical LearningPractical Learning: Creating Property Readers

  1. To create read-only properties, change the contents of the DepartmentStore file as follows:

    Public Class DepartmentStore
        Private pItemNo As String
        Private pCat As String
        Private pName As String
        Private pSize As String
        Private pPrice As Double

        Public Sub New(ByVal nbr As String, ByVal ctg As String, _
                       ByVal nme As String, ByVal siz As String, _
                       ByVal prc As Double)
            pItemNo = nbr
            pCat = ctg
            pName = nme
            pSize = siz
            pPrice = prc
        End Sub

        ' A property for store number of a merchandise
        Public ReadOnly Property ItemNumber() As String
            Get
                If pItemNo = "" Then
                    Return "Invalid Item"
                Else
                    Return pItemNo
                End If
            End Get
        End Property

        ' A property for type of a merchandise
        Public ReadOnly Property Category() As String
            Get
                If pCat= "" Then
                    Return "Unknown Category"
                Else
                    Return pCat
                End If
            End Get
        End Property

        ' A property for the name of a merchandise
        Public ReadOnly Property ItemName() As String
            Get
                If pName = "" Then
                    Return "Item no Description"
                Else
                    Return pName
                End If
            End Get
        End Property

        ' A property for size of a merchandise
        Public ReadOnly Property Size() As String
            Get
                If pSize = "" Then
                    Return "Unknown Size or Fits All"
                Else
                    Return pSize
                End If
            End Get
        End Property

        ' A property for the marked price of an item
        Public ReadOnly Property UnitPrice() As Double
            Get
                If pPrice.Equals(0) Then
                    Return 0.0
                Else
                    Return pPrice
                End If
            End Get
        End Property
    End Class
  2. In the Solution Explorer, right-click Default.aspx and click Rename
  3. Type it index.aspx and press Enter
  4. In the Solution Explorer, double-click index.aspx
  5. Change its file as follows:

    <%@ Page Language="VB"
             AutoEventWireup="false"
             CodeFile="index.aspx.vb"
             Inherits="_Default" %>

    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
    "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

    <html xmlns="http://www.w3.org/1999/xhtml">
    <head runat="server">
    <title>Department Store</title>
        <style type="text/css">
            .style1
            {
                width: 300px;
            }
        </style>
    </head>
    <body>

    <h2>=#=#= Customer Invoice =#=#=</h2>
    <form id="frmDepartmentStore" runat="server">
      <div>
        <table class="style1">
          <tr>
            <td>Item Number:</td>
            <td>
              <asp:TextBox ID="txtItemNumber" runat="server"></asp:TextBox>
            </td>
         </tr>
         <tr>
            <td>Category:</td>
            <td>
              <asp:TextBox ID="txtCategory" runat="server"></asp:TextBox>
            </td>
         </tr>
         <tr>
            <td>Description:</td>
            <td>
              <asp:TextBox ID="txtDescription" runat="server"></asp:TextBox>
            </td>
         </tr>
         <tr>
                    <td>Item Size:</td>
                    <td>
               <asp:TextBox ID="txtItemSize" runat="server"></asp:TextBox>
            </td>
          </tr>
          <tr>
            <td>Unit Price:</td>
            <td>
              <asp:TextBox ID="txtUnitPrice" runat="server"></asp:TextBox>
            </td>
          </tr>
          <tr>
            <td>Quantity:</td>
            <td>
              <asp:TextBox ID="txtQuantity" runat="server"></asp:TextBox>
            </td>
          </tr>
          <tr>
            <td>Total Price:</td>
            <td>
              <asp:TextBox ID="txtTotalPrice" runat="server"></asp:TextBox>
            </td>
          </tr>
        </table>
      </div>
    </form>
    </body>
    </html>
  6. Double-click an unoccupied area of the form to launch the Load event of the page
  7. Implement it as follows:

    Partial Class _Default
        Inherits System.Web.UI.Page

        Protected Sub Page_Load(ByVal sender As Object, _
                                ByVal e As System.EventArgs) Handles Me.Load
            Dim store As DepartmentStore = _
        New DepartmentStore("53564", "Men", _
                                        "Khaki Pants Sahara", "34", 24.95)
            Dim Quantity As Integer = 4
            Dim TotalPrice As Double = store.UnitPrice * Quantity

            txtItemNumber.Text = store.ItemNumber
            txtCategory.Text = store.Category
            txtDescription.Text = store.ItemName
            txtItemSize.Text = store.Size
            txtUnitPrice.Text = store.UnitPrice.ToString("C")
            txtQuantity.Text = Quantity
            txtTotalPrice.Text = TotalPrice.ToString("C")

        End Sub
    End Class

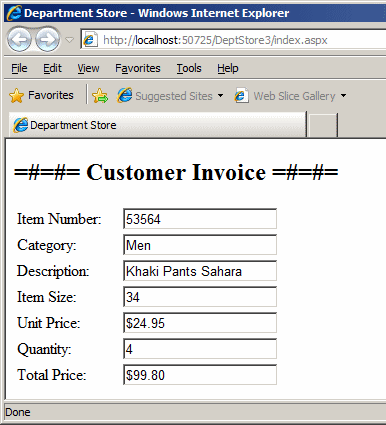

  8. Execute the program to see the result

    Department Store
  9. Return to your programming environment






Write-Only Properties

In our Square class so far, we were using a constructor to initialize the value of the member variable. This meant that we had to always make sure that we knew the value of the member variable when we declared an instance of the class. We implemented the Radius property as read-only and the clients of the Square class could only read the value of the member variable. In some cases, you may not want those external procedures or classes to read the value but only to be able to change it. To provide this functionality, you can create a property that is referred to as write-only.

A property is called write-only if the clients of the class can change the value of that property but cannot read. The formula to create a write-only property is (once again, this formula mentions only the keywords we have reviewed so far):

Public | Private | Protected ] _
[ WriteOnly ] [ Overloads | Overrides ] _
[ Overridable ] | Shadows | Shared ] Property PropName As PropType
   Set(ByVal value As DataType )

   End Set
End Property

The WriteOnly keyword is used to indicate that the property's value can be changed by the clients of the class but they cannot change it. If you are creating a write-only property, you must include the WriteOnly keyword.

To allow clients of a class to be able to change the value of the property, the Set statement takes an argument. Here is an example:

Public Class Circle

    Private rad As Double

    Public Sub New()
        rad = 0
    End Sub

    Public Sub New(ByVal r As Double)
        rad = r
    End Sub

    Public WriteOnly Property Radius() As Double
        Set(ByVal Value As Double)

        End Set
    End Property

End Class

The minimum operation you can perform with a write-only property is to assign it a value that would be provided by the outside world. To do this, you can assign the value of the Set argument to the corresponding member variable that the property represents. Here is an example:

Public Class Circle

    Private rad As Double

    Public Sub New()
        rad = 0
    End Sub

    Public Sub New(ByVal r As Double)
        rad = r
    End Sub

    Public WriteOnly Property Radius() As Double
        Set(ByVal Value As Double)
            rad = Value
        End Set
    End Property

End Class

As you see, clients of a class can change the corresponding member variable of a member variable through the Set property writer.

Read/Write Properties

You may have realized that, if you create a read-only property without the ability to write to it, the clients of a class can only get the value of the property. On the other hand, a write-only property restricts the ability to read the value it holds. In some rare cases, you can keep these two functionalities separate. In most cases, when creating a property, you would want its role to serve as a complete "door" through which the clients of a class can read or change the value of its hidden member variable. Such a property is create with read-write capabilities.

A property is referred to as read-write if it allows external classes, structures, and procedures to either change its value or to read that value when necessary. To create a read-write property, you must implement both the Get and the Set statements. The formula to follow would be:

Public | Private | Protected ] [ Overloads | Overrides ] _
[ Overridable ] | Shadows | Shared ] Property PropName As PropType
   Get

   End Get

   Set(ByVal value As DataType )

   End Set
End Property

Notice that, because this is a read-write property, you omit the ReadOnly and the WriteOnly keywords. When implementing the property, provide the necessary functionality in the Get and Set statements as we reviewed in the respective above sections. Here is an example:

<%@ Page Language="VB" %>
<html>
<head>

<script language="VB" runat="server">
Public Class Circle

    Private ReadOnly PI As Double = 3.14158
    Private rad As Double

    Public Sub New()
        rad = 0
    End Sub

    Public Sub New(ByVal r As Double)
        rad = r
    End Sub

    Public Property Radius() As Double
        Get
            If rad < 0 Then
                Return 0
            Else
                Return rad
            End If
        End Get

        Set(ByVal Value As Double)
            rad = Value
        End Set
    End Property

    Public ReadOnly Property Diameter() As Double
        Get
            Return rad * 2
        End Get
    End Property

    Public ReadOnly Property Circumference() As Double
        Get
            Return Diameter * PI
        End Get
    End Property

    Public ReadOnly Property Area() As Double
        Get
            Return rad * rad * PI
        End Get
    End Property

End Class
</script>

<title>Exercise</title>

</head>
<body>

<%
    Dim circ As Circle = New Circle(64.25)

    Response.Write(" -=- Circle Characteristics -=-<br />")
    Response.Write("Radius: " & circ.Radius & "<br />")
    Response.Write("Diameter: " & circ.Diameter & "<br />")
    Response.Write("Circumference: " & circ.Circumference & "<br />")
    Response.Write("Area: " & circ.Area & "<br />")
%>

</body>
</html>

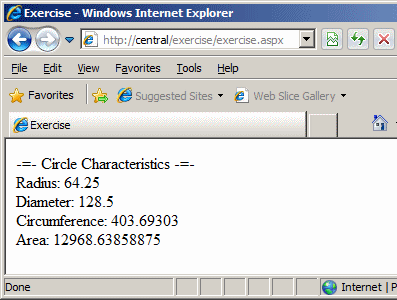

This would produce:

Properties

Practical LearningPractical Learning: Creating Read/Write Properties

  1. Access the DepartmentStore file
  2. To create read-write properties and complete the program, change the content of the file as follows:

    Imports Microsoft.VisualBasic

    Public Class DepartmentStore
        Private pItemNo As String
        Private pCat As String
        Private pName As String
        Private pSize As String
        Private pPrice As Double

        Public Sub New(ByVal nbr As String, ByVal ctg As String, _
                       ByVal nme As String, ByVal siz As String, _
                       ByVal prc As Double)
            pItemNo = nbr
            pCat = ctg
            pName = nme
            pSize = siz
            pPrice = prc
        End Sub

        ' A property for store number of a merchandise
        Public Property ItemNumber() As String
            Get
                If pItemNo = "" Then
                    Return "Invalid Item"
                Else
                    Return pItemNo
                End If
            End Get

            Set(ByVal Value As String)
                pItemNo = Value
            End Set
        End Property

        ' A property for type of a merchandise
        Public Property Category() As String
            Get
                If pCat = "" Then
                    Return "Unknown Category"
                Else
                    Return pCat
                End If
            End Get

            Set(ByVal Value As String)
                pCat = Value
            End Set
        End Property

        ' A property for the name of a merchandise
        Public Property ItemName() As String
            Get
                If pName = "" Then
                    Return "Item no Description"
                Else
                    Return pName
                End If
            End Get

            Set(ByVal Value As String)
                pName = Value
            End Set
        End Property

        ' A property for size of a merchandise
        Public Property Size() As String
            Get
                If pSize = "" Then
                    Return "Unknown Size or Fits All"
                Else
                    Return pSize
                End If
            End Get

            Set(ByVal Value As String)
                pSize = Value
            End Set
        End Property

        ' A property for the marked price of an item
        Public Property UnitPrice() As Double
            Get
                If pPrice = 0 Then
                    Return 0.0
                Else
                    Return pPrice
                End If
            End Get

            Set(ByVal Value As Double)
                pPrice = Value
            End Set
        End Property
    End Class
  3. Save the file
  4. Access the browser and to refresh it
  5. Return to your programming environment

Built-In Properties



Introduction

To assist you with your various programming tasks, the Visual Basic language provides many built-in classes that are equipped with many properties.

To find out the date of the system clock of the computer on which your application is running, you can access a property named Today. This property is of type Date:

Public Property Today() As DateTime





Home Copyright © 2009-2010 FunctionX, Inc.
