C++ Builder Forms



Characteristics of Forms



Introduction

The form is the primary object of a VCL application. It is rectangular window whose main purpose is to carry, host, or hold other controls to allow the user to interact with the computer. Although there are various types of parent containers we will use, the form is the commonly and regularly used.

When C++ Builder starts, it creates a starting form and initializes an application. You can use such as form as you see fit. If you need additional forms, you can create them visually by clicking File -> New -> Form on the main menu. You can also click the New Form button on the Standard toolbar. Alternatively, you can display the New Items dialog box from where you would select the Form icon.

Another technique you can use is to create a form programmatically. To do this, declare a pointer to the TForm class using the new operator. Like every other control, you must specify the owner of the form that will be responsible for destroying it. This owner is usually the form that is calling it

The System Icon

The top section of a form or a dialog box is called a title bar:

On the left side of the form's title bar, there is a small picture called an icon. By default, C++ Builder uses an icon shipped with the compiler. If you want to use your own icon, you can specify it using the Icon property. To do this, on the Object Inspector, you can either double-click the (None) value of the Icon field or click the ellipsis button of the field. This would call the Picture Editor dialog box:

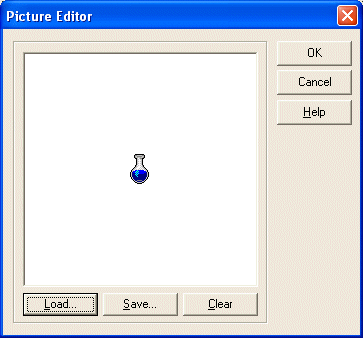

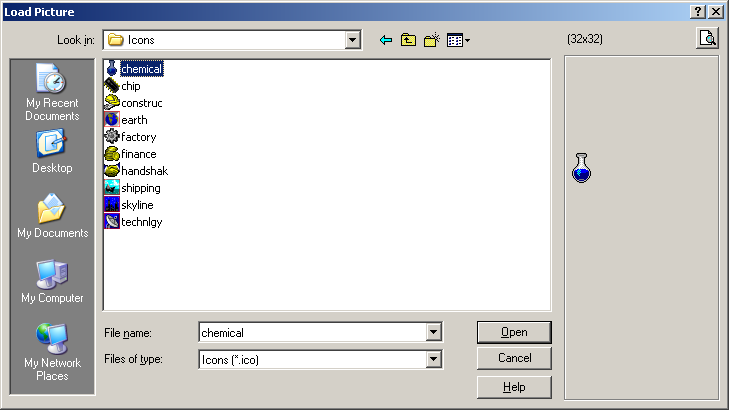

After selecting the icon and clicking Open, the icon would be made available in the Picture Editor dialog box:

After clicking OK, the new icon would be used as the system icon of the form:

The System Menu

The icon used on the title bar possesses a menu called the system menu. This menu displays if you click the icon:

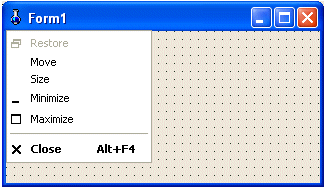

The system menu of the icon's title bar allows you to perform the common actions of a regular Windows form. If you do not want to display the icon and its menu, refer to the section on the BorderIcons below.

The Caption

On the right side of the system icon, there is long bar that is actually usually referred to as the title bar. This section displays a word or a group of words known as the caption of the form. By default, the title bar displays the name of the form. To customize the text displayed on the title bar, on the Object Inspector, change the text of the Caption property.

At design time, you can only set the caption as text. The caption can be any type of string. At run time, you can control and programmatically display anything on the caption of the form. It can consist of an expression or the result of a calculation. To change the caption at run time, you can use a function, a method, or an event. Just type ďCaption = ď and the sentence you want. For example, you can display todayís date on the caption as follows:

//---------------------------------------------------------------------------
void __fastcall TForm1::ChangingFormCaption()
{
    Caption = "Today is " + Date();
}
//---------------------------------------------------------------------------

You can also indirectly control the caption. For example, after the user has typed his or her name in an edit box, you can display it in the formís caption as follows:

//---------------------------------------------------------------------------
void __fastcall TForm1::ChangingFormCaption()
{
    Caption = Edit1->Text;
}
//---------------------------------------------------------------------------

 The System Buttons

On the right side caption, there are three system buttons that allow minimizing , maximizing , restoring or closing the form as a window. The presence, absence, or appearance of the system buttons is controlled by the BorderIcons property. To control this property, you can click its + button to expand it to display its four possible values: biSystemMenu, biMinimize, biMaximimize, and biHelp:

The BorderIcons property is a (Pascal-style) set, which means it can use one or more values in any allowed combination. Each member of the set can have a true or false value. If you set the biSystemMenu property to true, regardless of the values of the other fields of the BorderIcons property, the form would have neither the system icon (which also makes the system menu unavailable) nor the system buttons. If a form does not have a system close button, you should make sure the user has a way to close the form:

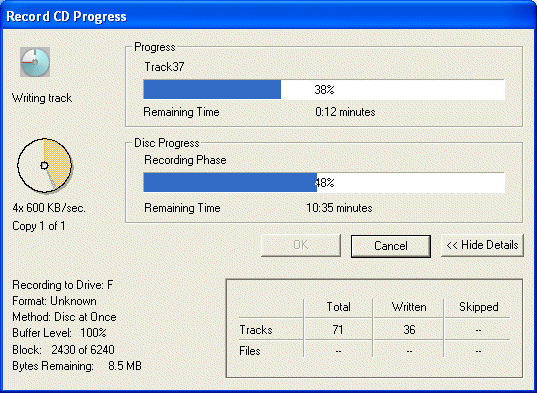

This dialog box does not present system buttons. The user would not have any inherent way to close it unless the programmer explicitly presents a button to close it, which was taken care of by the presence of the OK and Cancel buttons. Figure 26: A window without the system buttons

Using a combination of the biSystemMenu, the biMinimize and the biMaximimize properties, you can control the availability of the system buttons:

biSystemMenu = false

Notice that there is no system button

biSystemMenu = true
biMinimize = false
biMaximize = true

Notice that the Minimize button is disabled

biSystemMenu = true
biMinimize = true
biMaximize = false

Notice that the Maximize button is disabled

biSystemMenu = true
biMinimize = true
biMaximize = true

Both the Minimize and Maximize buttons are enabled

biSystemMenu = true
biMinimize = false
biMaximize = false

Notice that only the system Close button is available

Author Note

The biHelp property works only if the form is a dialog box. It does not bear any role on the title bar of a regular form

You can also programmatically control the system buttons. Since the BorderIcons property is a set, you must use the overloaded extractor operators. To remove or set a property to false, use the >> operator. To include or set a property to true, use the << operator. For example, to set the biSystemMenu property to false, you can use code such as:

biSystemMenu = false

is equivalent to:

//---------------------------------------------------------------------------
__fastcall TForm1::TForm1(TComponent* Owner)
: TForm(Owner)
{
    BorderIcons = TBorderIcons() >> biSystemMenu;
}
//---------------------------------------------------------------------------

biSystemMenu = true
biMinimize = false
biMaximize = true

is equivalent to:

//---------------------------------------------------------------------------
__fastcall TForm1::TForm1(TComponent* Owner)
: TForm(Owner)
{
    BorderIcons = TBorderIcons() << biSystemMenu >> biMinimize << biMaximize;
}
//---------------------------------------------------------------------------

biSystemMenu = true
biMinimize = true
biMaximize = false

is equivalent to:

//---------------------------------------------------------------------------
__fastcall TForm1::TForm1(TComponent* Owner)
: TForm(Owner)
{
    BorderIcons = TBorderIcons() << biSystemMenu << biMinimize >> biMaximize;
}
//---------------------------------------------------------------------------

biSystemMenu = true
biMinimize = false
biMaximize = false

is equivalent to:

//---------------------------------------------------------------------------
__fastcall TForm1::TForm1(TComponent* Owner)
: TForm(Owner)
{
    BorderIcons = TBorderIcons() << biSystemMenu >> biMinimize >> biMaximize;
}
//---------------------------------------------------------------------------

If you do not explicitly define the values of the BorderIcons, by default, the form would be equipped with all system buttons.



Form and Dialog Box Positioning

One of the ways you can use the title bar is to move the form at design time. The location of a form is set at design time because the VCL provides another property that follows the directives of the design. At design time, you can position the form anywhere on your screen and when you run the application, the form would appear following that position. This is based on the fact that the position of the form is controlled by the TPosition enumerator. The default position of the form is recognized as the way it was designed if you do not change the Position property. The default value of the Position property is poDesigned.



  The Borders



One of the most visual aspects of an object's appearance is its border. A border is a line that sets the visual limits of an object. Most objects, including a form, have four borders: left, top, right, and bottom. In VCL applications, the borders of a form are controlled by a property called BorderStyle. This is also the main property that specifies whether you are creating a regular form or a dialog box.

To control the appearance of the borders of your form, on the Object Inspector, if you click BorderStyle, you would see that it is a combo box property. The BorderStyle property is an enumerator and you can choose one of its values needed for your form.

By default, a form is designed to be resizable using the bsSizeable value. In this case the user can change its width and its height by dragging one of its borders or corners.

A dialog box created from a form

If you set the BorderStyle property to bsDialog, the user will not be able to resize the dialog. This is the default and the mostly used characteristics for a dialog window. You should always use it if you want the window to be a dialog box.

A dialog box with the Whats This button

If you set the BorderStyle property to bsDialog and have a Help file you want to use on the dialog box, you can set the biHelp of the BorderIcons property to true. This would display a Whats This button on the title bar.

A BorderStyle set with bsSingle looks like one set with the bsSizeable. The difference is that the user cannot resize it.

A Single style form
A non-resizable tool window

A floating window is a form used to let the user move it around while she is working on the main form or dialog. This form is usually modeless, which means the user does not have to close it to continue working. If you want to create a floating modeless window, you should set the formís BorderStyle to bsSizeToolWin. The window has a short title bar and it can be resized.

Like the sizable tool window, a form with bsToolWindow has a short title bar and is also a prime candidate for a floating window. Unlike the form with bsSizeToolWin, the user cannot resize a bsToolWindow form.

A resizable tool window
A Border-less form

A Form whose BorderStyle is set to bsNone has neither a title bar nor borders.

To change a property programmatically, assign one of the above values to the BorderStyle variable. Here is an example that would transform the form in a dialog box:

//---------------------------------------------------------------------------
__fastcall TForm1::TForm1(TComponent* Owner)
: TForm(Owner)
{
    BorderStyle = bsDialog;
}
//---------------------------------------------------------------------------

The Window State of a Form

When a form appears as it was designed, it is said to be "normal". C++ Builder allows you to have the form minimized or maximized when the application is launched. This ability is controlled by the WindowState property. The default value of this property is wsNormal, which means the form would appear in a normal fashion. If you want the form to be minimized or maximized at startup, in the Object Inspector, select the desired value for the WindowState property.

To control the windowís state programmatically, simply assign the wsMaximized or the wsMinimized value to the WindowState property. Here is an example:

//---------------------------------------------------------------------------
void __fastcall TForm1::FormCreate(TObject *Sender)
{
	WindowState = wsMaximized;
}
//---------------------------------------------------------------------------

If you want to check the state of a window before taking action, simply use a conditional statement to compare its WindowState property with the wsNormal, the wsMaximized, or the wsMinimized values. Here is an example:

//---------------------------------------------------------------------------
void __fastcall TForm1::Panel1Click(TObject *Sender)
{
	if( WindowState == wsNormal )
		WindowState = wsMaximized;
	else if( WindowState == wsMaximized )
		WindowState = wsMinimized;
	else
		WindowState = wsMaximized;
}
//---------------------------------------------------------------------------

  The Body of a Form or a Dialog Box

The area that a form makes available to its control is its body. As the main container of Windows controls, a form provides some particular properties to the controls it hosts. The client area of a form is represented by the ClientRect property. This property can be used to get the dimensions of the body of the form. Like the TControl::ClientRect property, the TForm::ClientRect property provides the width and the eight of the client area, omitting the location (left and top) which is set to the client origin (0, 0) located on the top-left corner of the body of the form. Alternatively, to get the width of the client area of the form, you can call the ClientWidth property. To get the height of the client area, use the ClientHeight. The client aspects can be illustrated as follows:

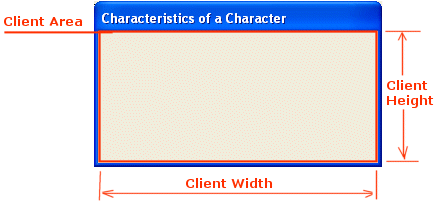

Overall, you will hardly be concerned with the dimensions of the client area, unless you want to draw or render an image. If you do not have a particular reason, let C++ Builder take care of the client area.



  Formís Transparency

An object is referred to as transparent when you can see through it. If you are working under Windows 2000 or later running on a Pentium or equivalent, you can make your form transparent. To create a transparent form, set the AlphaBlend Boolean property to true from its default false value. Once this property is set to true, you can use the AlphaBlendValue property to set the degree of transparency. The value must be a BYTE integer between 0 and 255. At 0, you would not see the form at all. The only presence of the form would be on the taskbar. At 255, the form would appear as if the property were not applied.



Form Methods



  Form Creation

The form in implemented by the TForm class which itself is derived from TCustomForm. Like every other control, the form is equipped with a constructor that allows you to dynamically create it.



  Form Closure

When the user has finished using a form, he or she must be able to close it. Closing a form is made possible by a simple call to the Close() method. Its syntax is:

void __fastcall Close();

Although this method can be used to close any form of an application, if it is called by the main form, it also closes the application.



Forms Messages and Events



  Form Creation

When an application made of a form is launched, the form must be created to display to the user. At the form gets created, it initialize its controls. This is done before the form can display to the screen. At this time the OnCreate() event fires. This is a TNotifyEvent event, which means that it does not take any argument other than the Sender, which is a TObject type.

OnCreate() is the default event of a form. This means that if you double-click the form, the code of this event would be created and made ready for you.

//---------------------------------------------------------------------------
void __fastcall TForm1::FormCreate(TObject *Sender)
{
	ShowMessage("The form has been created");
}
//---------------------------------------------------------------------------

  Form Showing



After the form has been created, it must display to the user. If the application contains more than one form, you can display it. To display a form, just like any control, we saw that the TControl::Show() method must be called. If the application is being launched, it would call this method to display the main form of the application. If you have more than one form and you want to display the other form, you can call the TControl::Show() method.

When the TControl::Show() method is called, the OnShow() event is fired. This allows you to perform any last minute processing before the form can display.

//---------------------------------------------------------------------------
void __fastcall TForm1::FormShow(TObject *Sender)
{
	ShowMessage("The form is showing");
}
//---------------------------------------------------------------------------

  Form Activation and Deactivation

When two or more forms are running on the computer, only one can receive input from the user, that is, only one can actually be directly used at one particular time. Such a window has a title bar with the color identified in Control Panel as Active Window. The other window(s), if any, display(s) its/their title bar with a color called Inactive Window:

To manage this setting, the windows are organized in a 3-dimensional coordinate system and they are incrementally positioned on the Z coordinate, which defines the (0, 0, 0) origin on the screen (on the top-left corner of your monitor) with Z coordinate coming from the screen towards you.

In order to use a form other than the one that is active, it must be activated. To do this, the OnActivate() event must be fired. OnActivate() is a TNotifyEvent event.

If there is more than one form or application on the screen, only one can be in front of the others and be able to receive input from the others. If a form is not active and you want to bring it to the top, you must activate it, which sends the OnActivate() event. When a form is being activated, the one that was on top would become deactivated. The form that was on top, when losing focus, would fire the OnDeactivate() event.

//---------------------------------------------------------------------------
void __fastcall TForm1::FormActivate(TObject *Sender)
{
	ShowMessage("The form is now activated");
}
//---------------------------------------------------------------------------
void __fastcall TForm1::FormDeactivate(TObject *Sender)
{
	ShowMessage("Our form is deactivated");
}
//---------------------------------------------------------------------------

  Window Painting

Whether a form has just been created or it needs to be shown, the operating system must display it on the screen. To do this, the form colors and other visual aspects must be retrieved and restored. This is done by painting it (the form). If the window was hidden somewhere such as behind another window or was minimized, when it comes up, the operating system needs to paint it.

When a form gets painted, it fires the OnPaint() event. This event also is a TNotifyEvent type.

//---------------------------------------------------------------------------
void __fastcall TForm1::FormPaint(TObject *Sender)
{
	ShowMessage("Window Painting: A hobby or a habit?");
}
//---------------------------------------------------------------------------

  Window Sizing

When using an application, one of the actions a user can perform on a form is to change its size, provided the form allows it. Also, some time-to-time, if possible, the user can minimize, maximize, or restore a window. Whenever any of these actions occur, the operating system must keep track of the location and size of a window. For example, if a previously minimized or maximized window is being restored, the operating system must remember where the form was previously positioned and what its dimensions were.

When the size of a form has been changed, it fires the OnResize() event, which is a TNotifyEvent type.

//---------------------------------------------------------------------------
void __fastcall TForm1::FormResize(TObject *Sender)
{
	ShowMessage("Changing size or changing sides - Who knows?");
}
//---------------------------------------------------------------------------


  Form Closure

As mentioned above, the user can close the form after using it. When the form is being closed, it fires the OnClose() event. This gives you the opportunity to perform any last minute processing such as finding out some information about the application or the form itself before the form is actually closed. The OnClose() event is a TCloseEvent function pointer whose syntax is:

void __fastcall OnClose(TObject *Sender, TCloseAction &Action)

When the form is being closed, you can use the Action argument to specify how you want the closing to be performed. This argument is a value of the TCloseAction enumerator whose members are:

Value Description
caNone The form must not be closed at all
caHide The form must be hidden but not closed
caFree The form must be closed and its memory freed
caMinimize The form must be minimized and not closed



//---------------------------------------------------------------------------
void __fastcall TForm1::FormClose(TObject *Sender, TCloseAction &Action)
{
	ShowMessage("Time to close");
}
//---------------------------------------------------------------------------


  Form Destruction

Once the form has been closed, the operating system must destroy it and reclaim the memory space it was using. This causes the OnDestroy() event to fire. OnDestroy() is a TNotifyEvent. If you had dynamically created some controls using the formís OnCreate() event, use the OnDestroy() event to destroy them.
