VCL Controls: The Label



Introduction to Labels



Description

C++Builder ships with many string-oriented classes for most of the controls used to perform any necessary string manipulation. AnsiString is the main string classes used by those controls as it provides the caption property of all controls that need to set or control their caption. The label is one of those controls.

A label is a control that serves as a guide to the user. It provides static text that the user cannot change but can read to get information on the form. The programmer can also use it to display simple information to the user. Most controls on the form are not explicit at first glance and the user would not know what they are. Therefore, you can assign a label to a control as a help to the user.

Practical LearningPractical Learning: Introducing Labels

  1. Start Embarcadero RAD Studio
  2. To create a new application, on the main menu, click File -> New -> VCL Forms Application - C++Builder
  3. In the Object Inspector, change the proeprties of the form as follows:
    Caption: Elementary Addition
    Name: frmCalculation





Creating a Label

To add a label to a container, click the Label button from the Standard section of the Tool Palette and click on the object that would host it. You can also dynamically create a label.

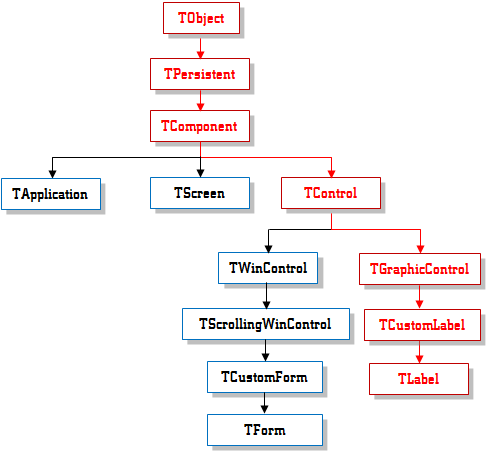

A label is based on the TLabel class that is a child of the TCustomLabel class which itself is derived from the TGraphicControl class:

TLabel Inheritance

To dynamically create a label locally, in a function or an event, declare a pointer to TLabel object and use the new operator, specify the component that owns the instance of the control. To initiate the control, you must specify its container or parent. Here is an example:

//---------------------------------------------------------------------------
void __fastcall TForm1::Button1Click(TObject *Sender)
{
	TLabel* Lbl = new TLabel(Form1);
	Lbl->Parent = Form1;
}
//---------------------------------------------------------------------------

Practical LearningPractical Learning: Creating Labels

  1. In the Tool Palette, click Standard
  2. Click the TLabel icon TLabel
  3. Click the form

Characteristics of a Label



The Caption of a Label

The most important characteristic of a label control is the text it displays. This is what the user would read. The text of a label is its Caption property and is its default. To set a labelís caption, after adding the control to a container, click Caption in the Object Inspector and type the desired value. As we mentioned when studying controls characteristics, at design time, the text you type in the Caption is considered ďas isĒ. If you want to create a more elaborate and formatted string, you would have to do it programmatically. Here is an example:

//---------------------------------------------------------------------------
void __fastcall TForm1::Button1Click(TObject *Sender)
{
	TLabel* Lbl = new TLabel(Form1);
	Lbl->Parent = Form1;
	Lbl->Caption = "LaFace, Inc.";
}
//---------------------------------------------------------------------------

Practical LearningPractical Learning: Captioning the Labels

  1. On the form, click the first label
  2. In the Object Inspector, click Caption and type 00
  3. Click Name and type lblOperand1

Caption Alignment

By default, the caption of a label is positioned starting on the left side of its allocated rectangle. Alternatively, you can position it to the center or the right side inside of its rectangle. This positioning is controlled by the Alignment property which is based on the TAlignment enumerator. It can have the following values:

taLeftJustify taCenter taRightJustify
Alignment Alignment





Practical LearningPractical Learning: Aligning the Captions

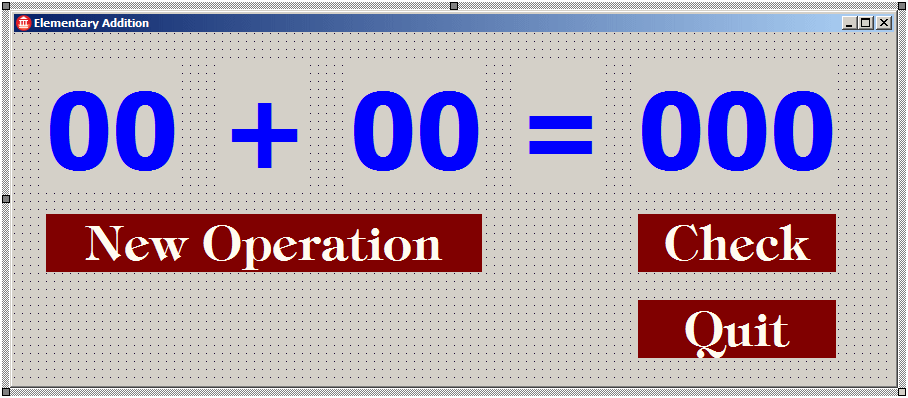

  1. Complete the design of the form as follows:

    Elementary
    Control Alignment Caption Color Font Name
    TLabel TLabel   00 clBlue Color: clBlue
    Name: Tahoma
    Size:   78
    Font style: Bold
    lblOperand1
    TLabel TLabel   + clBlue Color: clBlue
    Name: Tahoma
    Size:   78
    Font style: Bold
    lblOperation
    TLabel TLabel   00 clBlue Color: clBlue
    Name: Tahoma
    Size:   78
    Font style: Bold
    lblOperand2
    TLabel TLabel   = clBlue Color: clBlue
    Name: Tahoma
    Size:   78
    Font style: Bold
    lblEquality
    TLabel TLabel   000 clBlue Color: clBlue
    Name: Tahoma
    Size:   78
    Font style: Bold
    lblResult
    TLabel TLabel taCenter New Operation clMaroon Color: clCream
    Name: Tiffany Lt BT (*)
    Size:   36
    Font style: Demi
    lblNewOperation
    TLabel TLabel taCenter Check clMaroon Color: clCream
    Name: Tiffany Lt BT (*)
    Size:   36
    Font style: Demi
    lblCheck
    TLabel TLabel taCenter Quit clMaroon Color: clCream
    Name: Tiffany Lt BT (*)
    Size:   36
    Font style: Demi
    lblQuit

    (*) If you don't have the "Tiffany Lt BT" font, select any Serif font of your choice (such as Garamond, Georgia, or Times New Roman)



Auto-Resizing a Label

When you type the caption of a label, it is continually resized to accommodate its string. If you edit the label, as you delete or add characters, the label resizes itself. If you want to fix the size of the label regardless of its caption, set the Boolean property AutoResize to false. By default, this property is set to false on most controls that use it; but on a label, it is set to true. Once you have set AutoResize to true, if you change the text of the label, only the portion that fits in the allocated space would be seen. Of course, you can resize it manually.

Before or after typing the caption of a label, you can resize its allocated space to your liking. This is because a string occupies a rectangular area. Here is an example:

Text Layout


Because the caption of a label is confined to a rectangle, you can increase the height of that rectangle and align text to the top, the middle or the bottom side of that allocated rectangle. The vertical alignment of a label is controlled by the Layout property which is based on the TTextLayout enumerator and defined as follows:

enum TTextLayout { tlTop, tlCenter, tlBottom };

The effects of the Alignment and the Layout properties are as follows:

Alignment taLeftJustify Alignment taLeftJustify Alignment taLeftJustify
Layout tlTop Layout tlCenter Layout tlBottom
Alignment taCenter  Alignment taCenter  Alignment taCenter
Layout tlTop Layout tlCenter Layout tlBottom
Alignment taRightJustify  Alignment taRightJustify  Alignment taRightJustify
Layout tlTop Layout tlCenter Layout tlBottom

If you have allocated a rectangular area wider and taller than the actual string of the label, you can display it on more than one line. This ability is controlled by the WordWrap Boolean property. Its default value is false, which makes the label display on a single line. When the value of the WordWrap property is set to true, the text of the label can span multiple lines.

If you want to create a shadow effect on a label, you can place one label on top of another. Using the Transparent property, which is a Boolean value, you should make the top label transparent.

Other fancy characteristics you can apply to a label include its font and color.

Label Messages and Events

The Label control has various events that are part of its repertoire, although they are hardly used. You can configure a label to behave like a (web) link using its OnClick event. For example the Win32 ShellExecute() function can be used to perform an operation on a file. The following OnClick event on a label would launch WordPad:

//---------------------------------------------------------------------------
void __fastcall TForm1::lblWordPadClick(TObject *Sender)
{
	ShellExecute(NULL,
		     NULL,
		     "C:\\Program Files\\Windows NT\\Accessories\\wordpad.exe",
		     NULL,
		     NULL,
		     SW_SHOWNORMAL);
}
//---------------------------------------------------------------------------

The label inherits two valuable events from its parent the TCustomLabel class. Although the label cannot receive focus, when the mouse is positioned over it, it fires the OnMouseEnter() event, which is a TNotifyType. When the mouse is taken away from the top of the label, it fires the OnMouseLeave() event, which also is a TNotifyEvent type.





Practical LearningPractical Learning: Using a Label

  1. On the form, double-click the New Operation label
  2. Implement its event as follows:
    //---------------------------------------------------------------------------
    void __fastcall TfrmOperation::lblNewOperationClick(TObject *Sender)
    {
    	int Operand1 = Random(99);
    	int Operand2 = Random(99);

    	lblOperand1->Caption = IntToStr(Operand1);
    	lblOperand2->Caption = IntToStr(Operand2);
    	lblResult->Caption   = L"000";

    	lblResult->Caption = InputBox(L"Elementary Addition",
    				      L"Enter the result of " +
    				      lblOperand1->Caption + L" + " +
    				      lblOperand2->Caption, L"0");
    }
    //---------------------------------------------------------------------------
  3. In the Object Inspector, click Events
  4. In the top section of the Object Inspector, select lblCheck
  5. Double-click the right side of OnClick
  6. Implement the event as follows:
    //---------------------------------------------------------------------------
    void __fastcall TfrmOperation::lblCheckClick(TObject *Sender)
    {
    	int Operand1   = StrToInt(lblOperand1->Caption);
    	int Operand2   = StrToInt(lblOperand2->Caption);
    	int UserResult = StrToInt(lblResult->Caption);
    	int TrueResult = Operand1 + Operand2;

    	if( UserResult == TrueResult )
    		MessageBox(Handle, "WOW - Good Result", "Elementary Addition", 0);
    	else
    		MessageBox(Handle,
    			   "PSST - Wrong Answer\n"
    			   "We hope you will get it right next time",
    			   "Elementary Addition", 0);
    }
    //---------------------------------------------------------------------------
  7. In the top section of the Object Inspector, select lblQuick
  8. Double-click the right side of OnClick
  9. Implement its event as follows:
    //---------------------------------------------------------------------------
    void __fastcall TfrmOperation::lblQuitClick(TObject *Sender)
    {
    	Close();
    }
    //---------------------------------------------------------------------------

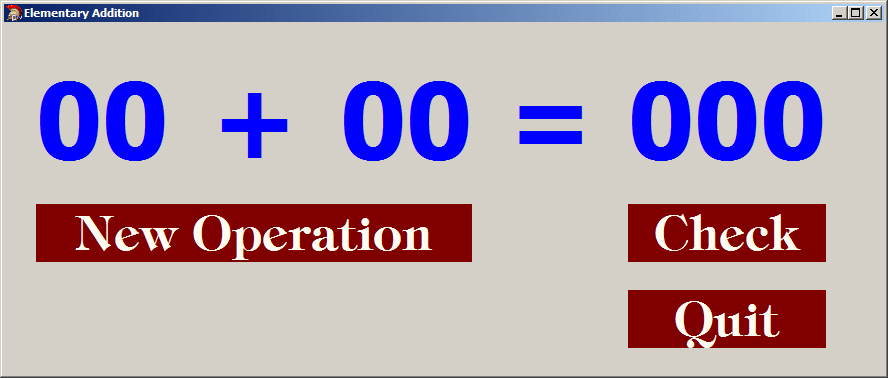

  10. To execute the application, press F9
    Elementary
  11. Click the New Operation button

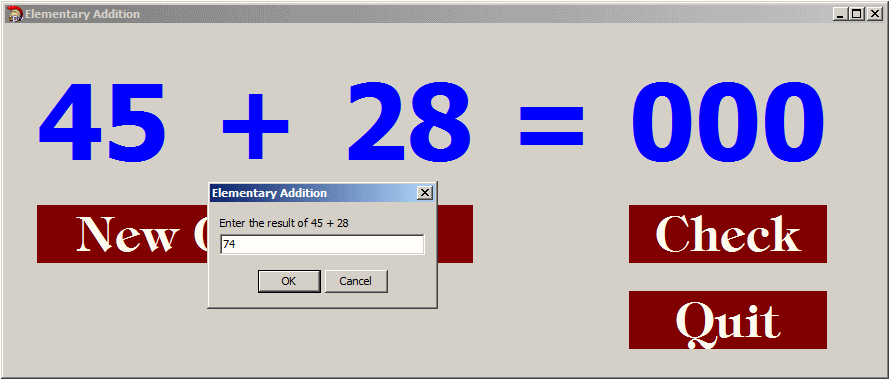

  12. Enter a value in the input box
    Elementary
  13. Click OK
    Elementary

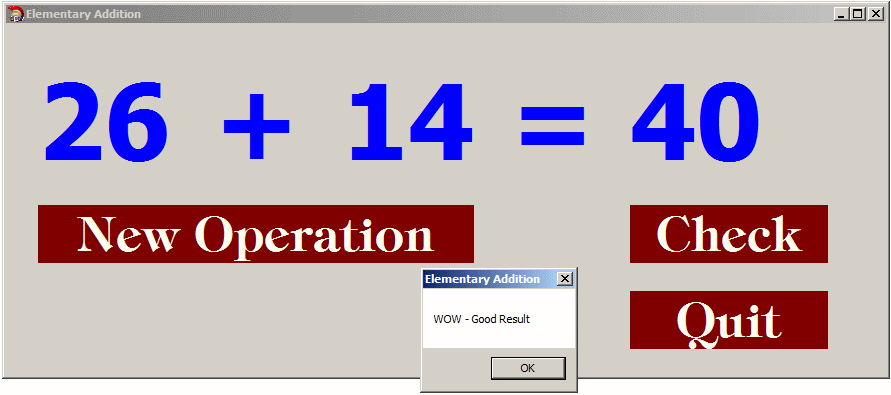

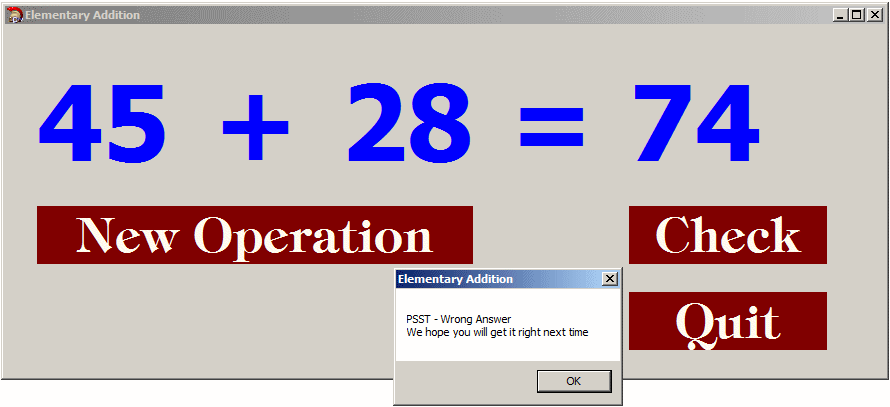

  14. Click the Check button
    Elementary
  15. Click OK on the message box
  16. Click the New Operand button again
    Elementary
    Elementary
  17. Click the Quit button to close the form and return to your programming environment
