Triggers Fundamentals



Introduction to Triggers

When an action has been performed on a table, such as adding a new record, changing (editing/updating) an existing record, or deleting a (or some) record(s), the table produces a notification. We say that the table fires an event. You can use that occurring event to take some action.

A trigger is an action that is performed behind-the-scenes when an event occurs on a table or a view.

Practical LearningPractical Learning: Introducing Triggers

  1. Server: Start the server and log in with an account that has administrative rights
  2. Server: Launch Microsoft SQL Server
  3. Server: In the Authentication combo box, make sure Windows Authentication is selected and click Connect (teacher)
  4. Server: Open the KoloBank4.sql file (KoloBank4.txt)
  5. Server: To execute it, on the main menu, click Query -> Execute
  6. Server: Close the KoloBank4 window
  7. Each Student: Start the computers
  8. Each Student:
    1. Start Microsoft SQL Server
    2. In the Server Name combo box, select the name of the server or type it
    3. In the Authentication combo box, select SQL Server Authentication
    4. In the User Name combo box, type the name of the domain, followed by \, and followed by the login name you were given
    5. In the Password combo box, type your password
    6. Click Connect
  9. Each Student: Expand Databases, expand KoloBank4, expand Tables

    Tables

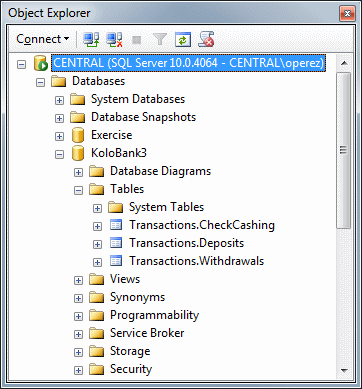

    Some students (for example operez (Student4)) may not see all tables:

    Tables
  10. Each Student: Expand Views
  11. Each Student: In the Object Explorer, right-click KoloBank4 and click New Query

Creating a Trigger

You create a trigger using SQL code. Later on, we will start analyzing the code necessary to do this. To assist you with skeleton code, open a Query window. Then, in the Template Explorer, expand the Triggers node. Drag Create T-SQL Trigger (New Menu) and drop it in the window:

-- ================================================
-- Template generated from Template Explorer using:
-- Create Trigger (New Menu).SQL
--
-- Use the Specify Values for Template Parameters
-- command (Ctrl-Shift-M) to fill in the parameter
-- values below.
--
-- See additional Create Trigger templates for more
-- examples of different Trigger statements.
--
-- This block of comments will not be included in
-- the definition of the function.
-- ================================================
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
-- =============================================
-- Author:		<Author,,Name>
-- Create date: <Create Date,,>
-- Description:	<Description,,>
-- =============================================
CREATE TRIGGER <Schema_Name,
		sysname,
		Schema_Name>.<Trigger_Name,
			      sysname,
			      Trigger_Name>
   ON  <Schema_Name, sysname, Schema_Name>.<Table_Name, sysname, Table_Name>
   AFTER <Data_Modification_Statements, , INSERT,DELETE,UPDATE>
AS
BEGIN
	-- SET NOCOUNT ON added to prevent extra result sets from
	-- interfering with SELECT statements.
	SET NOCOUNT ON;

    -- Insert statements for trigger here

END
GO

Executing a Trigger

Unlike a stored procedure, you never have to execute a trigger. The operating system (through the object(s) event(s)) and the database engine take care of this. A trigger acts behind the scenes when the object to which it is associated fires the appropriate event. In fact, the event fires whether the object received a change or not (whether a record was created, edited, deleted, or not).

Microsoft SQL Server supports three types of triggers: DML, DDL, and logon.

DML Triggers



Introduction

A DML trigger is a procedure that acts as a result of a data manipulation language (DML) event occurring on a table. This means that the trigger must be created in connection to a table of a non-system database.

AFTER/FOR INSERT Triggers

An insert trigger is a DML trigger that acts when a new record is added to its intended table. Such a trigger uses the INSERT keywork. The primary formula to create an INSERT DML trigger on a table is:

CREATE TRIGGER TriggerName
ON TableName
AFTER/FOR INSERT
AS
    TriggerCode

The statement starts with CREATE TRIGGER followed by a name. The name follows the rules we have applied so far to database objects. After specifying the name of the trigger, write ON followed by the name of the table on which the trigger will be applied. Of course, the table must exist in the database.

In our formula, we assume that the trigger will apply when a record has been added to the table. Therefore, you use either the AFTER INSERT or the FOR INSERT expression.

To start the SQL code that constitutes the trigger, write AS, and then write your code.

After creating an INSERT trigger, at the right time (when its intended event fires), it will execute. When this happens, the database engine automatically and internally creates a temporary table named inserted. This table holds a copy of the records that were created. You can access those records if you want.

Practical LearningPractical Learning: Creating and Using a DML Trigger

  1. Server: To create a new trigger, type the following (at the server):
    USE KoloBank4;
    GO

    -- ========================================================
    -- DML Triggers:
    -- Description:	These triggers update the Management.DatabaseOperations
    --		by letting it know that a new operation has
    --		taken place on a table of the database table. The trigger
    --		also specifies the name of the employee
    --		who performed the operation and the time
    --		this occurred
    -- ========================================================
    CREATE TRIGGER Management.ForCustomers
    ON Management.Customers
    AFTER INSERT
    AS
    BEGIN
        INSERT INTO Management.DatabaseOperations
        VALUES(default, N'Customers', SUSER_SNAME(),
    	       N'Created a new bank account.', GETDATE())
    END
    GO
    -- ========================================================
    CREATE TRIGGER Transactions.ForDeposits
    ON Transactions.Deposits
    AFTER INSERT
    AS
    BEGIN
        INSERT INTO Management.DatabaseOperations
        VALUES(default, N'Deposits', SUSER_SNAME(),
    	       N'Made a deposit.', GETDATE())
    END
    GO
    -- ========================================================
    CREATE TRIGGER Transactions.ForWithdrawals
    ON Transactions.Withdrawals
    AFTER INSERT
    AS
    BEGIN
        INSERT INTO Management.DatabaseOperations
        VALUES(default, N'Withdrawals', SUSER_SNAME(),
    	   N'Withdrew money', GETDATE())
    END
    GO
    -- ========================================================
    CREATE TRIGGER Transactions.ForChecksCashed
    ON Transactions.CheckCashing
    AFTER INSERT
    AS
    BEGIN
        INSERT INTO Management.DatabaseOperations
        VALUES(default, N'CheckCashing', SUSER_SNAME(),
    	   N'Cashed a check', GETDATE())
    END
    GO
  2. Server: Press F5 to execute
  3. gmonay (Student2): Right-click Management.Customers and click Edit Top 200 Rows
  4. gmonay (Student2): Enter a record as follows:

    DateCreated: 01/12/11
    AccountNumber
    : 288-3782-848
    AccountTypeID: 1
    CustomerName: James Carlton Brokeridge
    Address: 1022 Arlington Rd
    City: Arlington
    State: VA
    ZIPCode: 22202
    HomePhone: (703) 645-1492
    WorkPhone: (703) 450-5577
  5. gmonay (Student2): Close the Management.Customers table
  6. rkouma (Student3): Right-click Management.Customers and click Edit Top 200 Rows
  7. rkouma (Student3): Create a record as follows:

    DateCreated: 1/12/2011
    AccountNumber: 920-3782-493
    AccountTypeID
    : 1
    CustomerName: Chrissy Arlene McMahon
    Address: 845 Arcadia Ave. #1512
    City: Rockville
    State: MD
    ZIPCode: 20872
    HomePhone: (301) 684-2828
    WorkPhone: (301) 723-1882
  8. rkouma (Student3): Close the Management.Customers table
  9. gmonay (Student2): In the Object Explorer, under the Tables node of KoloBank4, right-click Transactions.Deposits and click Edit Top 200 Rows
  10. gmonay (Student2): Enter the following values for a new record:

    LocationID EmployeeID CustomerID DepositDate DepositAmount Notes
    2 1 1 01/12/11 250.00 Deposit for a new bank account
  11. gmonay (Student2): Close the Transactions.Deposits table
  12. rkouma (Student3): In the Object Explorer, under KoloBank4, right-click Management.Customers and click Edit Top 200 Rows
  13. rkouma (Student3): Add a new record as follows:

    DateCreated: 01/12/11
    AccountNumber
    : 803-4654-747
    AccountTypeID: 2
    CustomerName: Herbert Spampinato
    Address: 8254 12th St. N.E.
    City: Washington
    State: DC
    ZIPCode: 20164
    HomePhone: (202) 927-1040
    WorkPhone: (301) 726-8426
  14. rkouma (Student3): Close the Management.Customers table
  15. rkouma (Student3): In the Object Explorer, under KoloBank4, right-click Transactions.Deposits and click Edit Top 200 Rows
  16. rkouma (Student3): Create a new record as follows:

    LocationID EmployeeID CustomerID DepositDate DepositAmount Notes
    2 4 2 01/12/11 500.00 Deposit for a new bank account
  17. rkouma (Student3): Close the Transactions.Deposits table
  18. operez (Student4): Right-click Transactions.Withdrawals and click Edit Top 200 Rows
  19. operez (Student4): Enter a new record as follows:

    LocationID EmployeeID CustomerID WithdrawalDate WithdrawalAmount Notes
    3 5 2 01/12/11 225.00 Withdrawal from cashier
  20. operez (Student4): Close the Transactions.Withdrawals table
  21. gmonay (Student2): In the Object Explorer, under KoloBank4, right-click Transactions.Withdrawals and click Edit Top 200 Rows
  22. gmonay (Student2): Enter a new record as follows:

    LocationID EmployeeID CustomerID WithdrawalDate WithdrawalAmount Notes
    2 1 1 01/12/11 26.85 Drive-in withdrawal
  23. gmonay (Student2): Close the Transactions.Withdrawals table
  24. rkouma (Student3): In the Transactions.Deposits table, create a new record as follows:

    LocationID EmployeeID CustomerID DepositDate DepositAmount Notes
    2 4 3 01/12/11 735.25 Deposit for a new bank account
  25. rkouma (Student3): Close the Transactions.Deposits table
  26. rkouma (Student3): In the Object Explorer, right-click Management.Customers and click Edit Top 200 Rows
  27. rkouma (Student3): Create a new record as follows:

    DateCreated: 01/18/11
    AccountNumber
    : 497-4783-295
    AccountTypeID: 1
    CustomerName: Gloria Jasmine Wright
    Address: 15328 Crystal St.
    City: Hyattsville
    State: MD
    ZIPCode: 20782
    HomePhone: (301) 723-5656
  28. rkouma (Student3): Close the Management.Customers table
  29. operez (Student4): In the Object Explorer, right-click Transactions.Deposits and click Edit Top 200 Rows
  30. operez (Student4): Create a new record as follows:

    LocationID EmployeeID CustomerID DepositDate DepositAmount Notes
    1 5 1 01/18/11 75.95
  31. operez (Student4): Close the Transactions.Deposits table
  32. gmonay (Student2): In the Object Explorer, right-click Transactions.Deposits and click Edit Top 200 Rows
  33. gmonay (Student2): Create a new record as follows:

    LocationID EmployeeID CustomerID DepositDate DepositAmount Notes
    2 1 4 01/18/11 1450.00 Deposit for a new bank account
  34. gmonay (Student2): Close the Transactions.Deposits table
  35. pkatts (Student1): In the Object Explorer, right-click Management.Customers and click Edit Top 200 Rows
  36. pkatts (Student1): Create a new record with the following values:

    DateCreated: 1/20/11
    AccountNumber
    : 682-3763-264
    AccountTypeID: 1
    CustomerName: Liliana Wellie Ortez
    Address: 4445 Blue Oak St. #6A
    City: Chevy Chase
    State: MD
    ZIPCode: 20875
    HomePhone: (301) 821-4990
  37. pkatts (Student1): Close the Management.Customers table
  38. operez (Student4): In the Object Explorer, right-click Transactions.Withdrawals and click Edit Top 200 Rows
  39. operez (Student4): Create a new record as follows:

    LocationID EmployeeID CustomerID WithdrawalDate WithdrawalAmount
    1 5 4 01/20/11 522.75
  40. operez (Student4): Close the Transactions.Withdrawals table
  41. gmonay (Student2): In the Object Explorer, right-click Transactions.Withdrawals and click Edit Top 200 Rows
  42. gmonay (Student2): Create a new record as follows:

    LocationID EmployeeID CustomerID WithdrawalDate WithdrawalAmount
    2 1 3 01/20/11 440.00
  43. gmonay (Student2): Close the Transactions.Withdrawals table
  44. pkatts (Student1): In the Object Explorer, right-click Transactions.Deposits and click Edit Top 200 Rows
  45. pkatts (Student1): Create a new record as follows:

    LocationID EmployeeID CustomerID DepositDate DepositAmount Notes
    4 2 5 01/20/11 275.95 The deposit for this new bank account was made from a check
  46. pkatts (Student1): Close the Transactions.Deposits table
  47. Each Student: In the Object Explorer, right-click KoloBank4 and click New Query
  48. Each Student: Type the following:

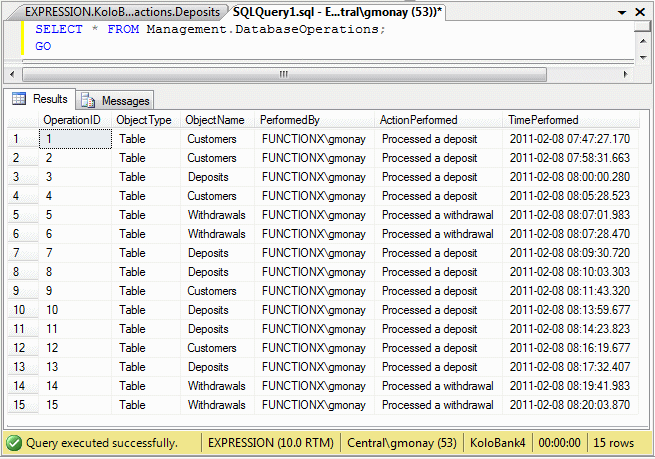

    SELECT * FROM Management.DatabaseOperations;
    GO
  49. Each Student: Right-click inside the Query window and click Execute.
    Notice the entries in the PerformedBy column

    Trigger

AFTER/FOR UPDATE Triggers

Instead of record insertion time, a DML trigger can act when a record has been updated on a table. To support this operation, you can use the following formula:

CREATE TRIGGER TriggerName
ON TableName
AFTER/FOR UPDATE
AS
    TriggerCode

The new keyword in this formula is UPDATE. This indicates that the DML trigger will act when the record has been updated. Everything else is as described for the INSERT operator. Remember to use either AFTER UPDATE or FOR UPDATE.

Practical LearningPractical Learning: Updating With a DML Trigger

  1. Server: Click the top section of the Query window and press Ctrl + A
  2. Server: To create new triggers, type the following:
    USE KoloBank4;
    GO

    -- ========================================================
    -- DML Triggers:Records Updates
    -- Description:	These trigger adds a new record to the
    --		Management.DatabaseOperations when an existing record
    --		of a table has been updated.
    -- ========================================================
    CREATE TRIGGER Management.CustomerUpdated
    ON Management.Customers
    AFTER UPDATE
    AS
    BEGIN
        INSERT INTO Management.DatabaseOperations
        VALUES(default, N'Customers', SUSER_SNAME(),
    	   N'Some detail changed about a customer record.',
    	   GETDATE())
    END
    GO
    CREATE TRIGGER Transactions.DepositUpdated
    ON Transactions.Deposits
    AFTER UPDATE
    AS
    BEGIN
        INSERT INTO Management.DatabaseOperations
        VALUES(default, N'Deposits', SUSER_SNAME(),
    	   N'Changed some information about a deposit of a bank account.',
    	   GETDATE())
    END
    GO
    CREATE TRIGGER Transactions.WithdrawalUpdated
    ON Transactions.Withdrawals
    AFTER UPDATE
    AS
    BEGIN
        INSERT INTO Management.DatabaseOperations
        VALUES(default, N'Withdrawals', SUSER_SNAME(),
    	   N'Updated a withdrawal of a bank account.', GETDATE())
    END
    GO
  3. Server: Press F5 to execute
  4. rkouma (Student3): In the Object Explorer, right-click Management.Customers and click Edit Top 200 Rows
  5. rkouma (Student3): Locate the customer whose account number is 803-4654-747
  6. rkouma (Student3): Change the ZIP Code to 20008 and press the down arrow key
  7. operez (Student4): In the Object Explorer, right-click the Transactions.Deposits table and click Edit Top 200 Rows
  8. operez (Student4): In the first record, change the DepositAmount to 650.00 and press the down arrow key.
    Notice that you receive an error because you don't have the appropriate permissions

    Notice that you receive an error
  9. operez (Student4): Click OK
  10. operez (Student4): Press Esc to dismiss the change
  11. operez (Student4): Close the Transactions.Deposits table
  12. gmonay (Student2): In the Transactions.Deposits table, change the first record as follows (change the DepositAmount and the Notes fields):

    DepositID LocationID EmployeeID CustomerID DepositDate DepositAmount Notes
    1 1 1 01/12/11 650.00 There was a mistake in the amount deposited. Instead of 250.00, it was 650.00
  13. gmonay (Student2): Close the Transactions.Deposits table
  14. pkatts (Student1): In the Object Explorer, right-click Transactions.Deposits and click Edit Top 200 Rows
  15. pkatts (Student1): Change the second record as follows (you will change the EmployeeID, the CustomerID, the DepositAmount, and the Notes):

    LocationID EmployeeID CustomerID DepositDate DepositAmount Notes
    2 2 2 01/12/11 1500.00 Oops, the money was deposited in the wrong bank account. It has been corrected with no incident
  16. pkatts (Student1): Close the Transactions.Deposits table
  17. pkatts (Student1): In the Object Explorer, right-click Transactions.Withdrawals and click Edit Top 200 Rows
  18. pkatts (Student1): Change the record as follows (change the EmployeeID and the Notes fields):

    WithdrawalID LocationID EmployeeID CustomerID WithdrawalDate WithdrawalAmount Notes
    3 1 2 4 1/20/11 522.75 The withdrawal was actually processed by 662-286. Everything else is the same.
  19. pkatts (Student1): Close the Transactions.Withdrawals  table
  20. Each Student: Click the SQLQuery1.sql tab

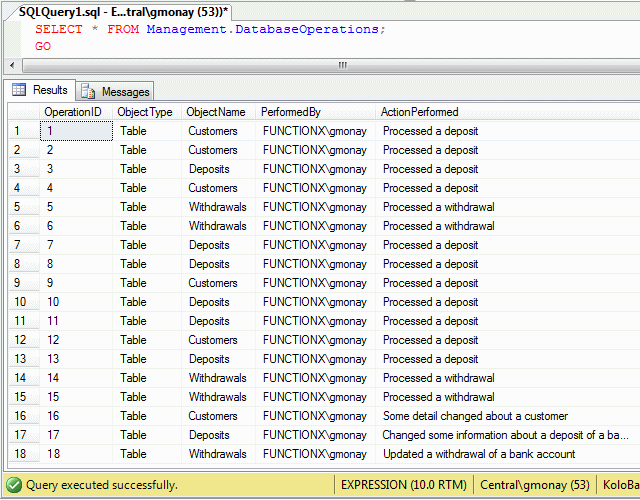

  21. Each Student: Right-click the Query window and click Execute

    Trigger
  22. Each Student: On the taskbar, click Start -> Log Off

AFTER/FOR DELETE Triggers

When a record has been removed from a table, you can apply a DML trigger in response. To make it possible, you can use the following formula:

CREATE TRIGGER TriggerName
ON TableName
AFTER/FOR DELETE
AS
    TriggerCode

This time, the formula uses the DELETE operator as in AFTER DELETE or FOR DELETE. The other things follow the same description we saw for the INSERT operator.

When a DELETE trigger has acted on a table, the database engine creates a special temporary table named deleted. This table holds a copy of the records that were deleted. Eventually, if necessary, you can access this table to find out about those records.

Practical LearningPractical Learning: Deleting With a DML Trigger

  1. Server: Click the top section of the Query window and press Ctrl + A
  2. Server: To create two new triggers, type the following:
    USE KoloBank4;
    GO

    -- ========================================================
    -- Description:	These triggers add a new record to the
    --		Management.DatabaseOperations when an existing record
    --		of a table has been deleted.
    -- ========================================================
    CREATE TRIGGER DepositDeleted
    ON Transactions.Deposits
    AFTER DELETE
    AS
    BEGIN
        INSERT INTO Management.DatabaseOperations
        VALUES(default, N'Deposits', SUSER_SNAME(),
    	   N'Deleted a deposit from a bank account.', GETDATE())
    END
    GO
    CREATE TRIGGER WithdrawalDeleted
    ON Transactions.Withdrawals
    AFTER DELETE
    AS
    BEGIN
        INSERT INTO Management.DatabaseOperations
        VALUES(default, N'Withdrawals', SUSER_SNAME(),
    	   N'Deleted a withdrawal from a bank account.', GETDATE())
    END
    GO
  3. Server: Press F5 to execute
  4. operez (Student4): In the Object Explorer, right-click Transactions.Deposits and click Edit Top 200 Rows

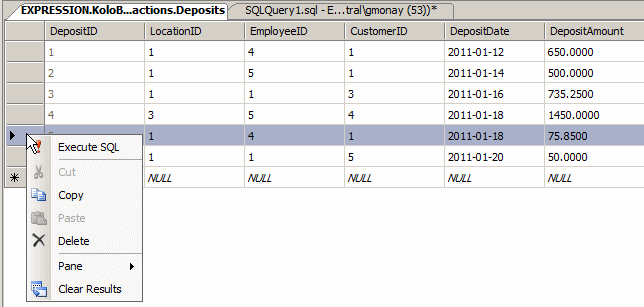

  5. operez (Student4): To delete a record, right-click the row header of the 5th record:

    To delete a record, right-click the row header of the 5th record
  6. operez (Student4): Click Delete

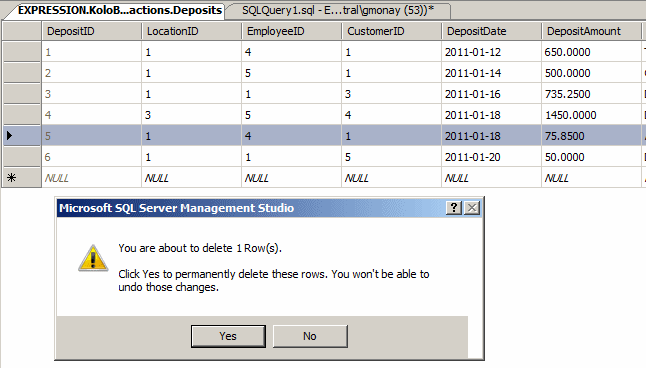

  7. operez (Student4): Read the text in the Microsoft SQL Server Management Studio message box:

    To delete a record, right-click the row header of the 5th record

    operez (Student4): To confirm that you want to delete, click Yes
  8. operez (Student4): Notice that you receive an error because you don't have the right permission(s):

    To delete a record, right-click the row header of the 5th record

    operez (Student4): Read the message and click OK
  9. Because some supervisor suspects that Orlando Perez tried to do something bad to the database, Orlando has been asked to log out of the database.
    operez (Student4): Close Microsoft SQL Server
  10. Server: Click the top section of the Query window press Ctrl + A to select everything
  11. Server: Type the following code:
    REVOKE SELECT, INSERT
    ON OBJECT::Transactions.Deposits
    TO Orly;
    GO
    REVOKE SELECT, INSERT
    ON OBJECT::Transactions.Withdrawals
    TO Orly;
    GO
    REVOKE SELECT, INSERT
    ON OBJECT::Transactions.CheckCashing
    TO Orly;
    GO

    DENY SELECT
    ON OBJECT::Transactions.Deposits
    TO Orly;
    GO
    DENY SELECT
    ON OBJECT::Transactions.Withdrawals
    TO Orly;
    GO
    DENY SELECT
    ON OBJECT::Transactions.CheckCashing
    TO Orly;
    GO
  12. Server: To execute, on the main menu, click Query -> Execute
  13. gmonay (Student2): In the Object Explorer, right-click Transactions.Deposits and click Edit Top 200 Rows
  14. gmonay (Student2): To delete a record, right-click the row header of the 5th record
  15. gmonay (Student2): Click Delete
  16. gmonay (Student2): Click Yes
  17. gmonay (Student2): Close the table

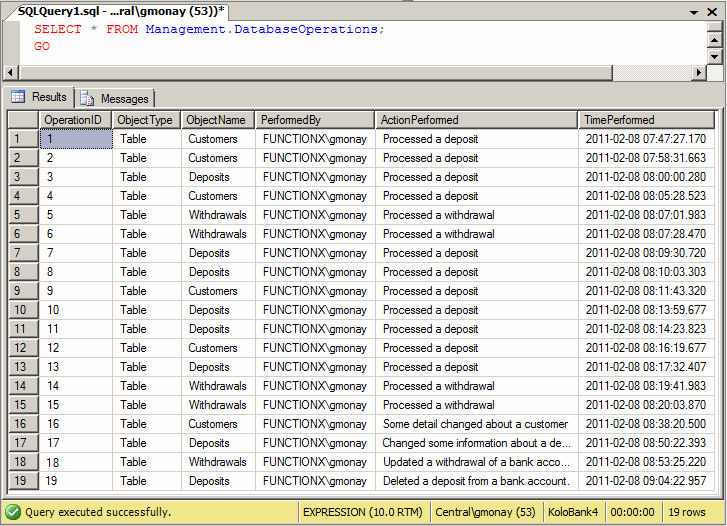

  18. Each Student: Right-click the Query window and click Execute

    Trigger

Trigger Management



Introduction

A trigger is a database object. As such, it has a name. It can be modified. It can also be deleted.

Modifying a Trigger

If the behavior of a trigger is not appropriate, you can change it. The formula to modify a trigger is:

ALTER TRIGGER schema_name.trigger_name
ON  schema_name.table_name
AFTER , UPDATE>
AS
    statement

To get skeleton code generated for you, open a Query window. In the Templates Explorer, expand the Triggers node, drag the Alter option and drop it in the Query window:

--======================================
--  Alter T-SQL Trigger Template
--======================================
USE <database_name, sysname, AdventureWorks>
GO

ALTER TRIGGER <schema_name, sysname, Sales>.<trigger_name, sysname, uStore>
ON  <schema_name, sysname, Sales>.<table_name, sysname, Store>
AFTER <data_modification_statements, , UPDATE>
AS <T-SQL_statement,
   ,
   UPDATE Sales.Store
   SET ModifiedDate = GETDATE()
   FROM inserted WHERE inserted.CustomerID = Sales.Store.CustomerID>
GO

Deleting a Trigger

If you do not need a trigger anymore, you can remove it. The formula to do this is:

DROP TRIGGER TriggerName

After the DROP TRIGGER expression, enter the name (of the trigger).

Characteristics of DML Triggers



Introduction

Although we created only one trigger for a table so far, you can go farther than that:

DML triggers present many other characteristics.

DML Triggers and Constraints

You know that, to assist a user with data entry, you can specify that a column would allow or not allow null values. If a column is marked as NOT NULL, during data entry, if the user does not or cannot provide a value for that column, the record cannot be created. If you create a DML trigger that must act against that table, if the nullity rule is violated, the trigger will not run.

You know that you can create a check constraint on a table to make sure that every new record, or a record that is being edited, follows a certain rule. You know that if the record does not abide by that rule, the record will not be created or changed. If a DML trigger is supposed to act on the table and if this rule is not respected, the trigger would fail.

One of the limitations of a check constraint is that it applies only to the table that owns it. A DML trigger can be created to perform a check constraint on more than one table. This provides its advantage over the normal check constraint.

You probably know already about data relationships and referential integrity. This makes sure that, when a record is edited in a parent table, the change is also made on the child table. This also means that the integrity is applied to more than one table. When a DML trigger runs, if a referential rule is violated, the trigger, which also checks the referential integrity, fails.

Instead of DML Triggers



Introduction

Consider the following tables in a database:

CREATE DATABASE SmallBusiness;
GO

USE SmallBusiness;
GO

CREATE TABLE Customers
(
    CustomerID int identity(1, 1) primary key not null,
    AccountNumber nchar(10),
    FullName nvarchar(50)
);
GO

CREATE TABLE Management.DatabaseOperations (
    EmployeeName nvarchar(50),
    ActionPerformed nvarchar(50),
    TimePerformed time
);
GO

From what we have seen so far, when a user opens a table or a view to perform data entry, when a new record has been created, the table or view fires an event. We saw that, using a DML trigger, you can make a notification. For example, you can fill out a log to keep track of the changes. By default, when a record is submitted, it gets saved. In some cases, when a user has opened a table and tried to make a change, such as adding a new record, editing an existing record, or deleting a record, instead of accepting the change, you can dismiss it. You can then use a DML trigger to make a note. This is the basis of another category of DML triggers: an "instead of" trigger.

Creating an INSTEAD OF Trigger

While an AFTER/FOR trigger acts on a table after the action has occurred, you may want to do something before the event fires. For example, you may want to prevent the user from adding a new record on a table, or from changing an existing record, or from deleting a record. Of course, it is better to take care of this before the action is performed. One way you can do this is by creating an "instead of" trigger.

While an AFTER trigger can be applied to a table only, an "instead of" trigger can be associated with either a table or a view. Therefore, to create an "instead of" trigger, use the following formula:

CREATE TRIGGER TriggerName
ON TableOrViewName
INSTEAD OF INSERT/UPDATE/DELETE
AS
    TriggerCode

You start with the CREATE TRIGGER expression followed by a name for the trigger. After the name of the trigger, type ON followed by the name of either a table or a view on which the trigger will act.

From our review of the AFTER trigger, the new expression here is INSTEAD OF. This expression is followed by the type of operation to perform:

To start the triggering code, type AS and write the desired code.

If you use the INSTEAD OF expression, the trigger starts when the table or view is opened but before a change has taken place. The difference with the AFTER trigger is that, this time, you can perform some action(s) before the change is made on the table or view. This also implies that, if the code of the trigger is to create a new record, at this time, the record doest not yet exist, which means you cannot catch that record. At this time also, you can prevent the record from being created (since it has not yet been created anyway). For example, the following code will not accept that a new record be added to the table:

USE SmallBusiness;
GO

CREATE TRIGGER CreateCustomer
ON Customers
INSTEAD OF INSERT
AS
    BEGIN
        INSERT INTO Management.DatabaseOperations
        VALUES(SUSER_SNAME(),
	       N'Attempt to create new record', GETDATE())
    END
GO

If you want to get a copy of the record that was affected by the event, you can access it from the inserted (for an INSERT or UPDATE trigger) or from the deleted (for a DELETE) trigger. Here is an example:

USE SmallBusiness;
GO

DROP TRIGGER CreateCustomer;
GO

CREATE TRIGGER CreateCustomer
ON Customers
INSTEAD OF INSERT
AS
BEGIN
    INSERT INTO Customers
    SELECT AccountNumber, FullName FROM inserted
END
GO

Practical LearningPractical Learning: Creating INSTEAD OF Triggers

  1. Server: Click the top section of the Query window press Ctrl + A to select everything
  2. Server: To create two new triggers, type the following code:
    USE KoloBank4;
    GO

    -- ========================================================
    -- This trigger acts on a view to update the
    -- Management.DatabaseOperations to let it know that an
    -- attempt was made to create a new room
    -- ========================================================
    CREATE TRIGGER Transactions.AttemptedDeposit
    ON Transactions.DepositsSummary
    INSTEAD OF INSERT
    AS
    BEGIN
        INSERT INTO Management.DatabaseOperations
        VALUES(N'View', N'DepositsSummary', SUSER_SNAME(),
    	   N'Attempted to make a new deposit.', GETDATE())
    END
    GO

    -- ========================================================
    -- This trigger acts on a view to update the
    -- Management.DatabaseOperations to let it know that an
    -- attempt was made to create a new room
    -- ========================================================
    CREATE TRIGGER Transactions.AttemptedWithdrawal
    ON Transactions.WithdrawalsSummary
    INSTEAD OF INSERT
    AS
    BEGIN
        INSERT INTO Management.DatabaseOperations
        VALUES(N'View', N'WithdrawalsSummary', SUSER_SNAME(),
    	   N'An attempt was made to withdraw money.', GETDATE())
    END
    GO
  3. Server: Press F5 to execute
  4. operez (Student4): Start Microsoft SQL Server
  5. operez (Student4): Make sure Windows Authentication is selected and click Connect
  6. operez (Student4): In the Object Explorer, expand KoloBank4 and expand its Tables node.
    Notice that the Deposits, the Withdrawals, and the CheckCashing tables have disappeared
  7. operez (Student4): Still in the Object Explorer, under KoloBank4, expand Views

    Tables
  8. operez (Student4): Right-click Transactions.DepositsSummary and click Edit Top 200 Rows
  9. operez (Student4): Create a new record as follows:

    LocationID EmployeeID CustomerID DepositDate DepositAmount
    2 5 2 01/22/11 137.85
  10. operez (Student4): Close the Transactions.DepositsSummary view
  11. rkouma (Student3): In the Object Explorer, under KoloBank4, under Views, right-click Transactions.WithdrawalsSummary and click Edit Top 200 Rows
  12. rkouma (Student3): Create a new record as follows:

    LocationID EmployeeID CustomerID WithdrawalDate WithdrawalAmount
    2 4 4 01/24/11 744.25
  13. rkouma (Student3): Close the Transactions.WithdrawalsSummary view
  14. Each Student: Click the SQLQuery1.sql tab if necessary. Right-click the Query window and click Execute

    Trigger
  15. Each Student: Close the Query window
  16. Each Student: When asked whether you want to save, click No
  17. Each Student: On the taskbar, let each student click Start -> Log Off

Characteristics of INSTEAD OF Triggers

An AFTER/FOR and an INSTEAD OF triggers have many differences. For example:

DDL Triggers



Introduction

You probably know that the creation of a database uses a Data Definition Language (DDL) command. You may also know another example of a DDL command that involves creating a table. Each one of these creation operations fires an event.

A DDL trigger is a trigger that acts when a certain type of DDL event fires. These include the creation, modification, or removal of an object, not its records. This is the primary difference with a DML trigger that fires when a record is added or acted upon.

A DDL trigger gives you the opportunity to do some administrative work in response to the event. For example, you can get a notification, or notify someone else using an automatically generated email, that an object (and what object) has been created. Or you can use a DDL trigger to discard the operation.

Creating a DDL Trigger

You create a DDL trigger using code. The basic formula is:

CREATE TRIGGER TriggerName
ON DATABASE/ALL SERVER
FOR/AFTER WhatEvent
AS
    TriggerCode

You start a DDL trigger with the CREATE TRIGGER expression followed by a name for the new trigger. The name follows the same rules we have applied to objects so far. After the name of the trigger, type the ON keyword:

After specifying the object (the whole server or only the current database) on which the trigger will act, type either FOR or AFTER. This is followed by the event against which the trigger will act. As mentioned already, the events are DDL commands. To specify the event, use the formula of the command with the words separated by an underscore. For example, if you want the trigger to act when a CREATE TABLE command is executed, specify the event as CREATE_TABLE.

After specifying the event that will fire, type AS followed by the normal code of the trigger.

Here is an example that makes a note and adds it (the note) to a table when a new table has been created:

USE SmallBusiness;
GO

CREATE TRIGGER LogNewTableCreation
ON DATABASE
FOR CREATE_TABLE
AS
BEGIN
    INSERT INTO Management.DatabaseOperations
    VALUES(SUSER_SNAME(),
	   N'A new table was created', GETDATE())
END
GO

Whenever a new table is created in the current database, the trigger runs, gets the name of the user who created the table, the date and time the table was created, and a small message. These pieces of information are then stored in a log table.

As mentioned for DML triggers, you manage DDL triggers by modifying or deleting them. These are done using the same description we saw for DML triggers.

Practical LearningPractical Learning: Ending the Lesson

  1. Close Microsoft SQL Server
  2. Re-start Microsoft SQL Server and log in as the account with administrative rights
  3. In the Object Explorer, expand Databases
  4. Right-click KoloBank4 and click Delete
  5. In the Delete Object dialog box, click OK
  6. Close Microsoft SQL Server

Previous Copyright © 2009-2011 FunctionX.com Next
