Example Application:
Bethesda Car Rental

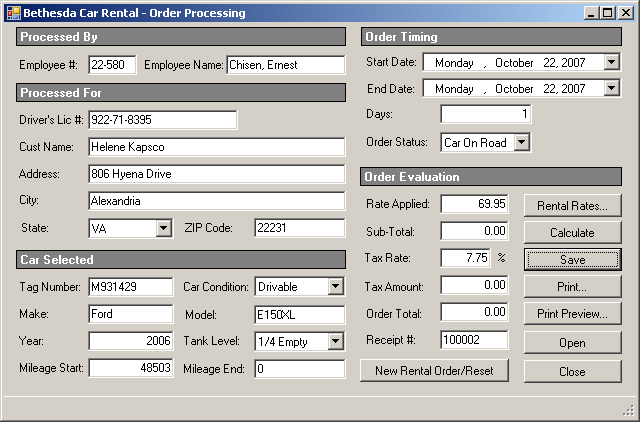

Description

In this file-based application, we apply the features of a dictionary-based collection class to create lists of objects, save them when necessary, and retrieve them at will. Therefore, this is a file-based database.

Bethesda Car Rental is a fictitious company used to rent cars to customers. The information about the cars is stored in a file. This is the same for the information about the customers and the employees. When processing an order, an employee uses a form to select the necessary information.



Practical LearningPractical Learning: Introducing Dictionary Collections

  1. Start Microsoft Visual Basic and create a new Windows Forms Application named BethesdaCarRental1
  2. To add a new form to the project, in the Solution Explorer, right-click BethesdaCarRental1 -> Add -> Windows Form...
  3. Set the Name to RentalRates and press Enter
  4. Add a ListView to the form and create its Columns as follows:

    (Name) Text TextAlign Width
    colCategory Category   90
    colDaily Daily Right
    colWeekly Weekly Right
    colMonthly Monthly Right
    colWeekend Weekend Right
  5. Create its Items as follows:

    ListViewItem SubItems SubItems SubItems SubItems
      Text Text Text Text
    Economy 35.95 32.75 28.95 24.95
    Compact 39.95 35.75 32.95 28.95
    Standard 45.95 39.75 35.95 32.95
    Full Size 49.95 42.75 38.95 35.95
    Mini Van 55.95 50.75 45.95 42.95
    SUV 55.95 50.75 45.95 42.95
    Truck 42.75 38.75 35.95 32.95
    Van 69.95 62.75 55.95 52.95

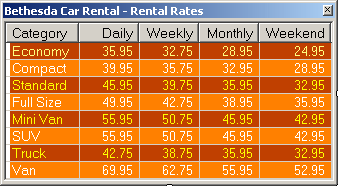

  6. Complete the design of the form as follows:

    Rental Rates

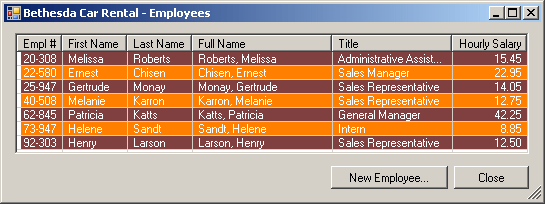

  7. To add a new form to the application, in the Solution Explorer, right-click BethesdaCarRental1 -> Add -> Windows Form...
  8. Set the Name to Employees and click Add
  9. From the Toolbox, add a ListView to the form
  10. While the new list view is still selected, in the Properties window, click the ellipsis button of the Columns field and create the columns as follows:

    (Name) Text TextAlign Width
    colEmployeeNumber Empl #   45
    colFirstName First Name   65
    colLastName Last Name   65
    colFullName Full Name   140
    colTitle Title   120
    colHourlySalary Hourly Salary Right 75

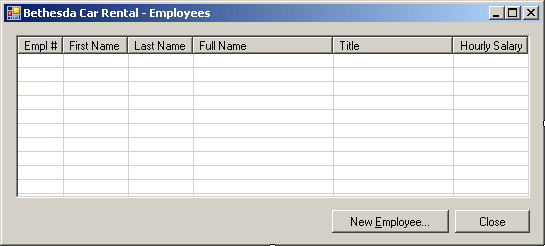

  11. Design the form as follows:

    Bethesda Car Rental: Employees

    Control Text Name Other Properties
    ListView   lvwEmployees Anchor: Top, Bottom, Left, Right
    FullRowSelect: True
    GridLines: True
    View: Details
    Button New Employee... btnNewEmployee
    Button Close btnClose
  12. To add another form to the application, in the Solution Explorer, right- click BethesdaCarRental1 -> Add -> Windows Form...
  13. Set the Name to EmployeeEditor and click Add
  14. Design the form as follows:

    Bethesda Car Rental: Employees

    Control Text Name Properties
    Label &Employee #:
    MaskedTextBox   txtEmployeeNumber Mask: 00-000
    Modifiers: public
    Label First Name:
    TextBox   txtFirstName Modifiers: public
    Label Last Name:
    TextBox   txtLastName Modifiers: public
    Label Full Name:
    TextBox   txtFullName Enabled: False
    Modifiers: public
    Label Title:
    TextBox   txtTitle Modifiers: public
    Label Hourly Salary:
    TextBox   txtHourlySalary Modifiers: public
    TextAlign: Right
    Button OK btnOK DialogResult: OK
    Button Cancel btnCancel DialogResult: Cancel
    Form     AcceptButton: btnOK
    CancelButton: btnCancel
    FormBorderStyle: FixedDialog
    MaximizeBox: False
    MinimizeBox: False
    ShowInTaskbar: False
  15. Right-click the form and click View Code
  16. In the Class Name combo box, select txtLastName
  17. In the Method Name combo box, select Leave and implement the event as follows:
    REM This code is used to create and display the customer's full name
    Private Sub txtLastNameLeave(ByVal sender As Object,
                                      ByVal e As System.EventArgs)
                                      Handles txtLastName.Leave
            Dim strFirstName As String = txtFirstName.Text
            Dim strLastName As String = txtLastName.Text
            Dim strFullName As String

            If strFirstName.Length = 0 Then
                strFullName = strLastName
            Else
                strFullName = strLastName & ", " & strFirstName
            End If

            txtFullName.Text = strFullName
    End Sub
  18. To add a new class to the project, on the main menu, click Project -> Add Class...
  19. Set the Class Name to Employee and click Add
  20. Change the Employee.vb file as follows:
    <Serializable()> Public Class Employee
        Public FirstName As String
        Public LastName As String
        Public Title As String
        Public HourlySalary As Double

        Public ReadOnly Property FullName()
            Get
                Return LastName & ", " & FirstName
            End Get
        End Property

        REM This default constructor says that
        REM the employee is not defined
        Public Sub New()
            FirstName = "Unknown"
            LastName = "Unknown"
            Title = "N/A"
            HourlySalary = 0.0
        End Sub

        REM This constructor completely defines an employee
        Public Sub New(ByVal fname As String, ByVal lname As String,
                            ByVal title As String, ByVal salary As Double)
            FirstName = fname
            LastName = lname
            Title = Title
            HourlySalary = salary
        End Sub
    End Class
  21. To add a new form to the application, on the main menu, click Project -> Add Windows Forms
  22. Set the Name to Customers and press Enter
  23. From the Toolbox, add a ListView to the form
  24. While the new list view is still selected, in the Properties window, click the ellipsis button of the Columns field and create the columns as follows:

    (Name) Text Width
    colDrvLicNbr Driver's Lic. # 100
    colFullName Full Name 100
    colAddress Address 160
    colCity City 100
    colState State 38
    colZIPCode ZIP Code
  25. Design the form as follows:

    Bethesda Car Rental: Customers

    Control Text Name Other Properties
    ListView   lvwCustomers View: Details
    GridLines: True
    FullRowSelect: True
    Button New Customer... btnNewCustomer
    Button Close btnClose
  26. To add another form to the application, on the main menu, click Project -> Add Windows Forms
  27. Set the Name to CustomerEditor and click Add
  28. Design the form as follows:

    Bethesda Car Rental: Customers

    Control Text Name Properties
    Label Driver's Lic. #:
    TextBox   txtDrvLicNbr Modifiers: Public
    Label State:
    ComboBox   cbxStates Modifiers: Public
    Items: AL, AK, AZ, AR, CA, CO, CT, DE, DC, FL, GA, HI, ID, IL, IN, IA, KS, KY, LA, ME, MD, MA, MI, MN, MS, MO, MT, NE, NV, NH, NJ, NM, NY, NC, ND, OH, OK, OR, PA, RI, SC, SD, TN, TX, UT, VT, VA, WA, WV, WI, WY
    Label Full Name:
    TextBox   txtFullName Modifiers: Public
    Label Address:
    TextBox   txtAddress Modifiers: Public
    Label City:
    TextBox   txtCity Modifiers: Public
    Label ZIP Code:
    TextBox   txtZIPCode Modifiers: Public
    Button OK btnOK DialogResult: OK
    Button Close btnCancel DialogResult: Cancel
    Form     AcceptButton: btnOK
    CancelButton: btnCancel
    FormBorderStyle: FixedDialog
    MaximizeBox: False
    MinimizeBox: False
    ShowInTaskbar: False
  29. To add a new class to the project, on the main menu, click Project -> Add Class...
  30. Set the Class Name to Customer and click Finish
  31. Change the Customer.vb file as follows:
    <Serializable()> Public Class Customer
        Public FullName As String
        Public Address As String
        Public City As String
        Public State As String
        Public ZIPCode As String

        Public Sub New()
            FullName = ""
            Address = ""
            City = ""
            State = ""
            ZIPCode = ""
        End Sub

        REM This constructor defines a customer
        Public Sub New(ByVal fName As String,
                        ByVal adr As String, ByVal ct As String,
                        ByVal ste As String, ByVal zip As String)
            FullName = fName
            Address = adr
            City = ct
            State = ste
            ZIPCode = zip
        End Sub
    End Class
  32. Save all
  33. Copy the following pictures to any folder somewhere on your computer (this is simply an example of preparing the pictures of cars you would include in your database application):

    Car Chevrolet Avalanche
    BMW: 335i Chevrolet Avalanche
    Car Mazda Miata
    Honda Accord Mazda Miata
    Chevrolet Aveo Ford E150XL
    Chevrolet Aveo Ford E150XL
    Buick LaCrosse Honda Civic
    Buick Lacrosse Honda Civic
    Ford F-150 Mazda Mazda5
    Ford F-150 Mazda Mazda5
    Volvo S40 Land Rover LR3
    Volvo S40 Land Rover LR3
  34. Return to your programming environment
  35. To add a new form to the application, in the Solution Explorer, right-click BethesdaCarRental1 -> Add -> Windows Forms
  36. Set the Name to CarEditor and click Add
  37. Design the form as follows:

    Bethesda Car Rental - Car Editor
    Control Text Name Other Properties
    Label Text #
    TextBox   txtTagNumber
    Label Make:
    TextBox   txtMake
    Label Model:
    TextBox   txtModel
    Label Year:
    TextBox   txtYear
    Label Category:
    ComboBox   cboCategories DropDownStyle: DropDownList
    Items: Economy
    Compact
    Standard
    Full Size
    Mini Van
    SUV
    Truck
    Van
    PictureBox   pbxCar SizeMode: Zoom
    CheckBox CD Player chkCDPlayer CheckAlign: MiddleRight
    CheckBox DVD Player chkDVDPlayer CheckAlign: MiddleRight
    Button Select Car Picture... btnSelectPicture
    CheckBox Available chkAvailable CheckAlign: MiddleRight
    Label Picture Name lblPictureName
    Button Submit btnSubmit
    Button Close btnClose DialogResult: Cancel
    OpenFileDialog (Name): dlgOpen
    Title: Select Item Picture
    DefaultExt: jpg
    Filter: JPEG Files (*.jpg,*.jpeg)|*.jpg|GIF Files (*.gif)|*.gif|Bitmap Files (*.bmp)|*.bmp|PNG Files (*.png)|*.png
    Form     FormBorderStyle: FixedDialog
    MaximizeBox: False
    MinimizeBox: False
    ShowInTaskbar: False
  38. Double-click the Select Car Picture button and implement its event as follows:
    Private Sub btnSelectPictureClick(ByVal sender As System.Object,
                                           ByVal e As System.EventArgs)
                                           Handles btnSelectPicture.Click
            If dlgPicture.ShowDialog() = DialogResult.OK Then
                lblPictureName.Text = dlgPicture.FileName
                pbxCar.Image = Image.FromFile(lblPictureName.Text)
            End If
    End Sub
  39. To add a new class to the project, on the main menu, click Project -> Add Class...
  40. Set the Class Name to Car and click Add
  41. Change the file as follows:
    <Serializable()> Public Class Car
        Public Make As String
        Public Model As String
        Public Year As Integer
        Public Category As String
        Public HasCDPlayer As Boolean
        Public HasDVDPlayer As Boolean
        Public IsAvailable As Boolean

        Public Sub New()
            Make = ""
            Model = ""
            Year = 0
            Category = ""
            HasCDPlayer = False
            HasDVDPlayer = False
            IsAvailable = False
        End Sub

        Public Sub New(ByVal mk As String, ByVal mdl As String,
                   ByVal yr As Integer, ByVal cat As String,
                   ByVal cd As Boolean, ByVal dvd As Boolean,
                   ByVal avl As Boolean)
            Make = mk
            Model = mdl
            Year = yr
            Category = cat
            HasCDPlayer = cd
            HasDVDPlayer = dvd
            IsAvailable = avl
        End Sub
    End Class
  42. To add a new class to the project, on the main menu, click Project -> Add Class...
  43. Set the Class Name to RentalOrder and press Enter
  44. Access the RentalOrder.vb file and change it as follows:

    <Serializable()> Public Class RentalOrder
        Public EmployeeNumber As String
        REM The following flag will allow us to update/know whether
        REM * The car is currently being used by the customer.
        REM   That is, if the car has been picked up by the customer
        REM * The customer has brought the car back
        Public OrderStatus As String
        REM Because every car has a tag number
        REM and that tag number will not change
        REM during the lifetime of a car (while the car remains with our
        REM car rental company, we will
        REM use only the tag number here.
        REM The other pieces of information will
        REM be retrieved from the list of cars
        Public CarTagNumber As String
        REM We will identify the customer by the number
        REM and the name on his or her driver's license
        Public CustomerDrvLicNbr As String
        Public CustomerName As String
        REM Although he or she may keep the same driver's
        REM license number for a lifetime, a customer who
        REM rents cars at different times with this company
        REM over months or years may have different addresses.
        REM Therefore, although we will primarily retrieve the
        REM customer's address from the list of customers,
        REM we will give the clerk the ability to change this
        REM information on a rental order. This means that the
        REM same customer could have different information on
        REM different rental orders.
        REM For this reason, each rental order will its own set
        REM of these pieces of information
        Public CustomerAddress As String
        Public CustomerCity As String
        Public CustomerState As String
        Public CustomerZIPCode As String
        Public CarCondition As String
        Public TankLevel As String
        REM This information will be entered when the car is being rented
        Public MileageStart As Integer
        REM This information will be entered when the car is brought back
        Public MileageEnd As Integer
        REM This information will be entered when the car is being rented
        Public DateStart As DateTime
        REM This information will be entered when the car is brought back
        Public DateEnd As DateTime
        Public Days As Integer
        REM This information will be entered when the car is being rented
        Public RateApplied As Double
        REM This calculation should occur when the car is brought back
        Public SubTotal As Double
        Public TaxRate As Double
        Public TaxAmount As Double
        Public OrderTotal As Double
    End Class
  45. To add a new form to the project, in the Solution Explorer, right-click BethesdaCarRenat1 -> Add -> Windows Form...
  46. Set the Name to OrderProcessing and press Enter
  47. Design the form as follows:

    Rental Orders
    Control Text Name Other Properties
    Label Processed By:   AutoSize: False
    BackColor: Gray
    BorderStyle: FixedSingle
    ForeColor: White
    TextAlign: MiddleLeft
    Label Employee #:
    MaskedTextBox   txtEmployeeNumber Mask: 00-000
    Label Employee Name:
    TextBox   txtEmployeeName
    Label Processed For   AutoSize: False
    BackColor: Gray
    BorderStyle: FixedSingle
    ForeColor: White
    TextAlign: MiddleLeft
    Label Driver's Lic #:
    TextBox   txtDrvLicNumber
    Label Cust Name:
    TextBox   txtCustomerName
    Label Address:
    TextBox   txtCustomerAddress
    Label City:
    TextBox   txtCustomerCity
    Label State:
    ComboBox   cbxCustomerStates DropDownStyle: DropDownList
    Sorted: True
    Items: AL, AK, AZ, AR, CA, CO, CT, DE, DC, FL, GA, HI, ID, IL, IN, IA, KS, KY, LA, ME, MD, MA, MI, MN, MS, MO, MT, NE, NV, NH, NJ, NM, NY, NC, ND, OH, OK, OR, PA, RI, SC, SD, TN, TX, UT, VT, VA, WA, WV, WI, WY
    Label ZIP Code
    TextBox   txtCustomerZIPCode
    Label Car Selected   AutoSize: False
    BackColor: Gray
    BorderStyle: FixedSingle
    ForeColor: White
    TextAlign: MiddleLeft
    Label Tag Number:
    TextBox   txtTagNumber
    Label Car Condition:
    ComboBox   cbxCarConditions Sorted: True
    Items:
    Needs Repair
    Drivable
    Excellent
    Label Make:
    TextBox   txtMake
    Label Model:
    TextBox   txtModel
    Label Year:
    TextBox   txtCarYear
    label Tank Level:
    ComboBox   cbxTankLevels Empty
    1/4 Empty
    1/2 Full
    3/4 Full
    Full
    Label Mileage Start:
    TextBox   txtMileageStart TextAlign: Right
    Label Mileage End:
    TextBox   txtMileageEnd TextAlign: Right
    Label Order Timing   AutoSize: False
    BackColor: Gray
    BorderStyle: FixedSingle
    ForeColor: White
    TextAlign: MiddleLeft
    Label Start Date:
    DateTimePicker   dtpStartDate
    Label End Date:
    DateTimePicker   dtpEndDate
    Label Days:
    TextBox 0 txtDays TextAlign: Right
    Label Order Status
    ComboBox   cbxOrderStatus Items:
    Car On Road
    Car Returned
    Order Reserved
    Label Order Evaluation   AutoSize: False
    BackColor: Gray
    BorderStyle: FixedSingle
    ForeColor: White
    TextAlign: MiddleLeft
    Label Rate Applied:
    TextBox 0.00 txtRateApplied TextAlign: Right
    Button Rental Rates btnRentalRates
    Label Sub-Total:
    TextBox 0.00 txtSubTotal TextAlign: Right
    Button Calculate btnCalculate
    Label Tax Rate:
    TextBox 7.75 txtTaxRate TextAlign: Right
    Label %
    Button Save btnSave
    Label Tax Amount:
    TextBox 0.00 txtTaxAmount TextAlign: Right
    Button Print... btnPrint
    Label Order Total:
    TextBox 0.00 txtOrderTotal TextAlign: Right
    Button Print Preview... btnPrintPreview
    Label Receipt #:
    TextBox 0 txtReceiptNumber
    Button Open btnOpen
    Button New Rental Order/Reset btnNewRentalOrder
    Button Close btnClose
  48. Right-click the form and click View Code
  49. In the Class Name combo box, select dtpStartDate
  50. In the Method Name combo box, selectValueChanged and implement the event as follows:
    Private Sub dtpStartDateValueChanged(ByVal sender As Object,
                                          ByVal e As System.EventArgs)
                                          Handles dtpStartDate.ValueChanged
            dtpEndDate.Value = dtpStartDate.Value
    End Sub
  51. In the Class Name combo box, select dtpEndDate
  52. In the Method Name combo box, select ValueChanged and implement the event as follows:
    REM This event approximately evaluates the number of days as a
    REM difference between the end date and the starting date
    Private Sub dtpEndDateValueChanged(ByVal sender As Object,
                                        ByVal e As System.EventArgs)
                                        Handles dtpEndDate.ValueChanged
        Dim Days As Integer
        Dim DateStart As DateTime = dtpStartDate.Value
        Dim DateEnd As DateTime = dtpEndDate.Value

        REM Let's calculate the difference in days
        Dim tme As TimeSpan = DateEnd - DateStart
        Days = tme.Days

        REM If the customer returns the car the same day,
        REM we consider that the car was rented for 1 day
        If Days = 0 Then Days = 1

        txtDays.Text = Days
        REM At any case, we will let the clerk specify the actual number of days
    End Sub
  53. In the Class Name combo box, select btnRentalRates
  54. In the Method Name combo box, select Click and implement the event as follows:
    Private Sub btnRentalRatesClick(ByVal sender As Object,
                                         ByVal e As System.EventArgs)
                                         Handles btnRentalRates.Click
        Dim RateViewer As RentalRates = New RentalRates
        RateViewer.Show()
    End Sub
  55. In the Class Name combo box, select btnCalculate
  56. In the Method Name combo box, select Click and implement the event as follows:
    Private Sub btnCalculateClick(ByVal sender As Object,
                                       ByVal e As System.EventArgs)
                                       Handles btnCalculate.Click
            Dim Days As Integer
            Dim RateApplied As Double
            Dim SubTotal As Double
            Dim TaxRate As Double
            Dim TaxAmount As Double
            Dim OrderTotal As Double

            Try
                Days = CInt(txtDays.Text)
            Catch ex As FormatException
                MsgBox("Invalid Number of Days")
            End Try

            Try
                RateApplied = CDbl(txtRateApplied.Text)
            Catch ex As FormatException
                MsgBox("Invalid Amount for Rate Applied")
            End Try

            SubTotal = Days * RateApplied
            txtSubTotal.Text = FormatNumber(SubTotal)

            Try
                TaxRate = CDbl(txtTaxRate.Text)
            Catch ex As FormatException
                MsgBox("Invalid Tax Rate")
            End Try

            TaxAmount = SubTotal * TaxRate / 100
            txtTaxAmount.Text = FormatNumber(TaxAmount)

            OrderTotal = SubTotal + TaxAmount
            txtOrderTotal.Text = FormatNumber(OrderTotal)
    End Sub
  57. Return to the Order Processing form
  58. From the Printing section of the Toolbox, click PrintDocument and click the form
  59. In the Properties window, set its (Name) to docPrint and press Enter
  60. Under the form, double-click docPrint and implement its event as follows:
    Private Sub docPrintPrintPage(ByVal sender As Object,
                ByVal e As System.Drawing.Printing.PrintPageEventArgs)
                                   Handles docPrint.PrintPage
            e.Graphics.DrawLine(New Pen(Color.Black, 2), 80, 90, 750, 90)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 80, 93, 750, 93)

            Dim strDisplay As String = "Bethesda Car Rental"
            Dim fntString As System.Drawing.Font =
    				New Font("Times New Roman", 28,
                                                         FontStyle.Bold)
            e.Graphics.DrawString(strDisplay, fntString,
                                Brushes.Black, 240, 100)

            strDisplay = "Car Rental Order"
            fntString = New System.Drawing.Font("Times New Roman", 22,
                                FontStyle.Regular)
            e.Graphics.DrawString(strDisplay, fntString,
                                Brushes.Black, 320, 150)

            e.Graphics.DrawLine(New Pen(Color.Black, 1), 80, 187, 750, 187)
            e.Graphics.DrawLine(New Pen(Color.Black, 2), 80, 190, 750, 190)

            fntString = New System.Drawing.Font("Times New Roman", 12,
                        FontStyle.Bold)
            e.Graphics.DrawString("Receipt #:  ", fntString,
                        Brushes.Black, 100, 220)
            fntString = New System.Drawing.Font("Times New Roman", 12,
                        FontStyle.Regular)
            e.Graphics.DrawString(txtReceiptNumber.Text, fntString,
                                          Brushes.Black, 260, 220)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 100, 240, 380, 240)

            fntString = New System.Drawing.Font("Times New Roman", 12,
                        FontStyle.Bold)
            e.Graphics.DrawString("Processed By:  ", fntString,
                        Brushes.Black, 420, 220)
            fntString = New System.Drawing.Font("Times New Roman", 12,
                        FontStyle.Regular)
            e.Graphics.DrawString(txtEmployeeName.Text, fntString,
                                          Brushes.Black, 550, 220)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 420, 240, 720, 240)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)

            e.Graphics.FillRectangle(Brushes.Gray,
                                     New Rectangle(100, 260, 620, 20))
            e.Graphics.DrawRectangle(Pens.Black,
                                     New Rectangle(100, 260, 620, 20))

            e.Graphics.DrawString("Customer", fntString,
                                          Brushes.White, 100, 260)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Driver's License #: ", fntString,
                                          Brushes.Black, 100, 300)
            e.Graphics.DrawString("Name: ", fntString,
                                         Brushes.Black, 420, 300)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtDrvLicNumber.Text, fntString,
                                          Brushes.Black, 260, 300)
            e.Graphics.DrawString(txtCustomerName.Text, fntString,
                                          Brushes.Black, 540, 300)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 100, 320, 720, 320)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Address: ", fntString,
                                          Brushes.Black, 100, 330)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtCustomerAddress.Text, fntString,
                                          Brushes.Black, 260, 330)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 100, 350, 720, 350)

            strDisplay = txtCustomerCity.Text & " " &
                                 cbxCustomerStates.Text & " " &
                                 txtCustomerZIPCode.Text
            fntString = New System.Drawing.Font("Times New Roman",
           12, FontStyle.Regular)
            e.Graphics.DrawString(strDisplay, fntString,
                                          Brushes.Black, 260, 360)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 260, 380, 720, 380)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)

            e.Graphics.FillRectangle(Brushes.Gray,
                                     New Rectangle(100, 410, 620, 20))
            e.Graphics.DrawRectangle(Pens.Black,
                                     New Rectangle(100, 410, 620, 20))

            e.Graphics.DrawString("Car Information", fntString,
                                          Brushes.White, 100, 410)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Tag #: ", fntString,
                                          Brushes.Black, 100, 450)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtTagNumber.Text, fntString,
                                          Brushes.Black, 260, 450)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 100, 470, 380, 470)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Year: ", fntString,
                                          Brushes.Black, 420, 450)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtCarYear.Text, fntString,
                                          Brushes.Black, 530, 450)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 420, 470, 720, 470)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Make: ", fntString,
                                          Brushes.Black, 100, 480)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtMake.Text, fntString,
                                      Brushes.Black, 260, 480)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 100, 500, 380, 500)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Model: ", fntString,
                                      Brushes.Black, 420, 480)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtModel.Text, fntString,
                                      Brushes.Black, 530, 480)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 420, 500, 720, 500)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Car Condition: ", fntString,
                                      Brushes.Black, 100, 510)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(cbxCarConditions.Text, fntString,
                                      Brushes.Black, 260, 510)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 100, 530, 380, 530)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Tank Level: ", fntString,
                                      Brushes.Black, 420, 510)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(cbxTankLevels.Text, fntString,
                                      Brushes.Black, 530, 510)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 420, 530, 720, 530)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Mileage Start:", fntString,
                                      Brushes.Black, 100, 540)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtMileageStart.Text, fntString,
                                      Brushes.Black, 260, 540)
            e.Graphics.DrawLine(New Pen(Color.Black, 1),
                                100, 560, 380, 560)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Mileage End:", fntString,
                              Brushes.Black, 420, 540)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtMileageEnd.Text, fntString,
                                  Brushes.Black, 530, 540)
            e.Graphics.DrawLine(New Pen(Color.Black, 1),
                                420, 560, 720, 560)

            e.Graphics.FillRectangle(Brushes.Gray,
                                     New Rectangle(100, 590, 620, 20))
            e.Graphics.DrawRectangle(Pens.Black,
                                     New Rectangle(100, 590, 620, 20))

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Order Timing Information", fntString,
                                  Brushes.White, 100, 590)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Start Date:", fntString,
                                  Brushes.Black, 100, 620)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(dtpStartDate.Value.ToString("D"),
                                  fntString, Brushes.Black, 260, 620)
            e.Graphics.DrawLine(New Pen(Color.Black, 1),
                                100, 640, 720, 640)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("End Date:", fntString,
                                  Brushes.Black, 100, 650)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(dtpEndDate.Value.ToString("D"),
    			      fntString, Brushes.Black, 260, 650)
            e.Graphics.DrawLine(New Pen(Color.Black, 1),
                                100, 670, 520, 670)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Days:", fntString,
                                  Brushes.Black, 550, 650)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtDays.Text, fntString,
                                  Brushes.Black, 640, 650)
            e.Graphics.DrawLine(New Pen(Color.Black, 1),
                                550, 670, 720, 670)

            e.Graphics.FillRectangle(Brushes.Gray,
                                     New Rectangle(100, 700, 620, 20))
            e.Graphics.DrawRectangle(Pens.Black,
                                     New Rectangle(100, 700, 620, 20))

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Order Evaluation", fntString,
                                  Brushes.White, 100, 700)

            Dim fmtString As StringFormat = New StringFormat
            fmtString.Alignment = StringAlignment.Far

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Rate Applied:", fntString,
                                  Brushes.Black, 100, 740)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtRateApplied.Text, fntString,
                                  Brushes.Black, 300, 740, fmtString)
            e.Graphics.DrawLine(New Pen(Color.Black, 1),
                                100, 760, 380, 760)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Tax Rate:", fntString,
                                  Brushes.Black, 420, 740)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtTaxRate.Text, fntString,
                                  Brushes.Black, 640, 740, fmtString)
            e.Graphics.DrawString("%", fntString,
                                  Brushes.Black, 640, 740)
            e.Graphics.DrawLine(New Pen(Color.Black, 1),
                                420, 760, 720, 760)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Sub-Total:", fntString,
                                  Brushes.Black, 100, 770)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtSubTotal.Text, fntString,
                                  Brushes.Black, 300, 770, fmtString)
            e.Graphics.DrawLine(New Pen(Color.Black, 1),
                                100, 790, 380, 790)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Tax Amount:", fntString,
                                  Brushes.Black, 420, 770)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtTaxAmount.Text, fntString,
                                  Brushes.Black, 640, 770, fmtString)
            e.Graphics.DrawLine(New Pen(Color.Black, 1),
                                420, 790, 720, 790)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Order Total:", fntString,
                                  Brushes.Black, 420, 800)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtOrderTotal.Text, fntString,
                                  Brushes.Black, 640, 800, fmtString)
            e.Graphics.DrawLine(New Pen(Color.Black, 1),
                                420, 820, 720, 820)
    End Sub
  61. Return to the Order Processing form
  62. From the Printing section of the Toolbox, click PrintDialog and click the form
  63. In the Properties window, change its Name to dlgPrint
  64. Still in the Properties windows, set its Document property to docPrint
  65. On the Order Processing form, double-click the Print button and implement its event as follows:
    Private Sub btnPrintClick(ByVal sender As Object,
                              ByVal e As System.EventArgs)
                              Handles btnPrint.Click
        If dlgPrint.ShowDialog() = DialogResult.OK Then
            docPrint.Print()
        End If
    End Sub
  66. Return to the Order Processing form
  67. From the Printing section of the Toolbox, click PrintPreviewDialog and click the form
  68. In the Properties window, change its (Name) to dlgPrintPreview
  69. Still in the Properties windows, set its Document property to docPrint
  70. On the Order Processing form, double-click the Print Preview button
  71. Implement the event as follows:
    Private Sub btnPrintPreviewClick(ByVal sender As Object,
                                      ByVal e As System.EventArgs)
                                      Handles btnPrintPreview.Click
        dlgPrintPreview.ShowDialog()
    End Sub
  72. In the Solution Explorer, right-click Form1.vb and click Rename
  73. Type Central.vb and press Enter twice
  74. Design the form as follows:

    Control Text Name
    Button Customers &Rental Orders btnRentalOrders
    Button C&ars btnCars
    Button &Employees btnEmployees
    Button &Customers btnCustomers
    Button C&lose btnClose
  75. Double-click the Rental Orders button and implement its event as follows:
    Private Sub btnRentalOrdersClick(ByVal sender As System.Object,
                                     ByVal e As System.EventArgs)
                                     Handles btnRentalOrders.Click
        Dim dlgOrder As OrderProcessing = New OrderProcessing
        dlgOrder.ShowDialog()
    End Sub
  76. In the Class Name combo box, select btnCars
  77. In the Method Name combo box, select Click and implement the event as follows:
    Private Sub btnCarsClick(ByVal sender As Object,
                                  ByVal e As System.EventArgs)
                                  Handles btnCars.Click
        Dim dlgCars As CarEditor = New CarEditor
        dlgCars.ShowDialog()
    End Sub
  78. In the Class Name combo box, select btnEmployees
  79. In the Method Name combo box, select Click and implement the event as follows:
    Private Sub btnEmployeesClick(ByVal sender As Object,
                                       ByVal e As System.EventArgs)
                                       Handles btnEmployees.Click
        Dim dlgEmployees As Employees = New Employees
        dlgEmployees.ShowDialog()
    End Sub
  80. In the Class Name combo box, select btnCustomers
  81. In the Method Name combo box, select Click and implement the event as follows:
    Private Sub btnCustomersClick(ByVal sender As Object,
                                       ByVal e As System.EventArgs)
                                       Handles btnCustomers.Click
        Dim dlgCustomers As Customers = New Customers
        dlgCustomers.ShowDialog()
    End Sub
  82. In the Class Name combo box, select btnClose
  83. In the Method Name combo box, select Click and implement the event as follows:
    Private Sub btnCloseClick(ByVal sender As Object,
                                   ByVal e As System.EventArgs)
                                   Handles btnClose.Click
        Close()
    End Sub
  84. Save all
  85. In the Solution Explorer, right-click CarEditor.vb and click View Code
  86. In the top section of the file, import the IO and the Binary namespace then declare a variable as follows:
    Imports System.IO
    Imports System.Runtime.Serialization.Formatters.Binary

    Public Class CarEditor

        Private ListOfCars As Dictionary(Of String, Car)

  87. In the Class Name combo box, select (CarEditor Events)
  88. In the Method Name combo box, select Load and implement the event as follows:
    Private Sub CarEditorLoad(ByVal sender As Object,
                                   ByVal e As System.EventArgs)
                                   Handles Me.Load
            Dim vehicle As Car = New Car
            Dim StreamCars As FileStream
            Dim FormatterCars As BinaryFormatter = New BinaryFormatter

            REM This is the file that holds the list of items
            Dim Filename As String = "C:\Bethesda Car Rental\Cars.crs"
            lblPictureName.Text = "."

            If File.Exists(Filename) Then
                StreamCars = New FileStream(Filename,
                                            FileMode.Open,
                                            FileAccess.Read,
                                            FileShare.Read)
                Try
                    REM Retrieve the list of cars
                    ListOfCars = CType(FormatterCars.Deserialize(StreamCars),
                                        Dictionary(Of String, Car))
                Finally
                    StreamCars.Close()
                End Try
            Else
                ListOfCars = New Dictionary(Of String, Car)
            End If
    End Sub
  89. In the Solution Explorer, right-click OrderProcessing.vb and click View Code
  90. Make the following changes:
    Imports System.IO
    Imports System.Runtime.Serialization.Formatters.Binary

    Public Class OrderProcessing

        Private ReceiptNumber As Integer
        Private ListOfRentalOrders As SortedList(Of Integer, RentalOrder)
  91. Save all
  92. In the Solution Explorer, right-click CarEditor.vb and click View Code
  93. In the Class Name combo box, select btnSubmit
  94. In the Method Name combo box, select Click and implement the Click event as follows:
    Private Sub btnSubmitClick(ByVal sender As Object,
                                ByVal e As System.EventArgs)
                                Handles btnSubmit.Click
        Dim Vehicle As Car = New Car
        Dim StreamCars As FileStream
        Dim FormatterCars As BinaryFormatter = New BinaryFormatter

        Directory.CreateDirectory("C:\Bethesda Car Rental")
        Dim strFilename As String = "C:\Bethesda Car Rental\Cars.crs"

        If txtTagNumber.Text.Length = 0 Then
            MsgBox("You must enter the car's tag number")
            Exit Sub
        End If

        If txtMake.Text.Length = 0 Then
            MsgBox("You must specify the car's manufacturer")
            Exit Sub
        End If

        If txtModel.Text.Length = 0 Then
            MsgBox("You must enter the model of the car")
            Exit Sub
        End If

        If txtYear.Text.Length = 0 Then
           MsgBox("You must enter the year of the car")
           Exit Sub
        End If

        REM Create a car
        Vehicle.Make = txtMake.Text
        Vehicle.Model = txtModel.Text
        Vehicle.Year = CInt(txtYear.Text)
        Vehicle.Category = cbxCategories.Text
        Vehicle.HasCDPlayer = chkCDPlayer.Checked
        Vehicle.HasDVDPlayer = chkDVDPlayer.Checked
        Vehicle.IsAvailable = chkAvailable.Checked

        REM Call the Add method of our collection class to add the car
        ListOfCars.Add(txtTagNumber.Text, Vehicle)

        REM Save the list
        StreamCars = New FileStream(strFilename,
                                 FileMode.Create,
                                 FileAccess.Write,
                                 FileShare.Write)

        Try
            FormatterCars.Serialize(StreamCars, ListOfCars)

            If lblPictureName.Text.Length <> 0 Then
                Dim PictureFile As FileInfo = New FileInfo(lblPictureName.Text)
                PictureFile.CopyTo("C:\Bethesda Car Rental\" &
                                  txtTagNumber.Text &
                                  PictureFile.Extension)
            End If

            txtTagNumber.Text = ""
            txtMake.Text = ""
            txtModel.Text = ""
            txtYear.Text = ""
            cbxCategories.Text = "Economy"
            chkCDPlayer.Checked = False
            chkDVDPlayer.Checked = False
            chkAvailable.Checked = False
            lblPictureName.Text = "."
            pbxCar.Image = Nothing

        Finally
            StreamCars.Close()
        End Try
    End Sub
  95. In the Solution Explorer, right-click Customers.vb and click View Code
  96. Make the following changes:
    Imports System.IO
    Imports System.Runtime.Serialization.Formatters.Binary

    Public Class Customers
        Private ListOfCustomers As Dictionary(Of String, Customer)

        Private Sub ShowCustomers()

        End Sub

        Private Sub CustomersLoad(ByVal sender As Object,
                                   ByVal e As System.EventArgs)
                                   Handles Me.Load
            Dim StreamCustomers As FileStream
            ListOfCustomers = New Dictionary(Of String, Customer)
            Dim FormatterCustomers As BinaryFormatter = New BinaryFormatter

            REM This is the file that holds the list of parts
            Dim strFilename As String = "C:\Bethesda Car Rental\Customers.crc"

            If File.Exists(strFilename) Then
                StreamCustomers = New FileStream(strFilename,
                                                         FileMode.Open,
                                                         FileAccess.Read,
                                                         FileShare.Read)

                Try
                    REM Retrieve the list of employees from file
                    ListOfCustomers =
    		    CType(FormatterCustomers.Deserialize(StreamCustomers),
                              Dictionary(Of String, Customer))
                Finally
                    StreamCustomers.Close()
                End Try
            End If

            ShowCustomers()
        End Sub
    End Class
  97. In the Class Name combo box, select btnNewCustomer
  98. In the Method Name combo box, select Click and implement the event as follows:
    Private Sub btnNewCustomerClick(ByVal sender As Object,
                                         ByVal e As System.EventArgs)
                                         Handles btnNewCustomer.Click
            Dim bcrStream As FileStream
            Dim bcrBinary As BinaryFormatter = New BinaryFormatter
            Dim Editor As CustomerEditor = New CustomerEditor

            Directory.CreateDirectory("C:\Bethesda Car Rental")

            If Editor.ShowDialog() = DialogResult.OK Then

                If Editor.txtDrvLicNbr.Text = "" Then

                    MsgBox("You must provide the driver's " &
                                    "license number of the customer")
                    Exit Sub
                End If

                If Editor.txtFullName.Text = "" Then
                    MsgBox("You must provide the employee's full name")
                    Exit Sub
                End If

                Dim strFilename As String = "C:\Bethesda Car Rental\Customers.crc"

                Dim Cust As Customer = New Customer

                Cust.FullName = Editor.txtFullName.Text
                Cust.Address = Editor.txtAddress.Text
                Cust.City = Editor.txtCity.Text
                Cust.State = Editor.cbxStates.Text
                Cust.ZIPCode = Editor.txtZIPCode.Text
                ListOfCustomers.Add(Editor.txtDrvLicNbr.Text, Cust)

                bcrStream = New FileStream(strFilename,
                                           FileMode.Create,
                                           FileAccess.Write,
                                           FileShare.Write)
                bcrBinary.Serialize(bcrStream, ListOfCustomers)
                bcrStream.Close()

                ShowCustomers()
            End If
    End Sub
  99. In the Solution Explorer, right-click Employees.vb and click View Code
  100. Change the file as follows:
    Imports System.IO
    Imports System.Runtime.Serialization.Formatters.Binary

    Public Class Employees
        Private ListOfEmployees As SortedDictionary(Of String, Employee)

        Private Sub ShowEmployees()

        End Sub

        Private Sub EmployeesLoad(ByVal sender As Object,
                                   ByVal e As System.EventArgs)
                                   Handles Me.Load
            Dim StreamEmployees As FileStream
            ListOfEmployees = New SortedDictionary(Of String, Employee)
            Dim FormatterEmployees As BinaryFormatter = New BinaryFormatter

            REM This is the file that holds the list of parts
            Dim strFilename As String = "C:\Bethesda Car Rental\Employees.cre"

            If File.Exists(strFilename) Then
                StreamEmployees = New FileStream(strFilename,
                                                 FileMode.Open,
                                                 FileAccess.Read,
                                                 FileShare.Read)

                Try
                    REM Retrieve the list of employees from file
                    ListOfEmployees =
                        CType(FormatterEmployees.Deserialize(StreamEmployees),
                              SortedDictionary(Of String, Employee))
                Finally
                    StreamEmployees.Close()
                End Try
            End If

            ShowEmployees()
        End Sub
    End Class
  101. In the Class Name combo box, select btnNewEmployee
  102. In the Method Name combo box, select Click and implement the event as follows:
    Private Sub btnNewEmployeeClick(ByVal sender As Object,
                                         ByVal e As System.EventArgs)
                                         Handles btnNewEmployee.Click
            Dim Editor As EmployeeEditor = New EmployeeEditor
            Dim bcrBinary As BinaryFormatter = New BinaryFormatter

            REM If this folder doesn't exist, create it
            Directory.CreateDirectory("C:\Bethesda Car Rental")

            REM Display the Employee Editor dialog box
            REM and find out if the user clicked OK after using it
            If Editor.ShowDialog() = DialogResult.OK Then
                REM If the user didn't provide an employee number
                REM don't do anything
                If Editor.txtEmployeeNumber.Text = "" Then
                    MsgBox("You must provide an employee number")
                    Exit Sub
                End If

                REM If the user didn't provide a last name,
                REM don't do anything
                If Editor.txtLastName.Text = "" Then
                    MsgBox("You must provide the employee's last name")
                    Exit Sub
                End If

                REM Ger a reference to the Employees file if it exists
                Dim strFilename As String = "C:\Bethesda Car Rental\Employees.cre"

                REM Get the values that the user entered in the dialog box
                Dim Empl As Employee = New Employee

                REM Create an employee from those values
                Empl.FirstName = Editor.txtFirstName.Text
                Empl.LastName = Editor.txtLastName.Text
                Empl.Title = Editor.txtTitle.Text
                Empl.HourlySalary = CDbl(Editor.txtHourlySalary.Text)

                REM Add the employee to the main list
                ListOfEmployees.Add(Editor.txtEmployeeNumber.Text, Empl)

                REM Save the current list of employees
                Dim bcrStream As FileStream = New FileStream(strFilename,
                                                       FileMode.Create,
                                                       FileAccess.Write,
                                                       FileShare.Write)
                bcrBinary.Serialize(bcrStream, ListOfEmployees)
                bcrStream.Close()

                REM Display the list of employees
                ShowEmployees()
            End If
    End Sub
  103. In the Solution Explorer, right-click OrderProcessing.vb and click View Code
  104. In the Class Name combo box, select txtDrvLicNumber
  105. In the Method Name combo box, select Leave and implement the event as follows:
    Private Sub txtDrvLicNumberLeave(ByVal sender As Object,
                                          ByVal e As System.EventArgs)
                                          Handles txtDrvLicNumber.Leave
            Dim Renter As Customer
            Dim strDrvLicNumber As String = txtDrvLicNumber.Text
            Dim FormatterCustomers As BinaryFormatter = New BinaryFormatter
            Dim ListOfCustomers As Dictionary(Of String, Customer) =
                    New Dictionary(Of String, Customer)

            REM Make sure the user entered a driver's license number
            If strDrvLicNumber.Length = 0 Then
                MsgBox("You must enter the renter's " &
                                "driver's license number")
                txtDrvLicNumber.Focus()
                Exit Sub
            End If

            REM Get a reference to the file that holds the list of customers
            Dim strFilename As String = "C:\Bethesda Car Rental\Customers.crc"

            REM Find out if that file exists
            If File.Exists(strFilename) Then
                REM If there is a file of customers, open it
                Dim StreamCustomers As FileStream = New FileStream(strFilename,
                                                              FileMode.Open,
                                                              FileAccess.Read,
                                                              FileShare.Read)

                Try
                    REM Retrieve the customers from the file and store
                    REM them in the ListOfCustomers variable
                    ListOfCustomers =
                        CType(FormatterCustomers.Deserialize(StreamCustomers),
                              Dictionary(Of String, Customer))
                    REM Check the list of customers to
    		REM find out if there is a customer
                    REM who has the driver's license number that the user entered
                    If ListOfCustomers.ContainsKey(strDrvLicNumber) = True Then
                        REM If so, get the information about that customer
                        REM and display that information on
    		    REM the Order Processing form
                 For Each Cust As KeyValuePair(Of String, Customer)
    			In ListOfCustomers
                            If Cust.Key = strDrvLicNumber Then
                                Renter = Cust.Value
                                txtCustomerName.Text = Renter.FullName
                                txtCustomerAddress.Text = Renter.Address
                                txtCustomerCity.Text = Renter.City
                                cbxCustomerStates.Text = Renter.State
                                txtCustomerZIPCode.Text = Renter.ZIPCode
                            End If
                 Next
                    Else
                        REM If there is no customer with
    		    REM that driver's license number
                        REM there is nothing to display...
                        txtCustomerName.Text = ""
                        txtCustomerAddress.Text = ""
                        txtCustomerCity.Text = ""
                        cbxCustomerStates.Text = ""
                        txtCustomerZIPCode.Text = ""
                        REM ... and let the user know
                        MsgBox("There is no customer with that driver's " &
                                    "license number in our database")
                        Exit Sub
                    End If
                Finally
                    StreamCustomers.Close()
                End Try
            End If
    End Sub
  106. Access the Employees.vb file and implement the ShowEmployees() procedure as follows:
    Private Sub ShowEmployees()
            If ListOfEmployees.Count = 0 Then
                Exit Sub
            End If

            REM Before displaying the employees, empty the list view
            lvwEmployees.Items.Clear()
            REM This variable will allow us to identify the odd and even indexes
            Dim Counter As Integer = 1

            REM Use the KeyValuePair class to visit each key/value item
            For Each kvp As KeyValuePair(Of String, Employee) In ListOfEmployees
                Dim lviEmployee As ListViewItem = New ListViewItem(kvp.Key)
                Dim empl As Employee = kvp.Value

                lviEmployee.SubItems.Add(empl.FirstName)
                lviEmployee.SubItems.Add(empl.LastName)
                lviEmployee.SubItems.Add(empl.FullName)
                lviEmployee.SubItems.Add(empl.Title)
                lviEmployee.SubItems.Add(FormatNumber(empl.HourlySalary))

                If Counter Mod 2 = 0 Then
                    lviEmployee.BackColor = Color.FromArgb(255, 128, 0)
                    lviEmployee.ForeColor = Color.White
                Else

                    lviEmployee.BackColor = Color.FromArgb(128, 64, 64)
                    lviEmployee.ForeColor = Color.White
                End If

                lvwEmployees.Items.Add(lviEmployee)
                Counter = Counter + 1
            Next
    End Sub
  107. Access the Customers.vb file and implement the ShowCustomers() method as follows:
    Private Sub ShowCustomers()
            Dim Counter As Integer
            If ListOfCustomers.Count = 0 Then
                Exit Sub
            End If

            lvwCustomers.Items.Clear()
            Counter = 1

            For Each kvp As KeyValuePair(Of String, Customer) In ListOfCustomers

                Dim lviCustomer As ListViewItem = New ListViewItem(kvp.Key)

                Dim Cust As Customer = kvp.Value

                lviCustomer.SubItems.Add(Cust.FullName)
                lviCustomer.SubItems.Add(Cust.Address)
                lviCustomer.SubItems.Add(Cust.City)
                lviCustomer.SubItems.Add(Cust.State)
                lviCustomer.SubItems.Add(Cust.ZIPCode)

                If Counter Mod 2 = 0 Then
                    lviCustomer.BackColor = Color.Navy
                    lviCustomer.ForeColor = Color.White
                Else
                    lviCustomer.BackColor = Color.Blue
                    lviCustomer.ForeColor = Color.White
                End If

                lvwCustomers.Items.Add(lviCustomer)
                Counter = Counter + 1
            Next
    End Sub
  108. Execute the application
  109. Click the Cars button and create the cars

    Bethesda Car Rental - Car Editor
  110. Close the Car Editor form
  111. Click the Customers button then click the New Customer button continually and create a few customers as follows:

    Driver's Lic. # State Full Name Address City ZIP Code
    M-505-862-575 MD Lynda Melman 4277 Jamison Avenue Silver Spring 20904
    379-82-7397 DC John Villard 108 Hacken Rd NE Washington 20012
    J-938-928-274 MD Chris Young 8522 Aulage Street Rockville 20852
    497-22-0614 PA Pamela Ulmreck 12075 Famina Rd Blain 17006
    922-71-8395 VA Helene Kapsco 806 Hyena Drive Alexandria 22231
    C-374-830-422 MD Hermine Crasson 6255 Old Georgia Ave Silver Spring 20910
    836-55-2279 NY Alan Pastore 4228 Talion Street Amherst 14228
    397-59-7487 TN Phillis Buster 724 Cranston Circle Knoxville 37919
    115-80-2957 FL Elmus Krazucki 808 Rasters Ave Orlando 32810
    294-90-7744 VA Helena Weniack 10448 Great Pollard Hwy Arlington 22232
  112. Close the Customers form
  113. On the Central form, click the Employees button
  114. Create a few employees as follows:

    Employee # First Name Last Name Title Hourly Salary
    62-845 Patricia Katts General Manager 42.25
    92-303 Henry Larson Sales Representative 12.50
    25-947 Gertrude Monay Sales Representative 14.05
    73-947 Helene Sandt Intern 8.85
    40-508 Melanie Karron Sales Representative 12.75
    22-580 Ernest Chisen Sales Manager 22.95
    20-308 Melissa Roberts Administrative Assistant 15.45
    Employees
    Bethesda Car Rental: Employees
  115. Notice that the list of employees is automatically sorted based on the employees numbers.
    Close the forms and return to your programming environment
  116. In the Solution Explorer, right-click OrderProcessing.vb and click View Code
  117. In the Class Name combo box, select btnNewRentalOrder
  118. In the Method Name combo box, select Click and implement the event as follows:
    Private Sub btnNewRentalOrderClick(ByVal sender As Object,
                                            ByVal e As System.EventArgs)
                                            Handles btnNewRentalOrder.Click
            Dim StreamRentalOrders As FileStream

            txtEmployeeNumber.Text = ""
            txtEmployeeName.Text = ""
            txtDrvLicNumber.Text = ""
            txtCustomerName.Text = ""
            txtCustomerAddress.Text = ""
            txtCustomerCity.Text = ""
            cbxCustomerStates.Text = ""
            txtCustomerZIPCode.Text = ""
            txtTagNumber.Text = ""
            cbxCarConditions.Text = ""
            txtMake.Text = ""
            txtModel.Text = ""
            txtCarYear.Text = ""
            cbxTankLevels.Text = "Empty"
            txtMileageStart.Text = "0"
            txtMileageEnd.Text = "0"
            dtpStartDate.Value = DateTime.Today
            dtpEndDate.Value = DateTime.Today
            txtDays.Text = ""
            cbxOrderStatus.Text = ""
            txtRateApplied.Text = "0.00"
            txtSubTotal.Text = "0.00"
            txtTaxRate.Text = "7.75"
            txtTaxAmount.Text = "0.00"
            txtOrderTotal.Text = "0.00"

            Dim FormatterRentalOrders As BinaryFormatter = New BinaryFormatter()

            Dim Filename As String = "C:\Bethesda Car Rental\RentalOrders.cro"

            If File.Exists(Filename) Then
                StreamRentalOrders = New FileStream(Filename,
                                                    FileMode.Open,
                                                    FileAccess.Read,
                                                    FileShare.Read)

                Try
                    ListOfRentalOrders =
                      CType(FormatterRentalOrders.Deserialize(StreamRentalOrders),
                              SortedList(Of Integer, RentalOrder))
                    ReceiptNumber =
                        ListOfRentalOrders.Keys(ListOfRentalOrders.Count - 1) + 1
                Finally
                    StreamRentalOrders.Close()
                End Try

            Else
                ReceiptNumber = 100001
                ListOfRentalOrders = New SortedList(Of Integer, RentalOrder)
            End If

            txtReceiptNumber.Text = ReceiptNumber
    End Sub
  119. In the Class name combo box, select (OrderProcessing Events)
  120. In the Method Name combo box, select Load and implement the event as follows:
    Private Sub OrderProcessingLoad(ByVal sender As Object,
                                     ByVal e As System.EventArgs)
                                     Handles Me.Load
        btnNewRentalOrderClick(sender, e)
    End Sub
  121. Return to the Order Processing form
  122. In the Class Name combo box, select btnSave
  123. In the Method Name combo box, select Click and implement the event as follows:
    Private Sub btnSaveClick(ByVal sender As Object,
                                  ByVal e As System.EventArgs)
                                  Handles btnSave.Click
            If txtReceiptNumber.Text = "" Then
                MsgBox("The receipt number is missing")
                Exit Sub
            End If

            REM Don't save this rental order if we don't
            REM know who processed it
            If txtEmployeeNumber.Text = "" Then
                MsgBox("You must enter the employee number or the " &
                            "clerk who processed this order.")
                Exit Sub
            End If

            REM Don't save this rental order if we don't
            REM know who is renting the car
            If txtDrvLicNumber.Text = "" Then
                MsgBox("You must specify the driver's license number " &
                            "of the customer who is renting the car")
                Exit Sub
            End If

            REM Don't save the rental order if we don't
            REM know what car is being rented
            If txtTagNumber.Text = "" Then
                MsgBox("You must enter the tag number " &
                            "of the car that is being rented")
                Exit Sub
            End If

            REM Create a rental order based on the information on the form
            Dim CurrentOrder As RentalOrder = New RentalOrder

            CurrentOrder.EmployeeNumber = txtEmployeeNumber.Text
            CurrentOrder.OrderStatus = cbxOrderStatus.Text
            CurrentOrder.CarTagNumber = txtTagNumber.Text
            CurrentOrder.CustomerDrvLicNbr = txtDrvLicNumber.Text
            CurrentOrder.CustomerName = txtCustomerName.Text
            CurrentOrder.CustomerAddress = txtCustomerAddress.Text
            CurrentOrder.CustomerCity = txtCustomerCity.Text
            CurrentOrder.CustomerState = cbxCustomerStates.Text
            CurrentOrder.CustomerZIPCode = txtCustomerZIPCode.Text
            CurrentOrder.CarCondition = cbxCarConditions.Text
            CurrentOrder.TankLevel = cbxTankLevels.Text

            Try
                CurrentOrder.MileageStart = CInt(txtMileageStart.Text)
            Catch ex As FormatException
                MsgBox("Invalid mileage start value")
            End Try

            Try
                CurrentOrder.MileageEnd = CInt(txtMileageEnd.Text)
            Catch ex As FormatException
                MsgBox("Invalid mileage End value")
            End Try

            Try
            CurrentOrder.DateStart = dtpStartDate.Value;
            Catch ex As FormatException
                MsgBox("Invalid start date")
            End Try

            Try
                    CurrentOrder.DateEnd = dtpEndDate.Value;
            Catch ex As FormatException
                MsgBox("Invalid End date")
            End Try

            Try
                CurrentOrder.Days = CInt(txtDays.Text)
            Catch ex As FormatException
                MsgBox("Invalid number of days")
            End Try

            Try
                CurrentOrder.RateApplied = CDbl(txtRateApplied.Text)
            Catch ex As FormatException
                MsgBox("Invalid rate value")
            End Try

            CurrentOrder.SubTotal = CDbl(txtSubTotal.Text)

            Try
                CurrentOrder.TaxRate = CDbl(txtTaxRate.Text)
            Catch ex As FormatException
                MsgBox("Inavlid tax rate")
            End Try

            CurrentOrder.TaxAmount = CDbl(txtTaxAmount.Text)
            CurrentOrder.OrderTotal = CDbl(txtOrderTotal.Text)
            REM The rental order is ready

            REM Get the receipt number from its text box
            Try
                ReceiptNumber = CInt(txtReceiptNumber.Text)
            Catch ex As FormatException
                MsgBox("You must provide a receipt number")
            End Try

            REM Get the list of rental orders and
            REM check if there is already one with the current receipt number
            REM If there is already a receipt number like that...
            If ListOfRentalOrders.ContainsKey(ReceiptNumber) = True Then
                REM Simply update its value
                ListOfRentalOrders(ReceiptNumber) = CurrentOrder
            Else
                REM If there is no order with that receipt,
                REM then create a new rental order
                ListOfRentalOrders.Add(ReceiptNumber, CurrentOrder)
            End If

            REM The list of rental orders
            Dim strFilename As String = "C:\Bethesda Car Rental\RentalOrders.cro"
            Dim bcrStream As FileStream = New FileStream(strFilename,
                                                      FileMode.Create,
                                                      FileAccess.Write,
                                                      FileShare.Write)
            Dim bcrBinary As BinaryFormatter = New BinaryFormatter

            Try
                bcrBinary.Serialize(bcrStream, ListOfRentalOrders)
            Finally

                bcrStream.Close()
            End Try
    End Sub
  124. In the Class Name combo box, select txtEmployeeNumber
  125. In the Method Name combo box, select Leave and implement the event as follows:
    Private Sub txtEmployeeNumberLeave(ByVal sender As Object,
                                            ByVal e As System.EventArgs)
                                            Handles txtEmployeeNumber.Leave
            Dim Clerk As Employee = Nothing
            Dim StreamEmployees As FileStream
            Dim strEmployeeNumber As String = txtEmployeeNumber.Text

            If strEmployeeNumber.Length = 0 Then
                MsgBox("You must enter the employee's number")
                txtEmployeeNumber.Focus()
                Exit Sub
            End If

            Dim ListOfEmployees As SortedDictionary(Of String, Employee) =
                        New SortedDictionary(Of String, Employee)
            Dim FormatterEmployees As BinaryFormatter = New BinaryFormatter

            Dim strFilename As String = "C:\Bethesda Car Rental\Employees.cre"

            If File.Exists(strFilename) Then
                StreamEmployees = New FileStream(strFilename,
                                                         FileMode.Open,
                                                         FileAccess.Read,
                                                         FileShare.Read)
                Try
                    REM Retrieve the list of employees
                    ListOfEmployees =
    		    CType(FormatterEmployees.Deserialize(StreamEmployees),
                                            SortedDictionary(Of String, Employee))

                    If ListOfEmployees.TryGetValue(strEmployeeNumber, Clerk) Then
                        txtEmployeeName.Text = Clerk.FullName
                    Else
                        txtEmployeeName.Text = ""
                        MsgBox("There is no employee with that number")
                        Exit Sub
                    End If
                Finally
                    StreamEmployees.Close()
                End Try
            End If
    End Sub
  126. In the Class Name combo box, select txtTagNumber
  127. In the Method Name combo box, select Leave and implement the event as follows:
    Private Sub txtTagNumberLeave(ByVal sender As Object,
                                       ByVal e As System.EventArgs)
                                       Handles txtTagNumber.Leave
            Dim SelectedCar As Car
            Dim StreamCars As FileStream
            Dim strTagNumber As String = txtTagNumber.Text
            Dim ListOfCars As Dictionary(Of String, Car) =
                          New Dictionary(Of String, Car)
            Dim FormatterCars As BinaryFormatter = New BinaryFormatter()

            If strTagNumber.Length = 0 Then
                MsgBox("You must enter the car's tag number")
                txtTagNumber.Focus()
                Exit Sub
            End If

            Dim strFilename As String = "C:\Bethesda Car Rental\Cars.crs"

            If File.Exists(strFilename) Then
                StreamCars = New FileStream(strFilename,
                                            FileMode.Open,
                                            FileAccess.Read,
                                            FileShare.Read)
                Try
                    REM Retrieve the list of employees from file
                    ListOfCars = CType(FormatterCars.Deserialize(StreamCars),
                                       Dictionary(Of String, Car))

                    If ListOfCars.TryGetValue(strTagNumber, SelectedCar) Then
                        txtMake.Text = SelectedCar.Make
                        txtModel.Text = SelectedCar.Model
                        txtCarYear.Text = SelectedCar.Year
                    Else
                        txtMake.Text = ""
                        txtModel.Text = ""
                        txtCarYear.Text = ""
                        MsgBox("There is no car with that tag " &
                                    "number in our database")
                        Exit Sub
                    End If
                Finally
                    StreamCars.Close()
                End Try
            End If
    End Sub
  128. In the Class Name combo box, select btnOpen
  129. In the Method Name combo box, select Click and implement the event as follows:
    Private Sub btnOpenClick(ByVal sender As Object,
                                  ByVal e As System.EventArgs)
                                  Handles btnOpen.Click
            Dim Order As RentalOrder = Nothing

            If txtReceiptNumber.Text = "" Then
                MsgBox("You must enter a receipt number")
                Exit Sub
            End If

            ReceiptNumber = CInt(txtReceiptNumber.Text)

            If ListOfRentalOrders.TryGetValue(ReceiptNumber, Order) Then
                txtEmployeeNumber.Text = Order.EmployeeNumber
                txtEmployeeNumberLeave(sender, e)
                cbxOrderStatus.Text = Order.OrderStatus
                txtTagNumber.Text = Order.CarTagNumber
                txtTagNumberLeave(sender, e)
                txtDrvLicNumber.Text = Order.CustomerDrvLicNbr
                txtCustomerName.Text = Order.CustomerName
                txtCustomerAddress.Text = Order.CustomerAddress
                txtCustomerCity.Text = Order.CustomerCity
                cbxCustomerStates.Text = Order.CustomerState
                txtCustomerZIPCode.Text = Order.CustomerZIPCode
                cbxCarConditions.Text = Order.CarCondition
                cbxTankLevels.Text = Order.TankLevel
                txtMileageStart.Text = Order.MileageStart
                txtMileageEnd.Text = Order.MileageEnd
                dtpStartDate.Value = Order.DateStart
                dtpEndDate.Value = Order.DateEnd
                txtDays.Text = Order.Days
                txtRateApplied.Text = FormatNumber(Order.RateApplied)
                txtSubTotal.Text = FormatNumber(Order.SubTotal)
                txtTaxRate.Text = FormatNumber(Order.TaxRate)
                txtTaxAmount.Text = FormatNumber(Order.TaxAmount)
                txtOrderTotal.Text = FormatNumber(Order.OrderTotal)
            Else
                MsgBox("There is no rental order with that receipt number")
                Exit Sub
            End If
    End Sub
  130. In the Class Name combo box, select btnClose
  131. In the Method Name combo box, select Click and implement the event as follows:
    Private Sub btnCloseClick(ByVal sender As Object,
                                   ByVal e As System.EventArgs)
                                   Handles btnClose.Click
            Close()
    End Sub
  132. Execute the application
  133. Create a few rental orders and print them

    Bethesda Car Rental: Rental Order
  134. Close the forms and return to your programming environment
  135. Execute the application again
  136. Open a previously created order to simulate a customer returning a car and change some values on the form such as the return date, the mileage end, and the order status
  137. Also click the Calculate button to get the final evaluation

    Bethesda Car Rental: Rental Order
  138. Print the rental orders
  139. Close the forms and return to your programming environment

Exercises



Bethesda Car Rental

  1. Create a Windows Application named BethesdaCarRental1a
    When writing any code that has to do with lists, use a class from the System.Collections namespace
  2. Create a class named Employee that will hold the following pieces of information about each employee: the employee number, the date hired, the first name, the middle name, the last name, the home address, the city, the state, the ZIP (or postal) code, the marital status, the title, the email address, the home telephone number, the cell phone number, the work telephone number, the extension, and the hourly salary
  3. Create a form named EmployeeEditor and design it so that it includes:
    1. A text box for the employee number, the date hired, the first name, the middle name, the last name, the home address, the city, the ZIP (or postal) code, the title, the email address, the home telephone number, the cell phone number, the work telephone number, the extension, and the hourly salary
    2. A combo box for the state (the items must include all US states and all Canadian provinces in 2-letter abbreviation each), the marital status (the items will include Single no Children, Single Parent, Married no Children, Married With Children, Separated, Widow, Other)
  4. Create a form named Employees and that will be used to show some information about each employee of the company, including the employee number, the date hired, the full name (it will consist of the last name, followed by a comma, followed by the first name), the marital status, the title, and the hourly salary


Home Copyright © 2008-2012 FunctionX
