Characteristics of the Font Dialog Box



The Font of a Font Dialog Box

After creating a Font dialog box, you can display it to the user. The dialog box is configured to select a default font, Regular as the default style, and 8 as the default size. If you want, when the dialog box comes up, you can define the font you want it to display. To support this, the FontDialog class is equipped with a property named Font.

At design time, to define the font, click the FontDialog object under the form. In the Properties window, click Font and click its ellipsis button. This would display the Font dialog box. You can make your selections and then click OK. At run time, to specify the font, first create a Font object, and then assign it to the Font property of the FontDialog variable. Here is an example:

Public Sub InitializeComponent()

            Dim fnt As Font = New Font("Garamond", 18.0F, FontStyle.Italic)

            dlgFont = New FontDialog()
            dlgFont.Font = fnt

            dlgFont.ShowDialog()
End Sub

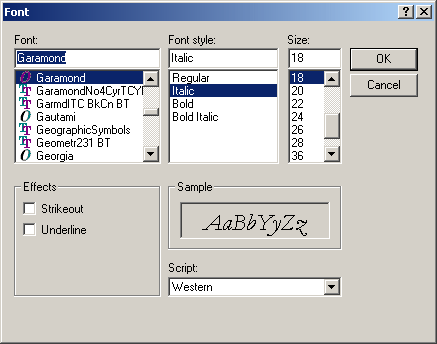

This would produce:

Font

At any time, to make the dialog box display its default values, you can call its Reset() method. The syntax of the Reset() method is:

Public Overrides Sub Reset

On the other hand, after the user has made the selections on the dialog box and clicked OK (or Apply), to get the list of selections the user made, you can get the values of its Font property.

The Apply Button

As you may know already, after making the selections on the dialog box, the user can click OK. In this case, when you call the ShowDialog() method, you can find out whether this method returns DialogResult.OK. If it does, you can get all the returned values of the dialog box to know what changes the user made.

Besides OK and Cancel, you can equip a font dialog box with a button labeled Apply. To support this, the FontDialog class is equipped with a Boolean property named ShowApply. By default, this property is set to false, which means the button would be hidden. If you want to show the button, set this property to true. Here is an example:

Public Sub InitializeComponent()

            dlgFont = New FontDialog()

            dlgFont.ShowApply = True

            dlgFont.ShowDialog()
End Sub

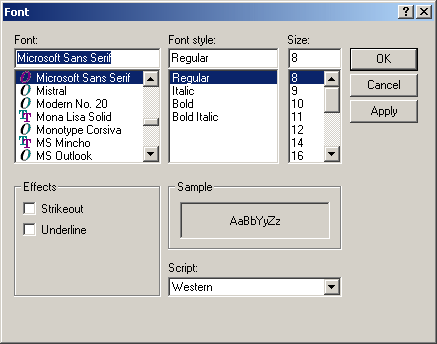

This would produce:

Font

As opposed to the OK button, when the user clicks Apply, the dialog box does not close and therefore (its ShowDialog() method) does not return a DialogResult result. Instead, the dialog box fires an Apply event. This event is of type EventArgs, which means it does not give your information about what the user did (or did not do). Fortunately, to get information about the state or the values of the dialog, you can simply inquire about its various properties and you would get all the information you need without any effort.

The Effects of a Font Dialog Box

We have already mentioned that the Font dialog box can display or not display the Effects group box. This characteristic is controlled by the ShowEffects Boolean property. When this property is set to true, the dialog box would display an Effects group box that contains a Strikeout and an Underline check boxes. If the ShowEffects property is set to false, the whole section would be hidden.

The Color Combo Box

Besides the font definition, you may want the user to apply a color to the font. To support this, the FontDialog class is equipped with the ShowColor Boolean property. By default, this property is set to false. Because the Color combo box is contained in the Effects group box, before being able to display it, you must set the ShowEffects property to true. Then, to show the Color combo box, you can set its property to true.

If the Font dialog box is configured to show the Color combo box, by default, when the dialog box displays, the Color combo box selects the black color. If you want, you can make it display a different color. To do this, at design time, access the Properties window for the FontDialog object, click the arrow of the Color field and select a color. To programmatically specify a color, assign the desired color to the Color property:

Public Sub InitializeComponent()

            Dim fnt As Font = New Font("Garamond", 18.0F, FontStyle.Italic)

            dlgFont = New FontDialog()
            dlgFont.Font = fnt

            dlgFont.ShowColor = True
            dlgFont.Color = Color.Red

            dlgFont.ShowDialog()
End Sub

This would produce:

Font

After using the dialog box, if the user had selected a color and clicked OK (or Apply), to find out the color the user had selected, get the value of the Color property.
