The Types of Nodes of an XML Document



Comments



Manually Creating a Comment

To differentiate the various nodes that belong to an XML file, they are classified by their categories. The types of nodes are listed in the XmlNodeType enumerator. In the previous lessons, we have already studied some of the types of nodes such as the document, the elements, and the attributes.

A comment is a character, a line or a paragraph that is not considered as part of the XML code that needs to be processed. A comment allows you to insert notes or personal observations inside an XML document. For this reason, a commented section can be written any way you like. This means that a comment can include plain text, formulas, expressions, or even XML code as long as you know that that XML code will not be validated: it will ignored by the parser.

To create a comment, you use the following formula:

<!-- Blah Blah Blah ->

Between <!-- and -->, any text in that section is considered a comment and you can include anything you want. Both sections of the comment use two dashes, not more, not less. Here is an example:

<?xml version="1.0" encoding="utf-8"?>
<!-- In this collection, we will keep each title "as is" -->
<videos>
  <video>
    <title>The Distinguished Gentleman</title>
    <director>Jonathan Lynn</director>
    <length>112 Minutes</length>
    <format>DVD</format>
    <rating>R</rating>
  </video>
  <video>
    <title>Her Alibi</title>
    <director>Bruce Beresford</director>
    <length>94 Mins</length>
    <format>DVD</format>
    <rating>PG-13</rating>
  </video>
</videos>

This would produce:

XML Comment Preview

To manually include a comment in your XML loading code, use the same formula seen above. Here are examples:

Imports System.Xml
Imports System.IO

Public Class Exercise

    Private Sub btnCreate_Click(ByVal sender As System.Object, _
                                ByVal e As System.EventArgs) _
                                Handles btnCreate.Click
        Dim docVideo As XmlDocument = New XmlDocument

        docVideo.LoadXml("<?xml version=""1.0"" encoding=""utf-8""?>" & _
                         "<!-- Personal Video Collection -->" & _
                         "<videos>" & _
           "<!-- Each video is defined with various pieces of information -->" & _
                         "<!-- such as the the title and the ISBN, etc" & _
             "<!-- We start representing a video with a video node -->" & _
             "<!-- Most videos have an ISBN, which is an international -->" & _
             "<!-- number that uniquely identifies each (released) video. -->" & _
             "<!-- The title is the official title of the video. -->" & _
                         "<!-- We omitted the small titles/subscript. -->" & _
                         "<!-- The length is provided in minutes. -->" & _
                         "  <video>" & _
                         "    <ISBN>0-7888-1623-3</ISBN>" & _
                         "    <title Screenplay=""Marty Kaplan"">" & _
                         "        The Distinguished Gentleman</title>" & _
                         "    <director>Jonathan Lynn</director>" & _
                         "    <length>112</length>" & _
                         "    <format>DVD</format>" & _
                         "    <rating>R</rating></video>" & _
                         "  <video>" & _
                         "    <ISBN>0-7907-3900-3</ISBN>" & _
                         "        <title WrittenBy=""Charlie Peter"">" & _
                         "              Her Alibi</title>" & _
                         "    <director>Bruce Beresford</director>" & _
                         "    <length>94</length>" & _
                         "    <format>DVD</format>" & _
                         "    <rating>PG-13</rating>" & _
                         "  </video>" & _
                         "</videos>")
        docVideo.Save("videos.xml")
    End Sub
End Class

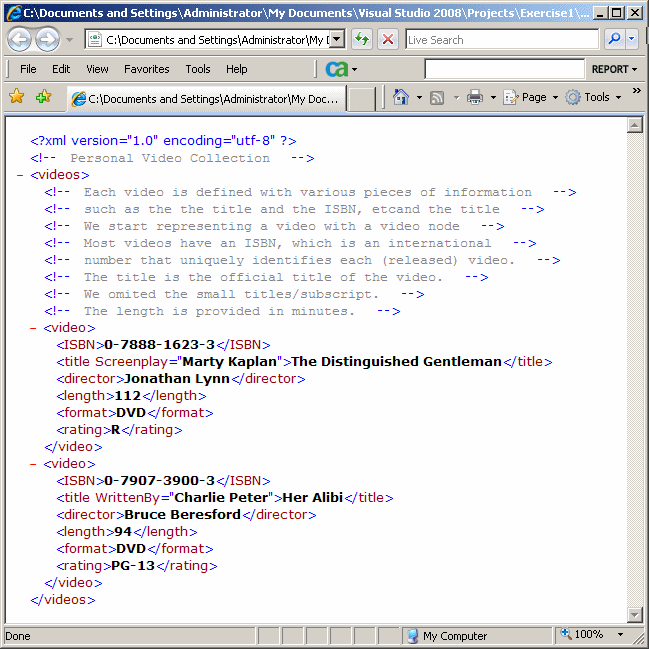

This would produce:

Comment

Programmatically Creating a Comment

You can programmatically create a comment. This makes it possible to let the user specify what text to include as a command, and then create that commented section. The System.Xml represents a comment through the XmlComment class. Like any other part of an XML file, a comment is represented by the XmlComment.Name property. This allows you to retrieve the name of a comment that is included in the document.

To create a comment, you can call the XmlDocument.CreateComment() method. Its syntax is:

Public Overridable Function CreateComment(data As String) As XmlComment

This method takes as argument the text that would go into the commented section. After calling it, if the method succeeds, which it usually does, it returns the XmlComment object that was created. To create a comment, you can add it before the node you want to apply to it. Here are examples:

Imports System.Xml
Imports System.IO

Public Class Exercise

    Private Sub btnCreate_Click(ByVal sender As System.Object, _
                                ByVal e As System.EventArgs) _
                                Handles btnCreate.Click
        Dim Filename As String = "videos.xml"
        Dim Editor As VideoEditor = New VideoEditor
        Dim DOMVideo As XmlDocument = New XmlDocument

        Dim ISBN As String, Title As String
        Dim Director As String, Length As Integer
        Dim Format As String, Rating As String

        ' If a video named videos.xml was created already ...
        If File.Exists(Filename) Then
            ' ... then you will open it
        Else ' If there is no such a video, then create it
            DOMVideo.LoadXml("<?xml version=""1.0"" encoding=""utf-8""?>" & _
                             "<!-- Personal Video Collection -->" & _
                             "<videos></videos>")
            DOMVideo.Save("videos.xml")
        End If

        ' Display the Video Editor dialog box and find out
        ' whether the user clicked the submit button after using it
        If Editor.ShowDialog = Windows.Forms.DialogResult.OK Then
            ' If the user clicked Submit, get the values from the dialog box
            ISBN = Editor.txtISBN.Text
            Title = Editor.txtTitle.Text
            Director = Editor.txtDirector.Text
            Length = CInt(Editor.txtLength.Text)
            Format = Editor.cbxFormats.Text
            Rating = Editor.cbxRatings.Text

            ' Open the videos.xml file
            DOMVideo.Load(Filename)

            ' Get a reference to the root element
            Dim RootElement As XmlElement
            RootElement = DOMVideo.DocumentElement

            ' Create the title element
            Dim VideoParent As XmlElement = DOMVideo.CreateElement("video")
            RootElement.AppendChild(VideoParent)

            ' Create a comment for the ISBN
            Dim strComment As String = "ISBN is an international number used " & _
                                       "to uniquely identify each (released) video"
            Dim CommentElement As XmlComment = DOMVideo.CreateComment(strComment)
            VideoParent.AppendChild(CommentElement)

            ' Create the ISBN element
            Dim ElementISBN As XmlElement = DOMVideo.CreateElement("ISBN")
            Dim TextISBN As XmlText = DOMVideo.CreateTextNode(ISBN)
            VideoParent.AppendChild(ElementISBN)
            VideoParent.LastChild.AppendChild(TextISBN)

            ' Create the title element
            Dim ElementTitle As XmlElement = DOMVideo.CreateElement("title")
            Dim TextTitle As XmlText = DOMVideo.CreateTextNode(Title)
            VideoParent.AppendChild(ElementTitle)
            VideoParent.LastChild.AppendChild(TextTitle)

            ' Create the ISBN element
            Dim ElementDirector As XmlElement = DOMVideo.CreateElement("director")
            Dim TextDirector As XmlText = DOMVideo.CreateTextNode(Director)
            VideoParent.AppendChild(ElementDirector)
            VideoParent.LastChild.AppendChild(TextDirector)

            ' Create a comment for the length
            strComment = "The length of a video is in minutes"
            CommentElement = DOMVideo.CreateComment(strComment)
            VideoParent.AppendChild(CommentElement)

            ' Create the title element
            Dim ElementLength As XmlElement = DOMVideo.CreateElement("length")
            Dim TextLength As XmlText = DOMVideo.CreateTextNode(Length)
            VideoParent.AppendChild(ElementLength)
            VideoParent.LastChild.AppendChild(TextLength)

            ' Create a comment for the length
            strComment = "The available formats are: VHS, DVD, and Blue Ray"
            CommentElement = DOMVideo.CreateComment(strComment)
            VideoParent.AppendChild(CommentElement)

            ' Create the format element
            Dim ElementFormat As XmlElement = DOMVideo.CreateElement("format")
            Dim TextFormat As XmlText = DOMVideo.CreateTextNode(Format)
            VideoParent.AppendChild(ElementFormat)
            VideoParent.LastChild.AppendChild(TextFormat)

            ' Create a comment for the length
            strComment = "The ratings can be G, PG, PG-13, R, N/R, or Unrated"
            CommentElement = DOMVideo.CreateComment(strComment)
            VideoParent.AppendChild(CommentElement)

            ' Create the rating element
            Dim ElementRating As XmlElement = DOMVideo.CreateElement("rating")
            Dim TextRating As XmlText = DOMVideo.CreateTextNode(Rating)
            VideoParent.AppendChild(ElementRating)
            VideoParent.LastChild.AppendChild(TextRating)

            DOMVideo.Save("videos.xml")
        End If
    End Sub
End Class

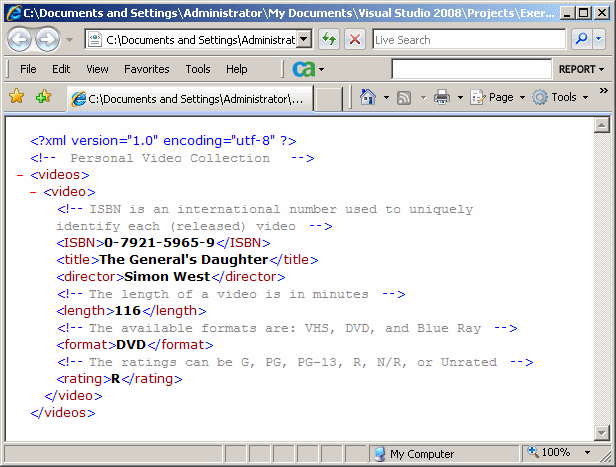

This would produce:

Videos



CDATA



Introduction

Except for comments, the parser is used to "scan" the whole XML file to analyze it. Every tag is then interpreted. As we mentioned already, the value of each tag can be displayed in a browser between its opening and its closing tag, and the browser uses different font styles to make a distinction. When creating some tags and some sections of the file, you may want the parser to consider those particular tags and sections as regular text. That is, you may want the parser to treat a certain tag and its value as if it were regular text even though it is created as an XML file.

Manually Creating a CDATA section

To prevent the parser from interpreting a tag regularly but to treat that tag and its value as regular text, you can create it in a CDATA section. To do this, create a section that starts with <![CDATA[, followed by anything you want, and ending with ]]>. The formula used is:

<!(CDATA( Blah Blah Blah ))>

Between <![CDATA[ and ]]>, you can type anything, including one or more normal XML tags. Here is an example:

<?xml version="1.0" encoding="utf-8"?>
<!-- In this collection, we will keep each title "as is" -->
<videos>
  <![CDATA[<VdoColl>Collection of Videos</VdoColl>]]>
  <video>
	<title>The Distinguished Gentleman</title>
	<director>Jonathan Lynn</director>
	<length>112 Minutes</length>
	<format>DVD</format>
	<rating>R</rating>
  </video>
  <video>
	<title>Her Alibi</title>
	<director>Bruce Beresford</director>
	<length>94 Mins</length>
	<format>DVD</format>
	<rating>PG-13</rating>
  </video>
</videos>

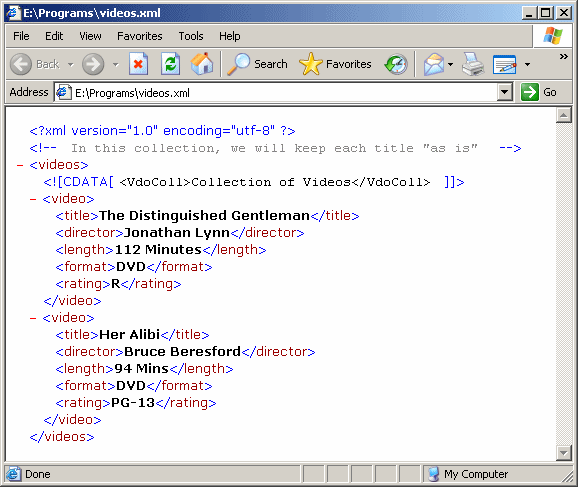

CDATA Section

Programmatically Creating a CDATA section

If you already know the whole content of the XML document you want to create, you can create the CDATA section and include it in the XmlDocument.LoadXml() method. Here is an example:

Imports System.Xml
Imports System.IO

Public Class Exercise

    Private Sub btnCreate_Click(ByVal sender As System.Object, _
                                ByVal e As System.EventArgs) _
                                Handles btnCreate.Click
        Dim docVideo As XmlDocument = New XmlDocument

        docVideo.LoadXml("<?xml version=""1.0"" encoding=""utf-8""?>" & _
                         "<!-- Personal Video Collection -->" & _
                         "<videos>" & _
             "<!-- A typical video of our collection appears as follows: -->" & _
                         "<![CDATA[" & _
                         "<video> " & _
                         "  <ISBN>0--0000-0000-0</ISBN>" & _
                         "  <title>The Video's Title</title>" & _
                 "  <director>The person(s) who directed the video</director>" & _
                         "  <length>The length in minutes</length>" & _
                         "  <format>VHS, DVD, or Blue Ray</format>" & _
                         "  <rating>G, PG, PG-13, R, Unrated, Other</rating>" & _
                         "</video> ]]>" & _
                         "  <video>" & _
                         "    <ISBN>0-7888-1623-3</ISBN>" & _
                         "    <title Screenplay=""Marty Kaplan"">" & _
                         "        The Distinguished Gentleman</title>" & _
                         "    <director>Jonathan Lynn</director>" & _
                         "    <length>112</length>" & _
                         "    <format>DVD</format>" & _
                         "    <rating>R</rating></video>" & _
                         "  <video>" & _
                         "    <ISBN>0-7907-3900-3</ISBN>" & _
                         "        <title WrittenBy=""Charlie Peter"">" & _
                         "              Her Alibi</title>" & _
                         "    <director>Bruce Beresford</director>" & _
                         "    <length>94</length>" & _
                         "    <format>DVD</format>" & _
                         "    <rating>PG-13</rating>" & _
                         "  </video>" & _
                         "</videos>")
        docVideo.Save("videos.xml")
    End Sub
End Class

You can create a CDATA section at the time you are adding an element to your XML document. The .NET Framework supports the creation of a CDATA section through the XmlCDataSection class. This class is equipped with a Name property that allows you t retrieve the name of a CDATA section in an XmlDocument object.

To programmatically create a CDATA section, you can call the XmlDocument.CreateCDataSection() method. Its syntax is:

Public Overridable Function CreateCDataSection ( _
	data As String _
) As XmlCDataSection

This method receives the content of the CDATA section as argument. If the method succeeds, which it usually does, it returns an XmlCDataSection value.
