Microsoft Visual Basic Example Application: Georgetown Dry Cleaner



Introduction

This application is used to explore the techniques of managing XML elements. It is an application used by a dry cleaning store, registering orders and updating them when there is a change such as the clothes being ready for pick up or the customer picking up the clothes.

Besides the ability to create orders, this application allows the user to print an order.



Practical Learning: Introducing Element Location

  1. Start Microsoft Visual Basic and create a Windows Forms Application named GeorgetownDryCleaner2
  2. In the Solution Explorer, right-click Form1.vb and click Rename
  3. Type Central.vb and press Enter

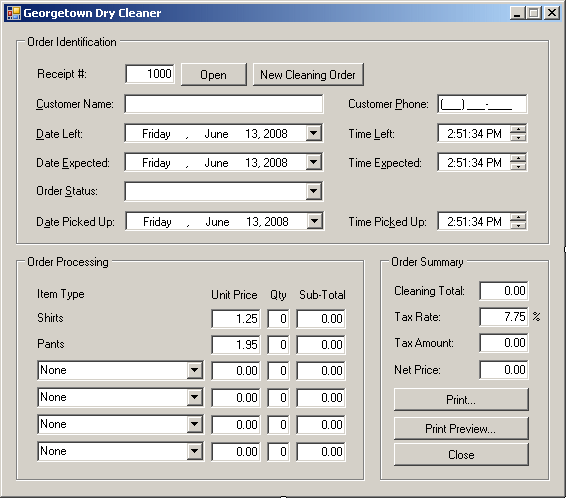

  4. Design the form as follows:

    Georgetown Dry Cleaner

    Control Name Text Additional Properties
    GroupBox GroupBox   Order Identification
    Label Label   &Receipt #:
    TextBox TextBox txtReceiptNumber 1000 TextAlign: Right
    Button Button btnOpen Open
    Button Button btnNewCleaningOrder New Cleaning Order
    Label Label   Customer Name:
    TextBox TextBox txtCustomerName
    Label Label   Customer Phone:
    MaskedTextBox TextBox txtCustomerPhone   Mask: (999) 000-0000
    Label Label   Date Left:
    DateTimePicker DateTimePicker dtpDateLeft
    Label Label   Time Left:
    DateTimePicker Date Time Picker dtpTimeLeft   Format: Time
    Label Label   Date Expected:
    DateTimePicker DateTimePicker dtpDateExpected
    Label Label   Time Expected:
    DateTimePicker DateTimePicker dtpTimeExpected   Format: Time
    Label Label   Order &Status:
    ComboBox ComboBox cbxOrderStatus
    Label Label   D&ate Picked Up:
    DateTimePicker DateTimePicker dtpDatePickedUp
    Label Label   Time Pic&kep Up:
    DateTimePicker DateTimePicker dtpTimePickedUp
    GroupBox GroupBox   Order Processing
    Label Label   Item Type
    Label Label   Unit Price
    Label Label   Qty
    Label Label   Sub Total
    Label Label   Shirts
    TextBox TextBox txtUnitPriceShirts 1.25 TextAlign: Right
    TextBox TextBox txtQuantityShirts 0 TextAlign: Right
    TextBox TextBox txtSubTotalShirts 0.00 TextAlign: Right
    Label Label   Pants
    TextBox TextBox txtUnitPricePants 1.95 TextAlign: Right
    TextBox TextBox txtQuantityPants   TextAlign: Right
    TextBox TextBox txtSubTotalPants 0.00 TextAlign: Right
    ComboBox ComboBox cbxNameItem1 None Items:
    None
    Women Suit
    Dress
    Regular Skirt
    Skirt With Hook
    Men's Suit 2Pc
    Men's Suit 3Pc
    Sweaters
    Silk Shirt
    Tie
    Coat
    Jacket
    Swede
    TextBox TextBox txtUnitPriceItem1 0.00 TextAlign: Right
    TextBox TextBox txtQuantityItem1 0 TextAlign: Right
    TextBox TextBox txtSubTotalItem1 0.00 TextAlign: Right
    ComboBox ComboBox cbxNameItem2 None Items:
    None
    Women Suit
    Dress
    Regular Skirt
    Skirt With Hook
    Men's Suit 2Pc
    Men's Suit 3Pc
    Sweaters
    Silk Shirt
    Tie
    Coat
    Jacket
    Swede
    TextBox TextBox txtUnitPriceItem2 0.00 TextAlign: Right
    TextBox TextBox txtQuantityItem2 0 TextAlign: Right
    TextBox TextBox txtSubTotalItem2 0.00 TextAlign: Right
    ComboBox ComboBox cbxNameItem3 None Items:
    None
    Women Suit
    Dress
    Regular Skirt
    Skirt With Hook
    Men's Suit 2Pc
    Men's Suit 3Pc
    Sweaters
    Silk Shirt
    Tie
    Coat
    Jacket
    Swede
    TextBox TextBox txtUnitPriceItem3 0.00 TextAlign: Right
    TextBox TextBox txtQuantityItem3 0 TextAlign: Right
    TextBox TextBox txtSubTotalItem3 0.00 TextAlign: Right
    ComboBox ComboBox cbxNameItem4 None Items:
    None
    Women Suit
    Dress
    Regular Skirt
    Skirt With Hook
    Men's Suit 2Pc
    Men's Suit 3Pc
    Sweaters
    Silk Shirt
    Tie
    Coat
    Jacket
    Swede
    TextBox TextBox txtUnitPriceItem4 0.00 TextAlign: Right
    TextBox TextBox txtQuantityItem4 0 TextAlign: Right
    TextBox TextBox txtSubTotalItem4 0.00 TextAlign: Right
    GroupBox GroupBox   Order Summary
    Label Label   Cleaning Total:
    TextBox TextBox txtCleaningTotal 0.00 TextAlign: Right
    Label Label   Tax Rate:
    TextBox TextBox txtTaxRate 7.75 TextAlign: Right
    Label Label   %
    Label Label   Tax Amount:
    TextBox TextBox txtTaxAmount 0.00 TextAlign: Right
    Label Label   Net Total:
    TextBox TextBox txtNetPrice 0.00 TextAlign: Right
    Button Button btnPrint Print...
    Button Button btnPrintPreview Print Preview...
    Button Button btnClose Close
  5. Double-click the Time Left control and implement its ValueChanged event as follows:

    Imports System.IO
    Imports System.Xml

    Public Class Central

        Private Sub dtpTimeLeft_ValueChanged(ByVal sender As System.Object, _
                                             ByVal e As System.EventArgs) _
                                             Handles dtpTimeLeft.ValueChanged
            Dim DateLeft As Date = dtpDateLeft.Value
            Dim TimeLeft As Date = dtpTimeLeft.Value

            Dim Time9AM As Date = New DateTime(TimeLeft.Year, _
                                               TimeLeft.Month, _
                                               TimeLeft.Day, 9, 0, 0)

            ' If the customer leaves clothes before 9AM...
            If TimeLeft <= Time9AM Then
                ' ... then they should be ready the same day after 5PM
                dtpDateExpected.Value = DateLeft
                dtpTimeExpected.Value = New DateTime(DateLeft.Year, _
                                                     DateLeft.Month, _
                                                     DateLeft.Day, 17, 0, 0)
            Else
                ' If the clothes were left after 9AM,
                ' then they will be available
                ' the following business morning at 8AM
                ' If the following day is Sunday,
                ' then they will be ready the following Monday
                If DateLeft.DayOfWeek = DayOfWeek.Saturday Then
                    dtpDateExpected.Value = DateLeft.AddDays(2D)
                    dtpTimeExpected.Value = New DateTime(DateLeft.Year, _
                                                         DateLeft.Month, _
                                                     DateLeft.Day + 2, 8, 0, 0)
                Else
                    dtpDateExpected.Value = New DateTime(DateLeft.Year, _
                                                         DateLeft.Month, _
                                                         DateLeft.Day + 1)
                    dtpTimeExpected.Value = New DateTime(DateLeft.Year, _
                                                         DateLeft.Month, _
                                                     DateLeft.Day + 1, 8, 0, 0)
                End If
            End If
        End Sub
    End Sub
  6. Return to the form
  7. From the Printing section of the Toolbox, click PrintDocument and click the form
  8. While the new control is still selected, in the Properties window, click the Properties button, click (Name), type docPrint and press Enter
  9. Under the form, double-click docPrint and implement its event as follows:

    Private Sub docPrint_PrintPage(ByVal sender As System.Object, _
                       ByVal e As System.Drawing.Printing.PrintPageEventArgs) _
                                   Handles docPrint.PrintPage
            e.Graphics.DrawLine(New Pen(Color.Black, 2), 60, 90, 720, 90)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 60, 93, 720, 93)

            Dim strDisplay As String = "Georgetown Dry Cleaner"
            Dim fntString As System.Drawing.Font = _
                    New Font("Times New Roman", 28, _
                        FontStyle.Bold)
            e.Graphics.DrawString(strDisplay, fntString, _
                        Brushes.Black, 120, 100)

            strDisplay = "Customer Cleaning Order"
            fntString = New System.Drawing.Font("Times New Roman", 18, _
                        FontStyle.Bold)
            e.Graphics.DrawString(strDisplay, fntString, _
                        Brushes.Black, 220, 150)

            e.Graphics.DrawLine(New Pen(Color.Black, 1), 60, 184, 720, 184)
            e.Graphics.DrawLine(New Pen(Color.Black, 2), 60, 188, 720, 188)

            fntString = New System.Drawing.Font("Times New Roman", 12, _
                        FontStyle.Bold)
            e.Graphics.DrawString("", fntString, _
                        Brushes.Black, 80, 200)

            fntString = New System.Drawing.Font("Times New Roman", 12, _
                        FontStyle.Bold)
            e.Graphics.DrawString("Customer Identification:  ", fntString, _
                        Brushes.Black, 100, 220)
            fntString = New System.Drawing.Font("Times New Roman", 12, _
                        FontStyle.Regular)
            e.Graphics.DrawString(txtCustomerName.Text & "  -  " & _
                                          txtCustomerPhone.Text, fntString, _
                                          Brushes.Black, 300, 220)

            e.Graphics.DrawLine(New Pen(Color.Black, 1), 100, 240, 700, 240)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Date Left:        ", fntString, _
                                          Brushes.Black, 100, 260)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)

            e.Graphics.DrawString(dtpDateLeft.Value.ToString("D"), fntString, _
                                          Brushes.Black, 300, 260)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 100, 280, 700, 280)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Time Left: ", fntString, _
                                          Brushes.Black, 500, 260)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(dtpTimeLeft.Value.ToString("t"), fntString, _
                                          Brushes.Black, 620, 260)

            fntString = New System.Drawing.Font("Times New Roman", _
             12, FontStyle.Bold)
            e.Graphics.DrawString("Date Expected:    ", fntString, _
                        Brushes.Black, 100, 300)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(dtpDateExpected.Value.ToString("D"), _
             fntString, Brushes.Black, 300, 300)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Time Expected: ", fntString, _
                                          Brushes.Black, 500, 300)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(dtpTimeExpected.Value.ToString("t"), _
             fntString, Brushes.Black, 620, 300)

            e.Graphics.DrawLine(New Pen(Color.Black, 2), 100, 320, 700, 320)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Item Type", _
                                      fntString, Brushes.Black, 140, 350)
            e.Graphics.DrawString("Unit Price", _
                                      fntString, Brushes.Black, 300, 350)
            e.Graphics.DrawString("Quantity", _
                                      fntString, Brushes.Black, 405, 350)
            e.Graphics.DrawString("Sub-Total", _
                                      fntString, Brushes.Black, 500, 350)

            e.Graphics.DrawLine(New Pen(Color.Black, 2), 140, 370, 640, 370)

            Dim fmtString As StringFormat = New StringFormat
            fmtString.Alignment = StringAlignment.Far

            e.Graphics.DrawString("Shirts", _
                                      fntString, Brushes.Black, 150, 380)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtUnitPriceShirts.Text, fntString, _
                        Brushes.Black, 350, 380, fmtString)
            e.Graphics.DrawString(txtQuantityShirts.Text, fntString, _
                        Brushes.Black, 440, 380, fmtString)
            e.Graphics.DrawString(txtSubTotalShirts.Text, fntString, _
                        Brushes.Black, 550, 380, fmtString)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 140, 400, 640, 400)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString("Pants", _
                                          fntString, Brushes.Black, 150, 410)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtUnitPricePants.Text, fntString, _
                        Brushes.Black, 350, 410, fmtString)
            e.Graphics.DrawString(txtQuantityPants.Text, fntString, _
                        Brushes.Black, 440, 410, fmtString)
            e.Graphics.DrawString(txtSubTotalPants.Text, fntString, _
                        Brushes.Black, 550, 410, fmtString)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 140, 430, 640, 430)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString(cbxNameItem1.Text, _
                                          fntString, Brushes.Black, 150, 440)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtUnitPriceItem1.Text, fntString, _
                        Brushes.Black, 350, 440, fmtString)
            e.Graphics.DrawString(txtQuantityItem1.Text, fntString, _
                        Brushes.Black, 440, 440, fmtString)
            e.Graphics.DrawString(txtSubTotalItem1.Text, fntString, _
                        Brushes.Black, 550, 440, fmtString)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 140, 460, 640, 460)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString(cbxNameItem2.Text, _
                                          fntString, Brushes.Black, 150, 470)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtUnitPriceItem2.Text, fntString, _
                        Brushes.Black, 350, 470, fmtString)
            e.Graphics.DrawString(txtQuantityItem2.Text, fntString, _
                        Brushes.Black, 440, 470, fmtString)
            e.Graphics.DrawString(txtSubTotalItem2.Text, fntString, _
                        Brushes.Black, 550, 470, fmtString)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 140, 490, 640, 490)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString(cbxNameItem3.Text, _
                                          fntString, Brushes.Black, 150, 500)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtUnitPriceItem3.Text, fntString, _
                        Brushes.Black, 350, 500, fmtString)
            e.Graphics.DrawString(txtQuantityItem3.Text, fntString, _
                        Brushes.Black, 440, 500, fmtString)
            e.Graphics.DrawString(txtSubTotalItem3.Text, fntString, _
                        Brushes.Black, 550, 500, fmtString)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), 140, 520, 640, 520)

            fntString = New Font("Times New Roman", 12, FontStyle.Bold)
            e.Graphics.DrawString(cbxNameItem4.Text, _
                        fntString, Brushes.Black, 150, 530)
            fntString = New Font("Times New Roman", 12, FontStyle.Regular)
            e.Graphics.DrawString(txtUnitPriceItem4.Text, fntString, _
                        Brushes.Black, 350, 530, fmtString)
            e.Graphics.DrawString(txtQuantityItem4.Text, fntString, _
                        Brushes.Black, 440, 530, fmtString)
            e.Graphics.DrawString(txtSubTotalItem4.Text, fntString, _
                        Brushes.Black, 550, 530, fmtString)
            e.Graphics.DrawLine(New Pen(Color.Black, 2), 140, 550, 640, 550)

            fntString = New System.Drawing.Font("Times New Roman", 12, _
             FontStyle.Bold)
            e.Graphics.DrawString("Order Summary", fntString, _
                                  Brushes.Black, 260, 600)
            e.Graphics.DrawLine(New Pen(Color.Black, 2), 220, 620, 560, 620)

            fntString = New System.Drawing.Font("Times New Roman", _
             10, FontStyle.Bold)
            e.Graphics.DrawString("Cleaning Total:", fntString, _
                                  Brushes.Black, 260, 630)
            fntString = New System.Drawing.Font("Times New Roman", _
             10, FontStyle.Regular)
            e.Graphics.DrawString(txtCleaningTotal.Text, fntString, _
                                  Brushes.Black, 440, 630, fmtString)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), _
           220, 650, 520, 650)

            fntString = New System.Drawing.Font("Times New Roman", _
             10, FontStyle.Bold)
            e.Graphics.DrawString("Tax Rate:", fntString, _
                                  Brushes.Black, 260, 660)
            fntString = New System.Drawing.Font("Times New Roman", _
             10, FontStyle.Regular)
            e.Graphics.DrawString(txtTaxRate.Text, fntString, _
                                  Brushes.Black, 440, 660, fmtString)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), _
           220, 680, 520, 680)

            fntString = New System.Drawing.Font("Times New Roman", _
             10, FontStyle.Bold)
            e.Graphics.DrawString("Tax Amount:", fntString, _
                                  Brushes.Black, 260, 690)
            fntString = New System.Drawing.Font("Times New Roman", _
             10, FontStyle.Regular)
            e.Graphics.DrawString(txtTaxAmount.Text, fntString, _
                           Brushes.Black, 440, 690, fmtString)
            e.Graphics.DrawLine(New Pen(Color.Black, 1), _
           220, 710, 520, 710)

            fntString = New System.Drawing.Font("Times New Roman", _
             10, FontStyle.Bold)
            e.Graphics.DrawString("Net Price:", fntString, _
                        Brushes.Black, 260, 720)
            fntString = New System.Drawing.Font("Times New Roman", _
             10, FontStyle.Regular)
            e.Graphics.DrawString(txtNetPrice.Text, fntString, _
                        Brushes.Black, 440, 720, fmtString)
            e.Graphics.DrawLine(New Pen(Color.Black, 2), _
           200, 740, 560, 740)
    End Sub
  10. Return to the form
  11. From the Printing section of the Toolbox, click PrintDialog and click the form
  12. In the Properties window, change its Name to dlgPrint
  13. Still in the Properties windows, set its Document property to docPrint
  14. On the form, double-click the Print button and implement the event as follows:

    Private Sub btnPrint_Click(ByVal sender As System.Object, _
                                   ByVal e As System.EventArgs) _
                                   Handles btnPrint.Click
            If dlgPrint.ShowDialog() = DialogResult.OK Then
                docPrint.Print()
            End If
    End Sub
  15. Return to the form
  16. From the Printing section of the Toolbox, click PrintPreviewDialog and click the form
  17. In the Properties window, change its Name to dlgPrintPreview
  18. Still in the Properties windows, set its Document property to docPrint
  19. On the form, double-click File the btnPrintPreview button and implement the event as follows:

    Private Sub btnPrintPreview_Click(ByVal sender As System.Object, _
                                          ByVal e As System.EventArgs) _
                                          Handles btnPrintPreview.Click
            dlgPrintPreview.ShowDialog()
    End Sub
  20. Save the file
  21. In the Class Name combo box, select btnNewCleaningOrder
  22. In the Method Name combo box, select Click and implement the event as follows:

    Private Sub btnNewCleaningOrder_Click(ByVal sender As Object, _
                                              ByVal e As System.EventArgs) _
                                              Handles btnNewCleaningOrder.Click
            Dim ReceiptNumber As Integer = 1000
            Dim DOMCleaningOrders As XmlDocument = New XmlDocument
            Directory.CreateDirectory("C:\Georgetown Dry Cleaner")
            Dim Filename As String = _
                        "C:\Georgetown Dry Cleaner\cleaningorders.xml"

            ' If some payments were previously made
            If File.Exists(Filename) Then
                ' Open the payments.xml file
                DOMCleaningOrders.Load(Filename)

                ' Locate the root element
                Dim CleaningOrderElement As XmlElement = _
                        DOMCleaningOrders.DocumentElement
                ' Get a list of the child nodes
                Dim ListOfCleaningOrders As XmlNodeList = _
                        CleaningOrderElement.ChildNodes

                ' Get the last student number
                ReceiptNumber = _
                    CInt(ListOfCleaningOrders(ListOfCleaningOrders.Count _
                                                   - 1).FirstChild.InnerText)
            End If

            txtReceiptNumber.Text = CStr(ReceiptNumber + 1)

            txtCustomerName.Text = ""
            txtCustomerPhone.Text = ""
            dtpDateLeft.Value = DateTime.Today
            dtpTimeLeft.Value = DateTime.Today
            dtpDateExpected.Value = DateTime.Today
            dtpTimeExpected.Value = DateTime.Today

            cbxOrderStatus.Text = "Not Yet Ready"
            dtpDatePickedUp.Value = DateTime.Today
            dtpTimePickedUp.Value = DateTime.Today

            txtUnitPriceShirts.Text = "1.25"
            txtQuantityShirts.Text = "0"
            txtSubTotalShirts.Text = "0.00"
            txtUnitPricePants.Text = "1.95"
            txtQuantityPants.Text = "0"
            txtSubTotalPants.Text = "0.00"
            cbxNameItem1.Text = "None"
            txtUnitPriceItem1.Text = "0.00"
            txtQuantityItem1.Text = "0"
            txtSubTotalItem1.Text = "0.00"
            cbxNameItem2.Text = "None"
            txtUnitPriceItem2.Text = "0.00"
            txtQuantityItem2.Text = "0"
            txtSubTotalItem2.Text = "0.00"
            cbxNameItem3.Text = "None"
            txtUnitPriceItem3.Text = "0.00"
            txtQuantityItem3.Text = "0"
            txtSubTotalItem3.Text = "0.00"
            cbxNameItem4.Text = "None"
            txtUnitPriceItem4.Text = "0.00"
            txtQuantityItem4.Text = "0"
            txtSubTotalItem4.Text = "0.00"

            txtCleaningTotal.Text = "0.00"
            txtTaxRate.Text = "7.75"
            txtTaxAmount.Text = "0.00"
            txtCleaningTotal.Text = "0.00"

            txtCustomerName.Focus()
    End Sub
  23. In the Class Name combo box, select (Central Events)
  24. In the Method Name combo box, select Load and implement the event as follows:

    Private Sub Central_Load(ByVal sender As Object, _
                                 ByVal e As System.EventArgs) _
                                 Handles Me.Load
        btnNewCleaningOrder_Click(sender, e)
    End Sub
  25. Save the file
  26. In the Class Name combo box, select btnOpen
  27. In the Method Name combo box, select Click and implement the event as follows:

    Private Sub btnOpen_Click(ByVal sender As Object, _
                                  ByVal e As System.EventArgs) _
                                  Handles btnOpen.Click
        Dim Filename As String = _
                    "C:\Georgetown Dry Cleaner\cleaningorders.xml"
        Dim DOMCleaningOrders As XmlDocument = New XmlDocument

        If File.Exists(Filename) Then
            Dim Found As Boolean = False
            DOMCleaningOrders.Load(Filename)
            Dim CleaningOrderElement As XmlElement = _
                            DOMCleaningOrders.DocumentElement
            Dim ListOfCleaningOrders As XmlNodeList = _
                            CleaningOrderElement.ChildNodes

            For i As Integer = 0 To ListOfCleaningOrders.Count - 1
                If ListOfCleaningOrders(i).FirstChild.InnerText = _
                    txtReceiptNumber.Text Then
                    found = True

                    txtCustomerName.Text = _
                        ListOfCleaningOrders(i)("CustomerName").InnerText
                    txtCustomerPhone.Text = _
                            ListOfCleaningOrders(i)("CustomerPhone").InnerText
                    dtpDateLeft.Value = _
                        DateTime.Parse(
    			ListOfCleaningOrders(i)("DateLeft").InnerText)
                    dtpTimeLeft.Value = _
                          DateTime.Parse(
    			ListOfCleaningOrders(i)("TimeLeft").InnerText)
                    dtpDateExpected.Value = _
                      DateTime.Parse(
    			ListOfCleaningOrders(i)("DateExpected").InnerText)
                    dtpTimeExpected.Value = _
                      DateTime.Parse(
    			ListOfCleaningOrders(i)("TimeExpected").InnerText)

                    cbxOrderStatus.Text = _
                            ListOfCleaningOrders(i)("OrderStatus").InnerText
                    dtpDatePickedUp.Value = _
                        DateTime.Parse(
    			ListOfCleaningOrders(i)("DatePickedUp").InnerText)
                    dtpTimePickedUp.Value = _
                        DateTime.Parse(
    			ListOfCleaningOrders(i)("TimePickedUp").InnerText)

                    txtUnitPriceShirts.Text = _
                        ListOfCleaningOrders(i)("UnitPriceShirts").InnerText
                    txtQuantityShirts.Text = _
                            ListOfCleaningOrders(i)("QuantityShirts").InnerText
                    txtSubTotalShirts.Text = _
                            ListOfCleaningOrders(i)("SubTotalShirts").InnerText
                    txtUnitPricePants.Text = _
                            ListOfCleaningOrders(i)("UnitPricePants").InnerText
                    txtQuantityPants.Text = _
                            ListOfCleaningOrders(i)("QuantityPants").InnerText
                    txtSubTotalPants.Text = _
                            ListOfCleaningOrders(i)("SubTotalPants").InnerText

                    cbxNameItem1.Text =
    			ListOfCleaningOrders(i)("NameItem1").InnerText
                        txtUnitPriceItem1.Text = _
                            ListOfCleaningOrders(i)("UnitPriceItem1").InnerText
                        txtQuantityItem1.Text = _
                            ListOfCleaningOrders(i)("QuantityItem1").InnerText
                        txtSubTotalItem1.Text = _
                            ListOfCleaningOrders(i)("SubTotalItem1").InnerText

                    cbxNameItem2.Text =
    			ListOfCleaningOrders(i)("NameItem2").InnerText
                        txtUnitPriceItem2.Text = _
                        ListOfCleaningOrders(i)("UnitPriceItem2").InnerText
                        txtQuantityItem2.Text = _
                            ListOfCleaningOrders(i)("QuantityItem2").InnerText
                        txtSubTotalItem2.Text = _
                            ListOfCleaningOrders(i)("SubTotalItem2").InnerText

                    cbxNameItem3.Text =
    			ListOfCleaningOrders(i)("NameItem3").InnerText
                        txtUnitPriceItem3.Text = _
                            ListOfCleaningOrders(i)("UnitPriceItem3").InnerText
                        txtQuantityItem3.Text = _
                            ListOfCleaningOrders(i)("QuantityItem3").InnerText
                        txtSubTotalItem3.Text = _
                            ListOfCleaningOrders(i)("SubTotalItem3").InnerText

                    cbxNameItem4.Text = _
    			ListOfCleaningOrders(i)("NameItem4").InnerText
                        txtUnitPriceItem4.Text = _
                            ListOfCleaningOrders(i)("UnitPriceItem4").InnerText
                        txtQuantityItem4.Text = _
                            ListOfCleaningOrders(i)("QuantityItem4").InnerText
                        txtSubTotalItem4.Text = _
                            ListOfCleaningOrders(i)("SubTotalItem4").InnerText

                    txtCleaningTotal.Text = _
                        ListOfCleaningOrders(i)("CleaningTotal").InnerText
                    txtTaxRate.Text = _
    			ListOfCleaningOrders(i)("TaxRate").InnerText
                txtTaxAmount.Text = _
    		ListOfCleaningOrders(i)("TaxAmount").InnerText
                    txtNetPrice.Text = _
    			ListOfCleaningOrders(i)("NetPrice").InnerText
                    Exit For
                End If
            Next

            If Found = False Then
                MsgBox("There is no cleaning order with that receipt number")
            End If
        Else
            MsgBox("There is no file that holds the list of cleaning orders")
        End If
    End Sub
  28. Under the above End Sub line, create the following procedure:

    Private Sub SaveCleaningOrder()
        ' This variable will be used to know
        ' if the receipt number already exists in the file
        Dim ReceiptFound As Boolean = False

        ' This variable will be used to know whether we are creating
        ' a new cleaning order or if we are only updating
        ' an existing cleaning order
        Dim ExistingCleaningOrder As XmlNode = Nothing

        Dim ReceiptNumber As Integer = CInt(txtReceiptNumber.Text)
        ' We will need a reference to the DOM
        Dim DOMCleaningOrders As XmlDocument = New XmlDocument
        ' Here is the XML file that holds the cleaning orders
        Dim Filename As String = _
                        "C:\Georgetown Dry Cleaner\cleaningorders.xml"

        ' If there is no receipt number, don't do anything
        If txtReceiptNumber.Text.Length = 0 Then
                MsgBox("The cleaning order cannot be created " & _
                                "because the receipt number is missing")
            Exit Sub
        End If

        ' If the file exists,...
        If File.Exists(Filename) Then
            ' then open it
            DOMCleaningOrders.Load(Filename)
            Dim CleaningOrderElement As XmlElement = _
    		DOMCleaningOrders.DocumentElement
            Dim ListOfCleaningOrders As XmlNodeList = _
    		CleaningOrderElement.ChildNodes

                For i As Integer = 0 To ListOfCleaningOrders.Count - 1
                    Dim Node As XmlNode = ListOfCleaningOrders.Item(i)

                    If ListOfCleaningOrders.Item(i).FirstChild.InnerText = _
                        txtReceiptNumber.Text Then
                        ReceiptFound = True
                        ExistingCleaningOrder = ListOfCleaningOrders(i)
                        ReceiptNumber = _
                            CInt(ExistingCleaningOrder("ReceiptNumber").InnerText)
                        Exit For
                    End If
                Next

                If ReceiptFound = True Then
                    ExistingCleaningOrder("CustomerName").InnerText = _
                                txtCustomerName.Text
                    ExistingCleaningOrder("CustomerPhone").InnerText = _
                                txtCustomerPhone.Text

                    ExistingCleaningOrder("DateLeft").InnerText = _
                                dtpDateLeft.Value.ToString("d")
                    ExistingCleaningOrder("TimeLeft").InnerText = _
                                dtpTimeLeft.Value.ToString("t")
                    ExistingCleaningOrder("DateExpected").InnerText = _
                                dtpDateExpected.Value.ToString("d")
                    ExistingCleaningOrder("TimeExpected").InnerText = _
                        dtpTimeExpected.Value.ToString("t")

                    ExistingCleaningOrder("OrderStatus").InnerText = _
                        cbxOrderStatus.Text
                    ExistingCleaningOrder("DatePickedUp").InnerText = _
                        dtpDatePickedUp.Value.ToString("d")
                    ExistingCleaningOrder("TimePickedUp").InnerText = _
                        dtpTimePickedUp.Value.ToString("t")

                    ExistingCleaningOrder("UnitPriceShirts").InnerText = _
                        txtUnitPriceShirts.Text
                    ExistingCleaningOrder("QuantityShirts").InnerText = _
                        txtQuantityShirts.Text
                    ExistingCleaningOrder("SubTotalShirts").InnerText = _
                        txtSubTotalShirts.Text

                    ExistingCleaningOrder("UnitPricePants").InnerText = _
                        txtUnitPricePants.Text
                    ExistingCleaningOrder("QuantityPants").InnerText = _
                        txtQuantityPants.Text
                    ExistingCleaningOrder("SubTotalPants").InnerText = _
                        txtSubTotalPants.Text

                    ExistingCleaningOrder( _
    			"NameItem1").InnerText = cbxNameItem1.Text
                    ExistingCleaningOrder("UnitPriceItem1").InnerText = _
                        txtUnitPriceItem1.Text
                    ExistingCleaningOrder("QuantityItem1").InnerText = _
                        txtQuantityItem1.Text
                    ExistingCleaningOrder("SubTotalItem1").InnerText = _
                        txtSubTotalItem1.Text

                    ExistingCleaningOrder("NameItem2").InnerText = _
    			cbxNameItem2.Text
                    ExistingCleaningOrder("UnitPriceItem2").InnerText = _
                        txtUnitPriceItem2.Text
                    ExistingCleaningOrder("QuantityItem2").InnerText = _
                        txtQuantityItem2.Text
                    ExistingCleaningOrder("SubTotalItem2").InnerText = _
                        txtSubTotalItem2.Text

                    ExistingCleaningOrder("NameItem3").InnerText = _
    			cbxNameItem3.Text
                    ExistingCleaningOrder("UnitPriceItem3").InnerText = _
                        txtUnitPriceItem3.Text
                    ExistingCleaningOrder("QuantityItem3").InnerText = _
                        txtQuantityItem3.Text
                    ExistingCleaningOrder("SubTotalItem3").InnerText = _
                        txtSubTotalItem3.Text

                    ExistingCleaningOrder("NameItem4").InnerText = _
                        cbxNameItem4.Text
                    ExistingCleaningOrder("UnitPriceItem4").InnerText = _
                        txtUnitPriceItem4.Text
                    ExistingCleaningOrder("QuantityItem4").InnerText = _
                        txtQuantityItem4.Text
                    ExistingCleaningOrder("SubTotalItem4").InnerText = _
                        txtSubTotalItem4.Text

                    ExistingCleaningOrder("CleaningTotal").InnerText = _
                        txtCleaningTotal.Text
                    ExistingCleaningOrder("TaxRate").InnerText = _
                        txtTaxRate.Text
                    ExistingCleaningOrder("TaxAmount").InnerText = _
                        txtTaxAmount.Text
                    ExistingCleaningOrder("NetPrice").InnerText = _
                        txtNetPrice.Text
                Else ' The receipt number was not found.
    		 'So, create a new cleaning order
                    Dim RootElement As XmlElement = _
    			DOMCleaningOrders.DocumentElement
                    Dim NewElement As XmlElement = _
                         DOMCleaningOrders.CreateElement("CleaningOrder")

                    Dim strNewCleaningOrder As String = _
                         "<ReceiptNumber>" & txtReceiptNumber.Text & _
                         "</ReceiptNumber>" & "<CustomerName>" & _
                         txtCustomerName.Text & "</CustomerName>" & _
                         "<CustomerPhone>" & txtCustomerPhone.Text & _
                         "</CustomerPhone>" & "<DateLeft>" & _
                         dtpDateLeft.Value.ToString("d") & "</DateLeft>" & _
                         "<TimeLeft>" & dtpTimeLeft.Value.ToString("t") & _
                         "</TimeLeft>" & "<DateExpected>" & _
                         dtpDateExpected.Value.ToString("d") & _
                         "</DateExpected>" & "<TimeExpected>" & _
                         dtpTimeExpected.Value.ToString("t") & _
                         "</TimeExpected>" & "<OrderStatus>" & _
                         cbxOrderStatus.Text & "</OrderStatus>" & _
                         "<DatePickedUp>" & _
    			dtpDatePickedUp.Value.ToString("d") & _
                         "</DatePickedUp>" & "<TimePickedUp>" & _
                         dtpTimePickedUp.Value.ToString("t") & _
                         "</TimePickedUp>" & "<UnitPriceShirts>" & _
                         txtUnitPriceShirts.Text & "</UnitPriceShirts>" & _
                         "<QuantityShirts>" & txtQuantityShirts.Text & _
                         "</QuantityShirts>" & "<SubTotalShirts>" & _
                         txtSubTotalShirts.Text & "</SubTotalShirts>" & _
                         "<UnitPricePants>" & txtUnitPricePants.Text & _
                         "</UnitPricePants>" & "<QuantityPants>" & _
                         txtQuantityPants.Text & "</QuantityPants>" & _
                         "<SubTotalPants>" & txtSubTotalPants.Text & _
                         "</SubTotalPants>" & "<NameItem1>" & _
                         cbxNameItem1.Text & "</NameItem1>" & _
                         "<UnitPriceItem1>" & txtUnitPriceItem1.Text & _
                         "</UnitPriceItem1>" & "<QuantityItem1>" & _
                         txtQuantityItem1.Text & "</QuantityItem1>" & _
                         "<SubTotalItem1>" & txtSubTotalItem1.Text & _
                         "</SubTotalItem1>" & "<NameItem2>" & _
                         cbxNameItem2.Text & "</NameItem2>" & _
                         "<UnitPriceItem2>" & txtUnitPriceItem2.Text & _
                         "</UnitPriceItem2>" & "<QuantityItem2>" & _
                         txtQuantityItem2.Text & "</QuantityItem2>" & _
                         "<SubTotalItem2>" & txtSubTotalItem2.Text & _
                         "</SubTotalItem2>" & "<NameItem3>" & _
                         cbxNameItem3.Text & "</NameItem3>" & _
                         "<UnitPriceItem3>" & txtUnitPriceItem3.Text & _
                         "</UnitPriceItem3>" & "<QuantityItem3>" & _
                         txtQuantityItem3.Text & "</QuantityItem3>" & _
                         "<SubTotalItem3>" & txtSubTotalItem3.Text & _
                         "</SubTotalItem3>" & "<NameItem4>" & _
                         cbxNameItem4.Text & "</NameItem4>" & _
                         "<UnitPriceItem4>" & txtUnitPriceItem4.Text & _
                         "</UnitPriceItem4>" & "<QuantityItem4>" & _
                         txtQuantityItem4.Text & "</QuantityItem4>" & _
                         "<SubTotalItem4>" & txtSubTotalItem4.Text & _
                         "</SubTotalItem4>" & "<CleaningTotal>" & _
                         txtCleaningTotal.Text & "</CleaningTotal>" & _
                         "<TaxRate>" & txtTaxRate.Text & "</TaxRate>" & _
                         "<TaxAmount>" & txtTaxAmount.Text & "</TaxAmount>" & _
                         "<NetPrice>" & txtNetPrice.Text & "</NetPrice>"

                    NewElement.InnerXml = strNewCleaningOrder
                    DOMCleaningOrders.DocumentElement.AppendChild(NewElement)
                End If

                ' DOMCleaningOrders.Save(strFilename)
                ' If there is no such a file, prepare to create it
        Else REM if NOT File.Exists(strFilename))
            DOMCleaningOrders.LoadXml( _
    		"<?xml version=""1.0"" encoding=""utf-8""?>" & _
                                          "<CleaningOrders></CleaningOrders>")

            Dim RootElement As XmlElement = DOMCleaningOrders.DocumentElement
            Dim CleaningOrderElement As XmlElement = _
    		DOMCleaningOrders.CreateElement("CleaningOrder")
            Dim strNewCleaningOrder As String = _
                        "<ReceiptNumber>" & txtReceiptNumber.Text & _
                        "</ReceiptNumber>" & "<CustomerName>" & _
                        txtCustomerName.Text & "</CustomerName>" & _
                        "<CustomerPhone>" & txtCustomerPhone.Text & _
                        "</CustomerPhone>" & "<DateLeft>" & _
                        dtpDateLeft.Value.ToString("d") & "</DateLeft>" & _
                        "<TimeLeft>" & dtpTimeLeft.Value.ToString("t") & _
                        "</TimeLeft>" & "<DateExpected>" & _
                        dtpDateExpected.Value.ToString("d") & _
                        "</DateExpected>" & "<TimeExpected>" & _
                        dtpTimeExpected.Value.ToString("t") & _
                        "</TimeExpected>" & "<OrderStatus>" & _
                        cbxOrderStatus.Text & "</OrderStatus>" & _
                        "<DatePickedUp>" & dtpDatePickedUp.Value.ToString("d") & _
                        "</DatePickedUp>" & "<TimePickedUp>" & _
                        dtpTimePickedUp.Value.ToString("t") & _
                        "</TimePickedUp>" & "<UnitPriceShirts>" & _
                        txtUnitPriceShirts.Text & "</UnitPriceShirts>" & _
                        "<QuantityShirts>" & txtQuantityShirts.Text & _
                        "</QuantityShirts>" & "<SubTotalShirts>" & _
                        txtSubTotalShirts.Text & "</SubTotalShirts>" & _
                        "<UnitPricePants>" & txtUnitPricePants.Text & _
                        "</UnitPricePants>" & "<QuantityPants>" & _
                        txtQuantityPants.Text & "</QuantityPants>" & _
                        "<SubTotalPants>" & txtSubTotalPants.Text & _
                        "</SubTotalPants>" & "<NameItem1>" & _
                        cbxNameItem1.Text & "</NameItem1>" & _
                        "<UnitPriceItem1>" & txtUnitPriceItem1.Text & _
                        "</UnitPriceItem1>" & "<QuantityItem1>" & _
                        txtQuantityItem1.Text & "</QuantityItem1>" & _
                        "<SubTotalItem1>" & txtSubTotalItem1.Text & _
                        "</SubTotalItem1>" & "<NameItem2>" & _
                        cbxNameItem2.Text & "</NameItem2>" & _
                        "<UnitPriceItem2>" & txtUnitPriceItem2.Text & _
                        "</UnitPriceItem2>" & "<QuantityItem2>" & _
                        txtQuantityItem2.Text & "</QuantityItem2>" & _
                        "<SubTotalItem2>" & txtSubTotalItem2.Text & _
                        "</SubTotalItem2>" & "<NameItem3>" & _
                        cbxNameItem3.Text & "</NameItem3>" & _
                        "<UnitPriceItem3>" & txtUnitPriceItem3.Text & _
                        "</UnitPriceItem3>" & "<QuantityItem3>" & _
                        txtQuantityItem3.Text & "</QuantityItem3>" & _
                        "<SubTotalItem3>" + txtSubTotalItem3.Text & _
                        "</SubTotalItem3>" & "<Item4Name>" & _
                        cbxNameItem4.Text & "</Item4Name>" & _
                        "<UnitPriceItem4>" + txtUnitPriceItem4.Text & _
                        "</UnitPriceItem4>" & "<QuantityItem4>" & _
                        txtQuantityItem4.Text & "</QuantityItem4>" & _
                        "<SubTotalItem4>" & txtSubTotalItem4.Text & _
                        "</SubTotalItem4>" & "<CleaningTotal>" & _
                        txtCleaningTotal.Text & "</CleaningTotal>" & _
                        "<TaxRate>" & txtTaxRate.Text & "</TaxRate>" & _
                        "<TaxAmount>" & txtTaxAmount.Text & "</TaxAmount>" & _
                        "<NetPrice>" & txtNetPrice.Text & "</NetPrice>"

                CleaningOrderElement.InnerXml = strNewCleaningOrder
                DOMCleaningOrders.DocumentElement.AppendChild(CleaningOrderElement)
            End If

            DOMCleaningOrders.Save(Filename)
    End Sub
  29. Under the above End Sub line, implement the following event:

    Private Sub ControlLeave(ByVal sender As Object, _
                                 ByVal e As EventArgs) _
                                 Handles txtUnitPriceShirts.Leave, _
                                         txtQuantityShirts.Leave, _
                                         txtUnitPricePants.Leave, _
                                         txtQuantityPants.Leave, _
                                         txtUnitPriceShirts.Leave, _
                                         txtQuantityPants.Leave, _
                                         txtUnitPriceItem1.Leave, _
                                         txtQuantityItem1.Leave, _
                                         txtUnitPriceItem2.Leave, _
                                         txtQuantityItem2.Leave, _
                                         txtUnitPriceItem3.Leave, _
                                         txtQuantityItem3.Leave, _
                                         txtUnitPriceItem4.Leave, _
                                         txtQuantityItem4.Leave, _
                                         txtTaxRate.Leave
            Dim UnitPriceShirts As Double, UnitPricePants As Double
            Dim UnitPriceItem1 As Double, UnitPriceItem2 As Double
            Dim UnitPriceItem3 As Double, UnitPriceItem4 As Double
            Dim SubTotalShirts As Double, SubTotalPants As Double
            Dim SubTotalItem1 As Double, SubTotalItem2 As Double
            Dim SubTotalItem3 As Double, SubTotalItem4 As Double
            Dim QuantityShirts As Integer = 1, QuantityPants As Integer = 1
            Dim QuantityItem1 As Integer = 1
            Dim QuantityItem2 As Integer = 1, QuantityItem3 As Integer = 1
            Dim QuantityItem4 As Integer = 4
            Dim CleaningTotal As Double = 0.0, TaxRate As Double
            Dim TaxAmount As Double = 0.0, NetPrice As Double

            ' Retrieve the unit price of this item
            ' Just in case the user types an invalid value,
            ' we are using a try...catch
            Try
                UnitPriceShirts = CDbl(txtUnitPriceShirts.Text)
            Catch Exc As FormatException
                MsgBox("The value you entered for the price of " & _
                                "shirts is not valid" & _
                                vbCrLf & "Please try again")
                Exit Sub
            End Try

            ' Retrieve the number of this item
            ' Just in case the user types an invalid value,
            ' we are using a try...catch
            Try
                QuantityShirts = CInt(txtQuantityShirts.Text)
            Catch Exc As FormatException
                MsgBox("The value you entered for the number of " & _
                                "shirts is not valid" & _
                                vbCrLf & "Please try again")
                Exit Sub
            End Try

            Try
                UnitPricePants = CDbl(txtUnitPricePants.Text)
            Catch Exc As FormatException
                MsgBox("The value you entered for the price of " & _
                                "pants is not valid" & _
                                vbCrLf & "Please try again")
                Exit Sub
            End Try

            Try
                QuantityPants = CInt(txtQuantityPants.Text)
            Catch Exc As FormatException
                MsgBox("The value you entered for the number of " & _
                                "pants is not valid" & _
                                vbCrLf & "Please try again")
                Exit Sub
            End Try

            If (cbxNameItem1.Text = "None") Or _
               (cbxNameItem1.Text = "") Then
                QuantityItem1 = 0
                UnitPriceItem1 = 0.0
            Else
                Try
                    UnitPriceItem1 = CDbl(txtUnitPriceItem1.Text)
                Catch Exc As FormatException
                    MsgBox("The value you entered for the price is not valid" & _
                                    vbCrLf & "Please try again")
                    Exit Sub
                End Try

                Try
                    QuantityItem1 = CInt(txtQuantityItem1.Text)
                Catch Exc As FormatException
                    MsgBox("The value you entered is not valid" & _
                                    vbCrLf & "Please try again")
                    Exit Sub
                End Try
            End If

            If (cbxNameItem2.Text = "None") Or _
               (cbxNameItem2.Text = "") Then
                QuantityItem2 = 0
                UnitPriceItem2 = 0.0
            Else
                Try
                    UnitPriceItem2 = CDbl(txtUnitPriceItem2.Text)
                Catch Exc As FormatException
                    MsgBox("The value you entered for " & _
                        "the price is not valid" & _
                                    vbCrLf & "Please try again")
                    Exit Sub
                End Try

                Try
                    QuantityItem2 = CInt(txtQuantityItem2.Text)
                Catch Exc As FormatException
                    MsgBox("The value you entered is not valid" & _
                                    vbCrLf & "Please try again")
                    Exit Sub
                End Try
            End If

            If (cbxNameItem3.Text = "None") Or _
               (cbxNameItem3.Text = "") Then
                QuantityItem3 = 0
                UnitPriceItem3 = 0.0
            Else
                Try
                    UnitPriceItem3 = CDbl(txtUnitPriceItem3.Text)
                Catch Exc As FormatException
                    MsgBox("The value you entered for the " & _
                        "price is not valid" & _
                                    vbCrLf & "Please try again")
                    Exit Sub
                End Try

                Try
                    QuantityItem3 = CInt(txtQuantityItem3.Text)
                Catch Exc As FormatException
                    MsgBox("The value you entered is not valid" & _
                                    vbCrLf & "Please try again")
                    Exit Sub
                End Try
            End If

            If (cbxNameItem4.Text = "None") Or (cbxNameItem4.Text = "") Then
                QuantityItem4 = 0
                UnitPriceItem4 = 0.0
            Else
                Try
                    UnitPriceItem4 = CDbl(txtUnitPriceItem4.Text)
                Catch Exc As FormatException
                    MsgBox("The value you entered for the price is not valid" & _
                            vbCrLf & "Please try again")
                    Exit Sub
                End Try

                Try
                    QuantityItem4 = CInt(txtQuantityItem4.Text)
                Catch Exc As FormatException
                    MsgBox("The value you entered is not valid" & _
                            vbCrLf & "Please try again")
                    Exit Sub
                End Try
            End If

            ' Calculate the sub-total for this item
            SubTotalShirts = QuantityShirts * UnitPriceShirts
            SubTotalPants = QuantityPants * UnitPricePants
            SubTotalItem1 = QuantityItem1 * UnitPriceItem1
            SubTotalItem2 = QuantityItem2 * UnitPriceItem2
            SubTotalItem3 = QuantityItem3 * UnitPriceItem3
            SubTotalItem4 = QuantityItem4 * UnitPriceItem4

            ' Calculate the total based on sub-totals
            CleaningTotal = SubTotalShirts + SubTotalPants + _
                            SubTotalItem1 + SubTotalItem2 + _
                            SubTotalItem3 + SubTotalItem4

            TaxRate = CDbl(txtTaxRate.Text)
            ' Calculate the amount owed for the taxes
            TaxAmount = CleaningTotal * TaxRate / 100
            ' Add the tax amount to the total order
            NetPrice = CleaningTotal + TaxAmount

            ' Display the sub-total in the corresponding text box
            txtSubTotalShirts.Text = FormatNumber(SubTotalShirts)
            txtSubTotalPants.Text = FormatNumber(SubTotalPants)
            txtSubTotalItem1.Text = FormatNumber(SubTotalItem1)
            txtSubTotalItem2.Text = FormatNumber(SubTotalItem2)
            txtSubTotalItem3.Text = FormatNumber(SubTotalItem3)
            txtSubTotalItem4.Text = FormatNumber(SubTotalItem4)

            txtCleaningTotal.Text = FormatNumber(CleaningTotal)
            txtTaxAmount.Text = FormatNumber(TaxAmount)
            txtNetPrice.Text = FormatNumber(NetPrice)

            SaveCleaningOrder()
    End Sub
  30. In the Class Name combo box, select cbxOrderStatus
  31. In the Method Name combo box, select SelectedIndexChanged and implement the event as follows:

    Private Sub cbxOrderStatus_SelectedIndexChanged(ByVal sender As Object, _
                                                    ByVal e As System.EventArgs) _
                                       Handles cbxOrderStatus.SelectedIndexChanged
            SaveCleaningOrder()
    End Sub
  32. In the Class Name combo box, select dtpDatePickedUp
  33. In the Method Name combo box, select ValueChanged and implement the event as follows:

    Private Sub dtpDatePickedUp_ValueChanged(ByVal sender As Object, _
                                             ByVal e As System.EventArgs) _
                                             Handles dtpDatePickedUp.ValueChanged
            SaveCleaningOrder()
    End Sub
  34. In the Class Name combo box, select dtpTimePickedUp
  35. In the Method Name combo box, select ValueChanged and implement the event as follows:

    Private Sub dtpTimePickedUp_ValueChanged(ByVal sender As Object, _
                                             ByVal e As System.EventArgs) _
                                             Handles dtpTimePickedUp.ValueChanged
        SaveCleaningOrder()
    End Sub
  36. In the Class Name combo box, select btnClose
  37. In the Method Name combo box, select Click and implement the event as follows:

    Private Sub btnClose_Click(ByVal sender As Object, _
                                   ByVal e As System.EventArgs) _
                                   Handles btnClose.Click
            End
    End Sub
  38. Execute the application
  39. Create a cleaning order
  40. Click New Cleaning Order and create a few more cleaning orders
  41. Close the form and return to your programming environment


Home Copyright © 2008-2012 FunctionX
