Logical Comparisons



Logical Operations



Introduction

Sometimes while a person is using your program, you may need to check whether something is true or it is false. This type of operation is performed using operators referred to as comparison operators. Visual Basic provides various operators that can be used in appropriate types of comparisons.



Boolean Variables

The Boolean data type is used to declare a variable whose value would be set as true (1) or false (0). To declare such a value, you use the Boolean keyword. The variable can then be initialized with a starting value. The Boolean constant is used to check that the state of a variable (or a function) is true or false. You can declare such a variable as:

dim GotThePassingGrade as Boolean;

Later in the program, for a student who got a failing grade, you can assign the other value, like this

GotThePassingGrade = False;

Logical Operators



Equality =

To compare two values for equality, use the = operator. Its formula is:

Value1 = Value2

The equality operation is used to find out whether two variables (or one variable and a constant) hold the same value. From our formula, the compiler would compare the value of Value1 with that of Value2. If Value1 and Value2 hold the same value, the comparison produces a true result. If they are different, the comparison renders false or 0.


Equalilty Flowchart

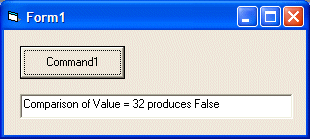

Here is an example:

Private Sub Command1_Click()
    Dim value As Integer

    value = 15
    Text1.Text = "Comparison of Value = 32 produces " & (value = 32)
End Sub

The result of a comparison can also be assigned to a Boolean variable. Here is an example:

Private Sub Command1_Click()
    Dim value1 As Integer
    Dim value2 As Boolean

    value1 = 15
    value2 = (value1 = 32)
    Text1.Text = "Comparison of Value = 32 produces " & value2
End Sub



Logical Not

When a variable is declared and receives a value (this could be done through initialization or a change of value) in a program, it becomes alive. It can then participate in any necessary operation. The compiler keeps track of every variable that exists in the program being processed. When a variable is not being used or is not available for processing (in visual programming, it would be considered as disabled) to make a variable (temporarily) unusable, you can nullify its value. To render a variable unavailable during the evolution of a program, apply the logical not operator which is Not. Its formula is:

Not Value

There are two main ways you can use the logical Not operator. As we will learn when studying conditional statements, the most classic way of using the logical Not operator is to check the state of a variable.

To nullify a variable, you can write Not to its left. When used like that, you can display its value. You can even assign it to another variable. Here is an example:

Private Sub Command1_Click()
    Dim value1 As Integer
    Dim value2 As Boolean

    value1 = 250
    value2 = Not value1

    Text1.Text = value2
End Sub


When a variable holds a value, it is "alive". To make it not available, you can "not" it. When a variable has been "notted", its logical value has changed. Therefore, you can inverse the logical value of a variable by "notting" or not "notting" it. This is done by typing Not to its left.

Inequality <>

Visual Basic provides an operator used to compare two values for inequality. Its formula is:

Value1 <> Value2

<> is a binary operator (like all logical operators except the logical Not, which is a unary operator) that is used to compare two values. The values can come from two variables as in Variable1 <> Variable2. Upon comparing the values, if both variables hold different values, the comparison produces a true or positive value. Otherwise, the comparison renders false or a null value.

Flowchart: Not Equal

Here is an example:

Private Sub Command1_Click()
    Dim value1 As Integer
    Dim value2 As Integer
    Dim value3 As Boolean

    value1 = 212
    value2 = -46
    value3 = (value1 <> value2)

    Text1.Text = value1 & " <> " & value2 & " = " & value3
End Sub

The inequality is obviously the opposite of the equality.

Less Than <

To find out whether one value is lower than another, use the < operator. Its formula is:

Value1 < Value2

The value held by Value1 is compared to that of Value2. As it would be done with other operations, the comparison can be made between two variables, as in Variable1 < Variable2. If the value held by Variable1 is lower than that of Variable2, the comparison produces a true or positive result.


Flowchart: Less Than

Here is an example:

Private Sub Command1_Click()
    Dim value1 As Integer
    Dim value2 As Integer
    Dim value3 As Boolean

    value1 = 212
    value2 = -46
    value3 = (value1 < value2)

    Text1.Text = value1 & " < " & value2 & " = " & value3
End Sub

Less Than Or Equal <=

The previous two operations can be combined to compare two values. This allows you to know if two values are the same or if the first is less than the second. The operator used is <= and its formula is:

Value1 <= Value2

The <= operation performs a comparison as any of the last two. If both Value1 and Value2 hold the same value, the result is true or not null. If the left operand, in this case Value1, holds a value lower than the second operand, in this case Value2, the result is still true.

Flowchart

Here is an example:

Private Sub Command1_Click()
    Dim value1 As Integer
    Dim value2 As Integer
    Dim value3 As Boolean

    value1 = 212
    value2 = -46
    value3 = (value1 <= value2)

    Text1.Text = value1 & " <= " & value2 & " = " & value3
End Sub


Greater Than >

When two values of the same type are distinct, one of them is usually higher than the other. Visual Basic provides a logical operator that allows you to find out if one of two values is greater than the other. The operator used for this operation uses the > symbol. Its formula is:

Value1 > Value2

Both operands, in this case Value1 and Value2, can be variables or the left operand can be a variable while the right operand is a constant. If the value on the left of the > operator is greater than the value on the right side or a constant, the comparison produces a true or positive value. Otherwise, the comparison renders false or null. This can be illustrated as follows:

Flowchart

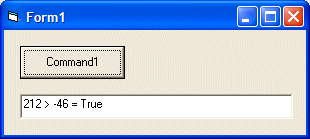

Here is an example:

Private Sub Command1_Click()
    Dim value1 As Integer
    Dim value2 As Integer
    Dim value3 As Boolean

    value1 = 212
    value2 = -46
    value3 = (value1 > value2)

    Text1.Text = value1 & " > " & value2 & " = " & value3
End Sub

Greater Than or Equal >=

The greater than or the equality operators can be combined to produce an operator as follows: >=. This is the "greater than or equal to" operator. Its formula is:

Value1 >= Value2

A comparison is performed on both operands: Value1 and Value2. If the value of Value1 and that of Value2 are the same, the comparison produces a true or positive value. If the value of the left operand is greater than that of the right operand, the comparison produces true or positive also. If the value of the left operand is strictly less than the value of the right operand, the comparison produces a false or null result.

This can be illustrated as follows:

Flowchart: Greater Than Or Equal To

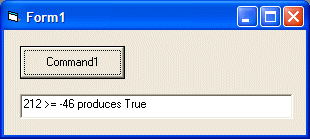

Here is an example:

Private Sub Command1_Click()
    Dim value1 As Integer
    Dim value2 As Integer
    Dim value3 As Boolean

    value1 = 212
    value2 = -46
    value3 = (value1 >= value2)

    Text1.Text = value1 & " >= " & value2 & " produces " & value3
End Sub

Here is a summary table of the logical operators we have studied:

Operator Meaning Example Opposite
= Equality to a = b <>
<> Not equal to 12 <> 7 =
< Less than 25 < 84 >=
<= Less than or equal to Cab <= Tab >
> Greater than 248 > 55 <=
>= Greater than or equal to Val1 >= Val2 <
