Car Inventory Using a Slider



Introduction

This small application uses a dialog box on which the user can review a list of cars.

Prerequisites:



Creating the Application

This application was used to study or review the Track Bar control. We simply expand it here to include other controls that can provide more information about the car that is displaying.

Practical Learning: Starting the Exercise

  1. Start Microsoft Visual C++ 2005 and create a new Windows Forms Application named CarInventory1
  2. Save the following pictures, with their default names, in the folder that contains the current project (if you are using Microsoft Visual C++ .Net 2003, after you have created the CarInventory1 project, another folder with the same name, CarInventory1, is created; therefore, save these pictures in the CarInventory1 folder inside of the primary CarInventory1 folder):

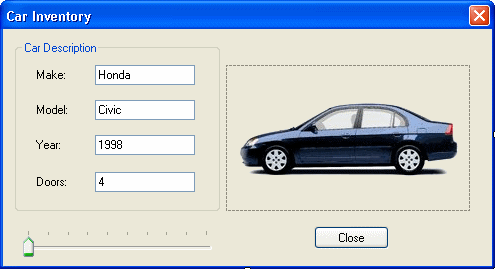

  3. Design the form as follows:


    Control Text Name Additional Properties
    Group Box Car Description
    Label Make:
    TextBox Honda txtMake
    Label Model:
    TextBox Civic txtModel
    Label Year:
    TextBox 1998 txtYear
    Label Doors:
    TextBox 4 txtDoors
    PictureBox   pctCarPicture Image: Select Civic1.bmp
    TrackBar   trbSlider Minimum: 1
    TickStyle: TopLeft
  4. Right-click the form and click View Code
  5. To store the values for the controls of the form, in the top section of the file, create a value structure named CLisOfCars as follows:

    #pragma once

    namespace CarInventory1 {

    	using namespace System;
    	using namespace System::ComponentModel;
    	using namespace System::Collections;
    	using namespace System::Windows::Forms;
    	using namespace System::Data;
    	using namespace System::Drawing;

    	public value struct CListOfCars
    	{
    		String ^ Make;
    		String ^ Model;
    		unsigned int CarYear;
    		unsigned int Doors;
    		String ^ CarPicture;
    	};

    	/// <summary>

    	. . .
  6. Before using the cars, declare an array of CListOfCars just under InitializeComponents. Name the array variable Car as follows:

    #pragma once


    namespace CarInventory1 {

    	using namespace System;
    	using namespace System::ComponentModel;
    	using namespace System::Collections;
    	using namespace System::Windows::Forms;
    	using namespace System::Data;
    	using namespace System::Drawing;

    	public value struct CListOfCars
    	{
    		String ^ Make;
    		String ^ Model;
    		unsigned int CarYear;
    		unsigned int Doors;
    		String ^ CarPicture;
    	};

    	. . .

    	public ref class Form1 : public System::Windows::Forms::Form
    	{
    	public:
    		Form1(void)
    		{
    			InitializeComponent();
    			//
    			//TODO: Add the constructor code here
    			//
    		}

    	protected:
    		/// <summary>
    		/// Clean up any resources being used.
    		/// </summary>
    		~Form1()
    		{
    			if (components)
    			{
    				delete components;
    			}
    		}
    	. . .

    	private:
    		/// <summary>
    		/// Required designer variable.
    		/// </summary>
    		System::ComponentModel::Container ^components;

    static array<CListOfCars ^> ^ Cars = gcnew array<CListOfCars ^>(10);


  7. Return to the form and double-click an empty area of its body
  8. To use the array and the slider, implement the OnLoad() event as follows:

    System::Void Form1_Load(System::Object^  sender,
    		System::EventArgs^  e)
    {
    	 Cars[0] = gcnew CListOfCars;
    	 Cars[0]->Make = L"Honda";
    	 Cars[0]->Model = L"Civic";
    	 Cars[0]->CarYear = 1998;
    	 Cars[0]->Doors = 4;
    	 Cars[0]->CarPicture = L"Civic1.bmp";

    	 Cars[1] = gcnew CListOfCars;
    	 Cars[1]->Make = L"Hyundai";
    	 Cars[1]->Model = L"Elantra";
    	 Cars[1]->CarYear = 1996;
    	 Cars[1]->Doors = 4;
    	 Cars[1]->CarPicture = L"Elantra.bmp";

    	 Cars[2] = gcnew CListOfCars;
    	 Cars[2]->Make = L"Ford";
    	 Cars[2]->Model = L"Escape";
    	 Cars[2]->CarYear = 2003;
    	 Cars[2]->Doors = 5;
    	 Cars[2]->CarPicture = L"FordEscape1.bmp";

    	 Cars[3] = gcnew CListOfCars;
    	 Cars[3]->Make = L"Ford";
    	 Cars[3]->Model = L"Escort";
    	 Cars[3]->CarYear = 1997;
    	 Cars[3]->Doors = 2;
    	 Cars[3]->CarPicture = L"FordEscort1.bmp";

    	 Cars[4] = gcnew CListOfCars;
    	 Cars[4]->Make = L"Mercury";
    	 Cars[4]->Model = L"Grand Marquis";
    	 Cars[4]->CarYear = 2001;
    	 Cars[4]->Doors = 4;
    	 Cars[4]->CarPicture = L"GrandMarquis.bmp";

    	 Cars[5] = gcnew CListOfCars;
    	 Cars[5]->Make = L"Mercury";
    	 Cars[5]->Model = L"Mystique";
    	 Cars[5]->CarYear = 2000;
    	 Cars[5]->Doors = 4;
    	 Cars[5]->CarPicture = L"Mystique.bmp";

    	 Cars[6] = gcnew CListOfCars;
    	 Cars[6]->Make = L"Lincoln";
    	 Cars[6]->Model = L"Navigator";
    	 Cars[6]->CarYear = 2003;
    	 Cars[6]->Doors = 5;
    	 Cars[6]->CarPicture = L"Navigator1.bmp";

    	 Cars[7] = gcnew CListOfCars;
    	 Cars[7]->Make = L"Nissan";
    	 Cars[7]->Model = L"Sentra";
    	 Cars[7]->CarYear = 1997;
    	 Cars[7]->Doors = 2;
    	 Cars[7]->CarPicture = L"Sentra.bmp";

    	 Cars[8] = gcnew CListOfCars;
    	 Cars[8]->Make = L"Ford";
    	 Cars[8]->Model = L"Focus";
    	 Cars[8]->CarYear = 2002;
    	 Cars[8]->Doors = 4;
    	 Cars[8]->CarPicture = L"Focus.bmp";

    	 Cars[9] = gcnew CListOfCars;
    	 Cars[9]->Make = L"Kia";
    	 Cars[9]->Model = L"Sephia";
    	 Cars[9]->CarYear = 2003;
    	 Cars[9]->Doors = 4;
    	 Cars[9]->CarPicture = L"Sephia.bmp";
    }
  9. When the user slides the track bar, we will update the values of the selected car and we will call the OnPaint() event of the form to change the picture of the car.
    Get back to the form and double-click the TrackBar control to access its OnScroll event
  10. Implement it as follows:

    System::Void trbSlider_Scroll(System::Object^  sender,
    		System::EventArgs^  e)
    {
    	 // Get the index of the current value of the track bar - 1
            int CurPos = this->trbSlider->Value - 1;

            // Based on the current index, retrieve the values of the
            // current car and assign each to the corresponding control
            this->txtMake->Text	= this->Cars[CurPos]->Make;
            this->txtModel->Text	= this->Cars[CurPos]->Model;
            this->txtYear->Text	= this->Cars[CurPos]->CarYear.ToString();
            this->txtDoors->Text	= this->Cars[CurPos]->Doors.ToString();
            this->pctCarPicture->Image =
    	Drawing::Image::FromFile(Cars[CurPos]->CarPicture);
    }
  11. Return to the form
  12. Double-click the Close button and implement its event as follows:

    System::Void btnClose_Click(System::Object^  sender,
    		System::EventArgs^  e)
    {
    	 Close();
    }

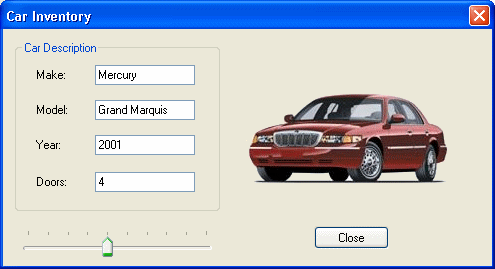

  13. Test the application
  14. Close the form
