Body Tag Formatter



This exercise combines a panel, a button, and three scroll bars combined to create an application.

Prerequisites:
Dialog Box
Group Boxes
Radio Buttons
Text Boxes
Panel
Button
Scroll Bars
Body Tag Formatter

Practical LearningPractical Learning: Introducing Scroll Bar Controls

  1. Start a new Windows Forms Application named BodyTag1
  2. Set form's FormBorderStyle property to FixedDialog
  3. Set its MaximizeBox and its MinimizeBox properties to False each

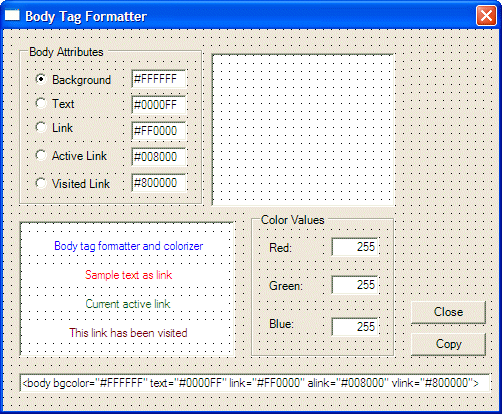

  4. Design the form as follows:


    Control Name Text Other Properties
    GroupBox GroupBox   Body Attributes
    RadioButton RadioButton rdoBackground Background Checked: True
    TextBox TextBox txtBackground #FFFFFF
    RadioButton RadioButton rdoText Text
    TextBox TextBox txtText #0000FF
    RadioButton RadioButton rdoLink Link
    TextBox TextBox txtLink #FF0000
    RadioButton RadioButton rdoActiveLink Active Link
    TextBox TextBox txtActiveLink #008000
    RadioButton RadioButton rdoVisitedLink Visited Link
    TextBox TextBox txtVisitedLink #800000
    Panel Panel pnlPreview   BackColor: White
    BorderStyle: Fixed3D
    Panel Panel pnlBody   BackColor: White
    BorderStyle: Fixed3D
    TextBox TextBox txtTextPreview Body tag formatter and colorizer BorderStyle: None
    ForeColor: Blue
    TextAlign: Center
    TextBox TextBox txtLinkPreview Sample text as link BorderStyle: None
    ForeColor: Red
    TextAlign: Center
    TextBox TextBox txtALinkPreview Current active link BorderStyle: None
    ForeColor: Green
    TextAlign: Center
    TextBox TextBox txtVLinkPreview This link has been visited BorderStyle: None
    ForeColor: Maroon
    TextAlign: Center
    GroupBox GroupBox   Color Values
    Label Label   Red:
    TextBox TextBox txtRed 255
    Label Label   Green:
    TextBox TextBox txtGreen 255
    Label Label   Blue:
    TextBox TextBox txtBlue 255
    Button Button btnClose Close
    Button Button btnCopy Copy
    TextBox TextBox txtResult <body bgcolor="#FFFFFF" text="#0000FF" link="#FF0000" alink="#008000" vlink="#800000">
  5. Save all

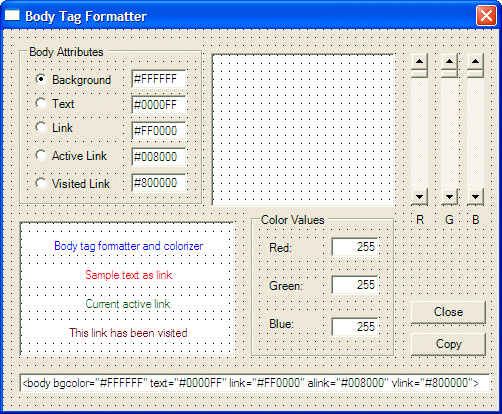

  6. Add three VScrollBar controls and three labels to the top-right section of the form

    Control Name Text LargeChange Maximum Value
    VScrollBar VScrollBar scrRed 1 255 0
    VScrollBar VScrollBar scrGreen 1 255 0
    VScrollBar VScrollBar scrBlue 1 255 0
    Label Label R
    Label Label G
    Label Label B
  7. Right-click the form and click View Code. Declare the following private String pointers:

    #pragma once


    namespace BodyTag1
    {
    	using namespace System;
    	using namespace System::ComponentModel;
    	using namespace System::Collections;
    	using namespace System::Windows::Forms;
    	using namespace System::Data;
    	using namespace System::Drawing;

    	/// <summary>
    	/// Summary for Form1
    	///
    	/// WARNING: If you change the name of this class, you will need to change the
    	///          'Resource File Name' property for the managed resource compiler tool
    	///          associated with all .resx files this class depends on.  Otherwise,
    	///          the designers will not be able to interact properly with localized
    	///          resources associated with this form.
    	/// </summary>
    	public __gc class Form1 : public System::Windows::Forms::Form
    	{
    	public:
    		Form1(void)
    		{
    			InitializeComponent();
    		}

    	protected:
    		void Dispose(Boolean disposing)
    		{
    			if (disposing && components)
    			{
    				components->Dispose();
    			}
    			__super::Dispose(disposing);
    		}
    	private: System::Windows::Forms::VScrollBar *  scrRed;
    	private: System::Windows::Forms::Button *  btnCopy;
    	private: System::Windows::Forms::Label *  label5;
    	private: System::Windows::Forms::Label *  label4;
    	private: System::Windows::Forms::TextBox *  txtResult;
    	private: System::Windows::Forms::Panel *  pnlBody;
    	private: System::Windows::Forms::TextBox *  txtVLinkPreview;
    	private: System::Windows::Forms::TextBox *  txtALinkPreview;
    	private: System::Windows::Forms::TextBox *  txtLinkPreview;
    	private: System::Windows::Forms::TextBox *  txtTextPreview;
    	private: System::Windows::Forms::Label *  label6;
    	private: System::Windows::Forms::VScrollBar *  scrBlue;
    	private: System::Windows::Forms::GroupBox *  groupBox1;
    	private: System::Windows::Forms::TextBox *  txtVisitedLink;
    	private: System::Windows::Forms::RadioButton *  rdoVisitedLink;
    	private: System::Windows::Forms::TextBox *  txtActiveLink;
    	private: System::Windows::Forms::RadioButton *  rdoActiveLink;
    	private: System::Windows::Forms::TextBox *  txtLink;
    	private: System::Windows::Forms::RadioButton *  rdoLink;
    	private: System::Windows::Forms::TextBox *  txtText;
    	private: System::Windows::Forms::RadioButton *  rdoText;
    	private: System::Windows::Forms::TextBox *  txtBackground;
    	private: System::Windows::Forms::RadioButton *  rdoBackground;
    	private: System::Windows::Forms::Button *  btnClose;
    	private: System::Windows::Forms::GroupBox *  groupBox2;
    	private: System::Windows::Forms::TextBox *  txtBlue;
    	private: System::Windows::Forms::Label *  label3;
    	private: System::Windows::Forms::TextBox *  txtGreen;
    	private: System::Windows::Forms::Label *  label2;
    	private: System::Windows::Forms::TextBox *  txtRed;
    	private: System::Windows::Forms::Label *  label1;
    	private: System::Windows::Forms::VScrollBar *  scrGreen;
    	private: System::Windows::Forms::Panel *  pnlPreview;

    	private:
    		/// <summary>
    		/// Required designer variable.
    		/// </summary>
    		System::ComponentModel::Container * components;

    		typedef String *string;
    		string HexBG, HexText, HexLink, HexALink, HexVLink;

    		/// <summary>
    		/// Required method for Designer support - do not modify
    		/// the contents of this method with the code editor.
    		/// </summary>
    		void InitializeComponent(void)
    		{

    			. . .

    		}
    	};
    }
  8. In Class View, expand BodyTag1 and expand the other BodyTag1. Right-click Form1 -> Add -> Add Function...
  9. Set the method options as follows:
    Return Type: void
    Function Name: ApplyColor
    Access: private

  10. Click Finish and implement the method as follows:

    void ApplyColor(void)
    {
    	// Retrieve the current hexadecimal colors from their Edit controls
        HexBG = txtBackground->Text;
        HexText = txtText->Text;
        HexLink = txtLink->Text;
        HexALink = txtActiveLink->Text;
        HexVLink = txtVisitedLink->Text;

    	int iRed   = 255 - scrRed->Value;
    	int iGreen = 255 - scrGreen->Value;
    	int iBlue  = 255 - scrBlue->Value;

        // Get the integral position of each ScrollBar control
    	// and convert it to String
    	String *strRed   = Convert::ToString(iRed);
        String *strGreen = Convert::ToString(iGreen);
        String *strBlue  = Convert::ToString(iBlue);

        // Display the position of each ScrollBar
        // in its corresponding Edit control
        txtRed->Text   = strRed;
        txtGreen->Text = strGreen;
        txtBlue->Text  = strBlue;

        // Change the color of the Preview panel
        // according to the values of the ScrollBar positions
    	pnlPreview->BackColor = Drawing::Color::FromArgb(iRed, iGreen, iBlue);

    	String *strHexRed   = iRed.ToString(S"X");
    	String *strHexGreen = iGreen.ToString(S"X");
    	String *strHexBlue  = iBlue.ToString(S"X");

    	if( iRed < 10 )
    		strHexRed = String::Concat(S"0", iRed.ToString(S"X"));
    	if( iGreen < 10 )
    		strHexGreen = String::Concat(S"0", iGreen.ToString(S"X"));
    	if( iBlue < 10 )
    		strHexBlue = String::Concat(S"0", iBlue.ToString(S"X"));

        // Get the position of each ScrollBar control
        // Create a hexadecimal color starting with #
        // And display the color in the appropriate Edit control
        if( rdoBackground->Checked == true )
    	{
    		String *BG = S"#";
    		BG = BG->Concat(BG, strHexRed);
    		BG = BG->Concat(BG, strHexGreen);
    		BG = BG->Concat(BG, strHexBlue);
            txtBackground->Text              = BG;
            pnlBody->BackColor				 = pnlPreview->BackColor;
            txtTextPreview->BackColor		 = pnlPreview->BackColor;
            txtLinkPreview->BackColor		 = pnlPreview->BackColor;
            txtALinkPreview->BackColor  = pnlPreview->BackColor;
            txtVLinkPreview->BackColor = pnlPreview->BackColor;
            HexBG = txtBackground->Text;
    	}
    	else if( rdoText->Checked == true )
    	{
    		String *Txt = S"#";
    		Txt = Txt->Concat(Txt, strHexRed);
    		Txt = Txt->Concat(Txt, strHexGreen);
    		Txt = Txt->Concat(Txt, strHexBlue);
    		txtText->Text = Txt;
    		txtTextPreview->ForeColor = Drawing::Color::FromArgb(iRed, iGreen, iBlue);
           HexText = txtText->Text;
    	}
    	else if( rdoLink->Checked == true )
    	{
    		String *TL = S"#";
    		        TL = TL->Concat(TL, strHexRed);
    				TL = TL->Concat(TL, strHexGreen);
    				TL = TL->Concat(TL, strHexBlue);
    		txtLink->Text = TL;
           txtLinkPreview->ForeColor = Drawing::Color::FromArgb(iRed, iGreen, iBlue);
           HexLink = txtLink->Text;
    	}
    	else if( rdoActiveLink->Checked == true )
    	{
    		String *AL = S"#";
    		        AL = AL->Concat(AL, strHexRed);
    		        AL = AL->Concat(AL, strHexGreen);
    		        AL = AL->Concat(AL, strHexBlue);
    		txtActiveLink->Text = AL;
           txtALinkPreview->ForeColor = Drawing::Color::FromArgb(iRed, iGreen, iBlue);
           HexALink = txtActiveLink->Text;
    	}
    	else if( rdoVisitedLink->Checked == true )
    	{
    		String *VL = S"#";
    		        VL = VL->Concat(VL, strHexRed);
    		        VL = VL->Concat(VL, strHexGreen);
    		        VL = VL->Concat(VL, strHexBlue);
    		txtVisitedLink->Text = VL;
           txtVLinkPreview->ForeColor = Drawing::Color::FromArgb(iRed, iGreen, iBlue);
           HexVLink = txtVisitedLink->Text;
        }

        // Update the contents of the bottom Edit control
        String *BD = S"<body bgcolor=\"";
                BD = BD->Concat(BD, HexBG);
                BD = BD->Concat(BD, S"\" text=\"");
                BD = BD->Concat(BD, HexText);
                BD = BD->Concat(BD, S"\" link=\"");
                BD = BD->Concat(BD, HexLink);
                BD = BD->Concat(BD, S"\" alink=\"");
                BD = BD->Concat(BD, HexALink);
                BD = BD->Concat(BD, S"\" vlink=\"");
                BD = BD->Concat(BD, HexVLink);
                BD = BD->Concat(BD, S"\">");
        txtResult->Text = BD;
    }
  11. Double-click each scroll bar and implement them as follows:

    System::Void scrRed_Scroll(System::Object *  sender, System::Windows::Forms::ScrollEventArgs *  e)
    		 {
    			 this->ApplyColor();
    		 }

    private: System::Void scrGreen_Scroll(System::Object *  sender, System::Windows::Forms::ScrollEventArgs *  e)
    		 {
    			 this->ApplyColor();
    		 }

    private: System::Void scrBlue_Scroll(System::Object *  sender, System::Windows::Forms::ScrollEventArgs *  e)
    		 {
    			 this->ApplyColor();
    		 }
  12. Execute the application to test the form
  13. Close the form and return to your programming environment
  14. When the user clicks a radio button from the Body Attributes group box, we need to display its color on the Preview panel. When a particular button is clicked, we will retrieve the color of its font from the Body text box, translate that color into red, green, and blue values, and then use those values to automatically update the scroll bars and the edit boxes. While we are at it, we also need to update the corresponding text box in the Body Attributes group box. Since this functionality will be used by all radio buttons in the group, we will use a global function to which we can pass two variables.
    When the user clicks a particular radio button, that button is represented by a text box in the lower-left Body section. We need to get the color of that edit box and pass it to our function. Since the clicked radio button has a corresponding text box in the Body Attributes group box, we need to change/update that value with the hexadecimal value of the first argument. Therefore, we will pass a String argument to our function.
    In Code Editor, just after the closing curly bracket of the scrBlue_Scroll method, create the following method:

    void ClickOption(Drawing::Color Clr, String *Result)
    {
        // These variables will hold the red, green, and blue
        // values of the passed color
        int Red, Green, Blue;

        // Colorize the Preview panel with the passed color
        pnlPreview->BackColor = Clr;

        // Get the red value of the color of the Preview panel
        Red = pnlPreview->BackColor.R;
        // Get the green value of the color of the Preview panel
        Green = pnlPreview->BackColor.G;
        // Get the blue value of the color of the Preview panel
        Blue = pnlPreview->BackColor.B;

        // Now that we have the red, green, and blue values of the color,
        // Update the scroll bars with the new values
        scrRed->Value = 255 - Red;
        scrGreen->Value = 255 - Green;
        scrBlue->Value = 255 - Blue;

        // Update the red, green, and blue values
        // of the Numeric Values group box
        txtRed->Text   = Red.ToString();
        txtGreen->Text = Green.ToString();
        txtBlue->Text  = Blue.ToString();

        // Update the string that was passed using
        // the retrieved red, green, and blue values
        Result = Result->Concat(Result, S"#");
        Result = Result->Concat(Result, Red.ToString(S"X"));
        Result = Result->Concat(Result, Green.ToString(S"X"));
        Result = Result->Concat(Result, Blue.ToString(S"X"));
    }
  15. In the form, double-click each radio button and implement it as follows:

    System::Void rdoBackground_CheckedChanged(System::Object *  sender, System::EventArgs *  e)
    {
    	// If the user clicks Background radio button
    	// set color of the panel to that of the radio button
    	pnlPreview->BackColor      = pnlBody->BackColor;

    	// Call the ClickOption() method to calculate
    	// the hexadecimal value of the color
    	ClickOption(pnlBody->BackColor, txtBackground->Text);
    	HexBG = txtBackground->Text;
    }

    private: System::Void rdoText_CheckedChanged(System::Object *  sender, System::EventArgs *  e)
    {
    	pnlPreview->BackColor  = txtTextPreview->ForeColor;

    	ClickOption(txtTextPreview->ForeColor, txtText->Text);
    	HexText = txtText->Text;
    }

    private: System::Void rdoLink_CheckedChanged(System::Object *  sender, System::EventArgs *  e)
    {
    	pnlPreview->BackColor  = txtLinkPreview->ForeColor;

    	ClickOption(txtLinkPreview->ForeColor, txtLink->Text);
    	HexLink = txtLink->Text;
    }

    private: System::Void rdoActiveLink_CheckedChanged(System::Object *  sender, System::EventArgs *  e)
    {
    	pnlPreview->BackColor  = txtALinkPreview->ForeColor;

    	ClickOption(txtALinkPreview->ForeColor, txtActiveLink->Text);
    	HexALink = txtActiveLink->Text;
    }

    private: System::Void rdoVisitedLink_CheckedChanged(System::Object *  sender, System::EventArgs *  e)
    {
    	pnlPreview->BackColor  = txtVLinkPreview->ForeColor;

    	ClickOption(txtVLinkPreview->ForeColor, txtVisitedLink->Text);
    	HexVLink = txtVisitedLink->Text;
    }
  16. Double-click the Close button and implement it as follows:

    System::Void btnClose_Click(System::Object *  sender, System::EventArgs *  e)
    {
    	 Close();
    }
  17. Double-click the Copy button and implement it as follows:

    System::Void btnCopy_Click(System::Object *  sender, System::EventArgs *  e)
    {
    	 this->txtResult->SelectAll();
    	 this->txtResult->Copy();
    }
  18. Execute the application

    Body Tag Formatter
  19. Close the form

Home Copyright © 2002-2010 FunctionX, Inc.
