Lists-Based Applications: The Music Store



Introduction

The DataSet of the .NET Framework is a very impressive object. It allows you to create and manage any type of list. This makes it a central point for a list-based application, although it is highly used in formal database applications such as those intended for Microsoft SQL Server or Microsoft Access.

To support the creation and management of any type of database, the DataSet class has complete built-in mechanisms for creating tables, their associated columns, and to perform data entry. To demonstrate these functionalities of the DataSet, we are going to create a list-based application that can serve as another introduction to databases. The application simulates a music instrument store that processes orders for customers.

When a customer comes to the store to purchase a product, the employee can select items by categories, specify the quantity, calculate the total order, and save it.

Practical Learning Practical Learning: Creating the Application

  1. Start Microsoft Visual Studio .NET and create a new Windows Forms Application named MusicStore2
  2. To add a new form, on the main menu, click Project -> Add New Item...
  3. In the Templates list, click Windows Forms (.NET)
  4. Set the Name to DataCenter and press Enter
  5. To add a new form, on the main menu, click Project -> Add New Item...
  6. In the Templates list of the Add New Item dialog box, click Windows Forms (.NET)
  7. Set the Name to Categories and press Enter

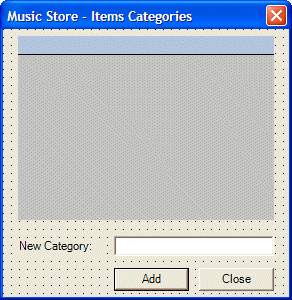

  8. Design the form as follows:

    Control Name Text Other Properties
    DataGrid     Auto Format: Professional 3
    Label   New Category:
    TextBox txtNewCategory
    Button btnAdd Add
    Button btnClose Close
    Form     AcceptButton: btnAdd
    CancelButton: btnClose
    FormBorderStyle: FixedDialog
    MaximizeBox: False
    ShowInTaskbar: False
    StartPosition: CenterScreen
  9. To add a new form, on the main menu, click Project -> Add New Item...
  10. In the Templates list of the Add New Item dialog box, click Windows Forms (.NET)
  11. Set the Name to ItemTypes and press Enter

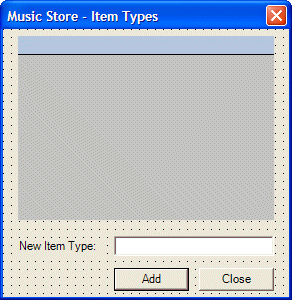

  12. Design the form as follows:

    Control Name Text Other Properties
    DataGrid     Auto Format: Professional 3
    Label   New Item Type:
    TextBox txtNewItemType
    Button btnAdd Add
    Button btnClose Close
    Form     AcceptButton: btnAdd
    CancelButton: btnClose
    FormBorderStyle: FixedDialog
    MaximizeBox: False
    ShowInTaskbar: False
    StartPosition: CenterScreen
  13. To add a new form, on the main menu, click Project -> Add New Item...
  14. In the Templates list of the Add New Item dialog box, click Windows Forms (.NET)
  15. Set the Name to NewStoreItem and press Enter

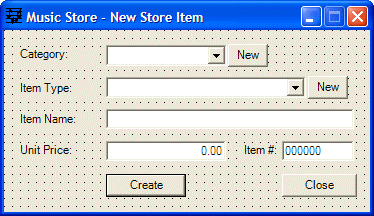

  16. Design the form as follows:

    Control Name Text Other Properties
    Label   Category:
    ComboBox cboCategories   DropDownStyle: DropDownList
    Sorted: True
    Button btnNewCategory New
    Label   Item Type:
    ComboBox cboItemTypes   DropDownStyle: DropDownList
    Sorted: True
    Button btnNewType New
    Label   Item Name:
    TextBox txtItemName
    Label   Unit Price:
    TextBox txtUnitPrice 0.00 AlignText: Right
    Label   Item #:
    TextBox txtItemNumber
    Button btnCreate Create
    Button btnClose Close
    Form     AcceptButton: btnCreate
    CancelButton: btnClose
    MaximizeBox: False
    StartPosition: CenterScreen
  17. Double-click an unoccupied area of the form to access its Load event and implement its as follows:

    System::Void NewStoreItem_Load(System::Object *  sender, System::EventArgs *  e)
    {
    	 // We will generate a random number for the store item
    	 DateTime tmeNow = DateTime::Now;
    	 Random *rndNumber = new Random(tmeNow.Millisecond);
    	 String *strNumber = rndNumber->Next(100000, 999999).ToString();

    	 // Display the new number in the Part # text box
    	 this->txtItemNumber->Text = strNumber;

    	 // Disable the OK button to indicate that the item is not ready
    	 this->btnCreate->Enabled = false;
    }
  18. Return to the NewStoreItem form
  19. Double-click the top New button on the right side of the Category combo box
  20. Return to the NewStoreItem form and double-click the lower New button
  21. In the top section of the file, under the #pragma line, type:

    #include "Categories.h"
    #include "ItemTypes.h"
  22. Implement the Click events as follows:

    System::Void btnNewCategory_Click(System::Object *  sender,
    				System::EventArgs *  e)
    {
    	 Categories *frmCat = new Categories;

    	 frmCat->ShowDialog();
    }

    System::Void btnNewType_Click(System::Object *  sender,
    				System::EventArgs *  e)
    {
    	 ItemTypes *frmTypes = new ItemTypes;

    	 frmTypes->ShowDialog();
    }
  23. To add a new form, on the main menu, click Project -> Add New Item...
  24. In the Templates list of the Add New Item dialog box, click Windows Forms (.NET)
  25. Set the Name to PurchaseOrder and press Enter

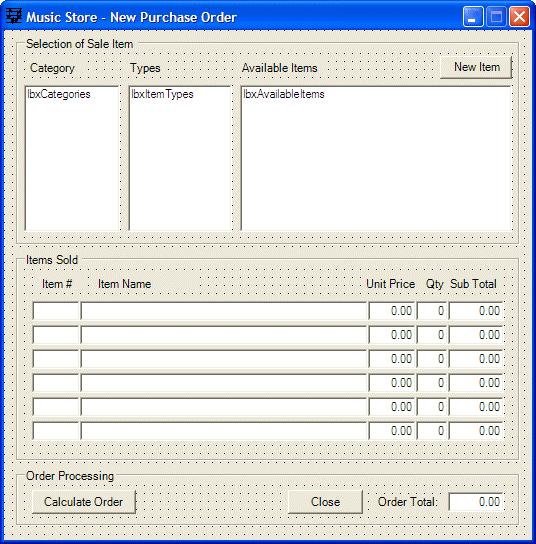

  26. Design the form as follows:

    Control Name Text Other Properties
    GroupBox   Selection of Sale Item
    Label   Category
    Label   Types
    Label   Available Items
    Button btnNewItem New Item
    ListBox lbxCategories
    ListBox lbxItemTypes
    ListBox lbxAvailableItems
    GroupBox   Items Sold
    Label   Item #
    Label   Item Name
    Label   Unit Price
    Label   Qty
    Label   Sub Total
    TextBox txtItemNumber1
    TextBox txtItemName1
    TextBox txtUnitPrice1 0.00 AlignText: Right
    TextBox txtQuantity1 0 AlignText: Right
    TextBox txtSubTotal1 0.00 AlignText: Right
    TextBox txtItemNumber2
    TextBox txtItemName2
    TextBox txtUnitPrice2 0.00 AlignText: Right
    TextBox txtQuantity2 0 AlignText: Right
    TextBox txtSubTotal2 0.00 AlignText: Right
    TextBox txtItemNumber3
    TextBox txtItemName3
    TextBox txtUnitPrice3 0.00 AlignText: Right
    TextBox txtQuantity3 0 AlignText: Right
    TextBox txtSubTotal3 0.00 AlignText: Right
    TextBox txtItemNumber4
    TextBox txtItemName4
    TextBox txtUnitPrice4 0.00 AlignText: Right
    TextBox txtQuantity4 0 AlignText: Right
    TextBox txtSubTotal4 0.00 AlignText: Right
    TextBox txtItemNumber5
    TextBox txtItemName5
    TextBox txtUnitPrice5 0.00 AlignText: Right
    TextBox txtQuantity5 0 AlignText: Right
    TextBox txtSubTotal5 0.00 AlignText: Right
    TextBox txtItemNumber6
    TextBox txtItemName6
    TextBox txtUnitPrice6 0.00 AlignText: Right
    TextBox txtQuantity6 0 AlignText: Right
    TextBox txtSubTotal6 0.00 AlignText: Right
    GroupBox   Order Processing
    Button btnCalculate Calculate Order
    Button btnSave Add to Today's Orders
    Button btnClose Close
    Label   Total Order:
    TextBox txtTotalOrder 0.00 AlignText: Right
    Enabled: False
    Form     CancelButton: btnClose
    MaximizeBox: False
    StartPosition: CenterScreen
  27. Double-click the NewItem button
  28. In the top section of the file, under the #pragma line, type #include "NewStoreItem.h"
  29. Implement its Click event as follows:

    System::Void btnNewItem_Click(System::Object *  sender, _
    				System::EventArgs *  e)
    {
    	 NewStoreItem *frm = new NewStoreItem;
    	 frm->ShowDialog();
    }
  30. Double-click the Calculate Order button and implement its Click event as follows:

    System::Void btnCalculate_Click(System::Object *  sender,
    				System::EventArgs *  e)
    {
    double item1UnitPrice = 0.00, item2UnitPrice = 0.00, item3UnitPrice = 0.00,
        item4UnitPrice = 0.00, item5UnitPrice = 0.00, item6UnitPrice = 0.00;
    	 int quantity1 = 0, quantity2 = 0, quantity3 = 0,
    		 quantity4 = 0, quantity5 = 0, quantity6 = 0;
     double item1SubTotal = 0.00, item2SubTotal = 0.00, item3SubTotal = 0.00,
        item4SubTotal = 0.00, item5SubTotal = 0.00, item6SubTotal = 0.00;
    	 double totalOrder;

    	 try {
    		 item1UnitPrice = this->txtUnitPrice1->Text->ToDouble(0);
    	 }
    	 catch(FormatException *)
    	 {
    		 MessageBox::Show(S"Invalid Unit Price");
    		 this->txtUnitPrice1->Text = S"0.00";
    		 this->txtUnitPrice1->Focus();
    	 }

    	 try {
    		 quantity1 = this->txtQuantity1->Text->ToInt16(0);
    	 }
    	 catch(FormatException *)
    	 {
    		 MessageBox::Show(S"Invalid Quantity");
    		 this->txtQuantity1->Text = S"0";
    		 this->txtQuantity1->Focus();
    	 }

    	 try {
    		 item2UnitPrice = this->txtUnitPrice2->Text->ToDouble(0);
    	 }
    	 catch(FormatException *)
    	 {
    		 MessageBox::Show(S"Invalid Unit Price");
    		 this->txtUnitPrice2->Text = S"0.00";
    		 this->txtUnitPrice2->Focus();
    	 }

    	 try {
    		 quantity2 = this->txtQuantity2->Text->ToInt16(0);
    	 }
    	 catch(FormatException *)
    	 {
    		 MessageBox::Show(S"Invalid Quantity");
    		 this->txtQuantity2->Text = S"0";
    		 this->txtQuantity2->Focus();
    	 }

    	 try {
    		 item3UnitPrice = this->txtUnitPrice3->Text->ToDouble(0);
    	 }
    	 catch(FormatException *)
    	 {
    		 MessageBox::Show(S"Invalid Unit Price");
    		 this->txtUnitPrice3->Text = S"0.00";
    		 this->txtUnitPrice3->Focus();
    	 }

    	 try {
    		 quantity3 = this->txtQuantity3->Text->ToInt16(0);
    	 }
    	 catch(FormatException *)
    	 {
    		 MessageBox::Show(S"Invalid Quantity");
    		 this->txtQuantity3->Text = S"0";
    		 this->txtQuantity3->Focus();
    	 }

    	 try {
    		 item4UnitPrice = this->txtUnitPrice4->Text->ToDouble(0);
    	 }
    	 catch(FormatException *)
    	 {
    		 MessageBox::Show(S"Invalid Unit Price");
    		 this->txtUnitPrice4->Text = S"0.00";
    		 this->txtUnitPrice4->Focus();
    	 }

    	 try {
    		 quantity4 = this->txtQuantity4->Text->ToInt16(0);
    	 }
    	 catch(FormatException *)
    	 {
    		 MessageBox::Show(S"Invalid Quantity");
    		 this->txtQuantity4->Text = S"0";
    		 this->txtQuantity4->Focus();
    	 }

    	 try {
    		 item5UnitPrice = this->txtUnitPrice5->Text->ToDouble(0);
    	 }
    	 catch(FormatException *)
    	 {
    		 MessageBox::Show(S"Invalid Unit Price");
    		 this->txtUnitPrice5->Text = S"0.00";
    		 this->txtUnitPrice5->Focus();
    	 }

    	 try {
    		 quantity5 = this->txtQuantity5->Text->ToInt16(0);
    	 }
    	 catch(FormatException *)
    	 {
    		 MessageBox::Show(S"Invalid Quantity");
    		 this->txtQuantity5->Text = S"0";
    		 this->txtQuantity5->Focus();
    	 }

    	 try {
    		 item6UnitPrice = this->txtUnitPrice6->Text->ToDouble(0);
    	 }
    	 catch(FormatException *)
    	 {
    		 MessageBox::Show(S"Invalid Unit Price");
    		 this->txtUnitPrice6->Text = S"0.00";
    		 this->txtUnitPrice6->Focus();
    	 }

    	 try {
    		 quantity6 = this->txtQuantity6->Text->ToInt16(0);
    	 }
    	 catch(FormatException *)
    	 {
    		 MessageBox::Show(S"Invalid Quantity");
    		 this->txtQuantity6->Text = S"0";
    		 this->txtQuantity6->Focus();
    	 }

    	 item1SubTotal = item1UnitPrice * quantity1;
    	 item2SubTotal = item2UnitPrice * quantity2;
    	 item3SubTotal = item3UnitPrice * quantity3;
    	 item4SubTotal = item4UnitPrice * quantity4;
    	 item5SubTotal = item5UnitPrice * quantity5;
    	 item6SubTotal = item6UnitPrice * quantity6;

    	 totalOrder    = item1SubTotal + item2SubTotal + item3SubTotal +
    		             item4SubTotal + item5SubTotal + item6SubTotal;

    	 this->txtSubTotal1->Text = item1SubTotal.ToString(S"F");
    	 this->txtSubTotal2->Text = item2SubTotal.ToString(S"F");
    	 this->txtSubTotal3->Text = item3SubTotal.ToString(S"F");
    	 this->txtSubTotal4->Text = item4SubTotal.ToString(S"F");
    	 this->txtSubTotal5->Text = item5SubTotal.ToString(S"F");
    	 this->txtSubTotal6->Text = item6SubTotal.ToString(S"F");
    	 this->txtTotalOrder->Text = totalOrder.ToString(S"F");
    }

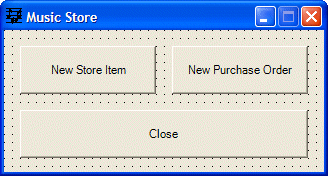

  31. Display the first form (Form1.h [Design]) and design it as follows:

    Control Name Text
    Button btnNewItem New Store Item
    Button btnNewOrder New Purchase Order
    Button btnClose Close
  32. Double-click the New Store Item button
  33. Return to the form and double-click the New Purchase Order and the Close buttons
  34. Implement the Click events as follows:

    #pragma once

    #include "NewStoreItem.h"
    #include "PurchaseOrder.h"

    namespace MusicStore2
    {
    	. . . No Change


    private: System::Void btnNewItem_Click(System::Object *  sender,
    					System::EventArgs *  e)
    {
    	 NewStoreItem *frm = new NewStoreItem;
    	 frm->ShowDialog();
    }

    private: System::Void btnNewOrder_Click(System::Object *  sender,
    					System::EventArgs *  e)
    {
    	 PurchaseOrder *frm = new PurchaseOrder;
    	 frm->ShowDialog();
    }

    private: System::Void btnClose_Click(System::Object *  sender,
    					System::EventArgs *  e)
    {
    	 Close();
    }

    };
    }
  35. Save all





Application Data Entry

To perform data entry, we will apply the concepts reviewed for data records.

Practical Learning Practical Learning: Introducing Data Entry

  1. Display the DataCenter form (DataCenter.h [Design])
  2. In the Toolbox, click the Data button.
    To create a DataSet, click DataSet and click the DataModule form

  3. In the Add Dataset dialog box, click the Untyped Dataset radio button and click OK
  4. While the DataSet control is still selected, in the Properties window, click (Name) and type dsMusicStore
  5. Still in the Properties window, set the DataSetName to MusicStore
  6. Set its Modifiers property to Public so it can be easily accessed from other objects
  7. Under the DataCenter form, click dsMusicStore if necessary. In the Properties window, click the Tables field to reveal its ellipsis button ellipsis and click the ellipsis button ellipsis
  8. In the Tables Collection Editor, click the Add button
  9. Click (Name) and type tblCategories
  10. Click TableName and type Categories
  11. Set its Modifiers property to Public
  12. Click the Columns field to reveal its ellipsis button ellipsis and click its ellipsis button ellipsis
  13. In the Columns Collection Editor, click the Add button
  14. Change the (Name) to colCategory and change the ColumnName field to Category
  15. Set its Modifiers property to Public
  16. Click Close
  17. In the same way, create a table as
    (Name): tblItemTypes
    TableName: ItemTypes
  18. Add a column with the following properties:
    (Name): colItemType
    ColumnName: ItemType
    Modifiers: Public


  19. In the same way, create a table as
    (Name): tblAvailableItems
    TableName: AvailableItems
    Modifiers: Public
  20. Add the following columns to it

    (Name) ColumnName Modifiers
    colItemNumber ItemNumber Public
    colItemCategory Category Public
    colTypeOfItem ItemType Public
    colItemName ItemName Public
    colUnitPrice UnitPrice Public
  21. Click Close twice
  22. Display the Categories form and double-click its Add button
  23. In the top section of the file, type

    #pragma once

    #include "DataCenter.h"

    using namespace System;
    using namespace System::ComponentModel;
    using namespace System::Collections;
    using namespace System::Windows::Forms;
    using namespace System::Data;
    using namespace System::Drawing;
  24. Implement the event as follows:

    System::Void btnAdd_Click(System::Object *  sender, System::EventArgs *  e)
    {
    	 // Get a reference to the Data Center because
    	 // that's where the DataSet object resides
    	 DataCenter *frmData = new DataCenter;

    	 // Create a new record for the Categories table
    DataRow *rowNewCategory = frmData->dsMusicStore->Tables->Item[S"Categories"]->NewRow();
    	 // Specify only the Category column since the CategoryID is auto-incrementing
    	 rowNewCategory->Item[0] = this->txtNewCategory->Text;
    	 // Add the new record to the Categories table
    	 frmData->dsMusicStore->Tables->Item[S"Categories"]->Rows->Add(rowNewCategory);

    	 // Display the current records of the Categories table so
    	 // the user would know what categories are already in the table
    	 this->dataGrid1->DataSource = frmData->dsMusicStore;
    	 this->dataGrid1->DataMember = S"Categories";

    	 // Reset the text box in case the user wants to add another category
    	 this->txtNewCategory->Text = S"";
    	 this->txtNewCategory->Focus();
    }
  25. Save the form
  26. Display the ItemTypes form and double-click its Add button
  27. In the top section of the file, type

    #pragma once

    #include "DataCenter.h"

    using namespace System;
    using namespace System::ComponentModel;
    using namespace System::Collections;
    using namespace System::Windows::Forms;
    using namespace System::Data;
    using namespace System::Drawing;
  28. Implement the event as follows:

    System::Void btnAdd_Click(System::Object *  sender, System::EventArgs *  e)
    {
    	 DataCenter *frmData = new DataCenter;

    DataRow *rowNewType = frmData->dsMusicStore->Tables->Item[S"ItemTypes"]->NewRow();
    	 rowNewType->Item[frmData->colItemType] = this->txtNewItemType->Text;
    	 frmData->dsMusicStore->Tables->Item[S"ItemTypes"]->Rows->Add(rowNewType);

    	 this->dataGrid1->DataSource = frmData->dsMusicStore;
    	 this->dataGrid1->DataMember = S"ItemTypes";

    	 this->txtNewItemType->Text = S"";
    	 this->txtNewItemType->Focus();
    }
  29. Save the form

Saving the Items and the Orders

Based on the close relationship between the DataSet class and XML, we will save our records as XML.

Practical Learning Practical Learning: Opening an XML File

  1. Display the Categories form and double-click its Add button
  2. Change the Click event as follows:

    #pragma once

    #include "DataCenter.h"

    namespace MusicStore2a
    {
    using namespace System;
    using namespace System::ComponentModel;
    using namespace System::Collections;
    using namespace System::Windows::Forms;
    using namespace System::Data;
    using namespace System::Drawing;
    using namespace System::IO;
    using namespace System::Xml;

    	. . . No Change


    			. . . No Change


    System::Void btnAdd_Click(System::Object *  sender, System::EventArgs *  e)
    {
    	 // Get a reference to the Data Center because
    	 // that's where the DataSet object resides
    	 DataCenter *frmData = new DataCenter;
    	 // This is the XML file that will holds the Categories
    	 String *strFilename = S"Categories.xml";

    	 // If the file exists already, open it
    	 if( File::Exists(strFilename) )
    		 frmData->dsMusicStore->ReadXml(strFilename);

    	 // Create a new record for the Categories table
    DataRow *rowNewCategory = frmData->dsMusicStore->Tables->Item[S"Categories"]->NewRow();
    	 // Specify only the Category column since the CategoryID is auto-incrementing
    	 rowNewCategory->Item[0] = this->txtNewCategory->Text;
    	 // Add the new record to the Categories table
    	 frmData->dsMusicStore->Tables->Item[S"Categories"]->Rows->Add(rowNewCategory);

    	 // Update the XML file
    	 frmData->dsMusicStore->WriteXml(strFilename);

    	 // Display the current records of the Categories table so
    	 // the user would know what categories are already in the table
    	 this->dataGrid1->DataSource = frmData->dsMusicStore;
    	 this->dataGrid1->DataMember = S"Categories";

    	 // Reset the text box in case the user wants to add another category
    	 this->txtNewCategory->Text = S"";
    	 this->txtNewCategory->Focus();
    }
    };
    }
  3. Display the Item Types form and double-click its Add button
  4. Change the Click event as follows:

    #pragma once

    #include "DataCenter.h"


    namespace MusicStore2a
    {
    using namespace System;
    using namespace System::ComponentModel;
    using namespace System::Collections;
    using namespace System::Windows::Forms;
    using namespace System::Data;
    using namespace System::Drawing;
    using namespace System::IO;
    using namespace System::Xml;

    	. . . No Change


    System::Void btnAdd_Click(System::Object *  sender, System::EventArgs *  e)
    {
    	 DataCenter *frmData = new DataCenter;
    	 String *strFilename = S"ItemTypes.xml";

    	 if( File::Exists(strFilename) )
    		 frmData->dsMusicStore->ReadXml(strFilename);

    	 DataRow *rowNewType = frmData->dsMusicStore->Tables->Item[S"ItemTypes"]->NewRow();
    	 rowNewType->Item[frmData->colItemType] = this->txtNewItemType->Text;
    	 frmData->dsMusicStore->Tables->Item[S"ItemTypes"]->Rows->Add(rowNewType);

    	 frmData->dsMusicStore->WriteXml(strFilename);

    	 this->dataGrid1->DataSource = frmData->dsMusicStore;
    	 this->dataGrid1->DataMember = S"ItemTypes";

    	 this->txtNewItemType->Text = S"";
    	 this->txtNewItemType->Focus();
    }

    };
    }
  5. Display the New Store Item form.
    Double-click an unoccupied area of its body and change its Load event as follows:

    System::Void NewStoreItem_Load(System::Object *  sender, System::EventArgs *  e)
    {
    	 DataCenter *frmData = new DataCenter;
    	 XmlTextReader * rdrMusicStore = 0;

    	 try {
    		 String *strFilename = S"Categories.xml";

    		 if( File::Exists(strFilename) )
    		 {
    			 rdrMusicStore = new XmlTextReader(strFilename);

    			 // Scan the XML file
    			 while (rdrMusicStore->Read())
    			 {
    			// every time you find an element, find out what type it is
    			 // If you find a category, put it in the Categories list box
    		 if( XmlNodeType::Element && rdrMusicStore->Name->Equals(S"Category") )
    			 {
     this->cboCategories->Items->Add(rdrMusicStore->ReadElementString(S"Category"));
    			 }
                    		 }
    	                }

                    	 strFilename = S"ItemTypes.xml";

                    	 if( File::Exists(strFilename) )
                    	 {
    		 rdrMusicStore = new XmlTextReader(strFilename);

    		 // Scan the XML file
    		 while (rdrMusicStore->Read())
    		 {
    			 // every time you find an element, find out what type it is
    			// If you find an ItemType, put it in the Item Types list box
    		 if( XmlNodeType::Element && rdrMusicStore->Name->Equals(S"ItemType") )
    			 {
    	this->cboItemTypes->Items->Add(rdrMusicStore->ReadElementString(S"ItemType"));
    			 }
    		 }
                    	 }
                    }
    	 catch(XmlException *)
    	 {
    		 MessageBox::Show(S"Invalid XML file");
    	 }
    	 __finally
    	 {
    		 if( rdrMusicStore != 0 )
    			 rdrMusicStore->Close();
    	 }

    	 // We will generate a random number for the store item
    	 DateTime tmeNow = DateTime::Now;
    	 Random *rndNumber = new Random(tmeNow.Millisecond);
    	 String *strNumber = rndNumber->Next(100000, 999999).ToString();

    	 // Display the new number in the Part # text box
    	 this->txtItemNumber->Text = strNumber;

    	 // Disable the Create button to indicate that the item is not ready
    	 this->btnCreate->Enabled = false;
    }
  6. Return to the New Store Item form. Double-click the top New button and change its Click event as follows:

    System::Void btnNewCategory_Click(System::Object *  sender, System::EventArgs *  e)
    {
    	 Categories *frmCat = new Categories;

    	 frmCat->ShowDialog();

    	 XmlTextReader *rdrMusicStore = 0;

    	 try {
    		 String *strFilename = S"Categories.xml";

    		 if( File::Exists(strFilename) )
    		 {
    			 this->cboCategories->Items->Clear();

    			 rdrMusicStore = new XmlTextReader(strFilename);

    			 // Scan the XML file
    			 while (rdrMusicStore->Read())
    			 {
    		 // every time you find an element, find out what type it is
    		 // If you find a category, put it in the Categories list box
    	 if( XmlNodeType::Element && rdrMusicStore->Name->Equals(S"Category") )
    				 {
    		 String *strNew = rdrMusicStore->ReadElementString(S"Category");
    			 if( !this->cboCategories->Items->Contains(strNew) )
    				 this->cboCategories->Items->Add(strNew);
    				 }
    			 }
    		 }
    	 }
    	 catch(XmlException *)
    	 {
    		 MessageBox::Show(S"Invalid XML file");
    	 }
    	 __finally
    	 {
    		 if( rdrMusicStore != 0 )
    			 rdrMusicStore->Close();
    	 }
    }
  7. Return to the New Store Item form. Double-click the other New button and change its Click event as follows:

    System::Void btnNewType_Click(System::Object *  sender, System::EventArgs *  e)
    {
    	 ItemTypes *frmTypes = new ItemTypes;

    	 frmTypes->ShowDialog();

    	 XmlTextReader *rdrMusicStore = 0;

    	 try {
    		 String *strFilename = S"ItemTypes.xml";

    		 if( File::Exists(strFilename) )
    		 {
    			 rdrMusicStore = new XmlTextReader(strFilename);

    			 while (rdrMusicStore->Read())
    			 {
    	if( XmlNodeType::Element && rdrMusicStore->Name->Equals(S"ItemType") )
    				 {
    	 String *strNewType = rdrMusicStore->ReadElementString(S"ItemType");
    	 if( !this->cboItemTypes->Items->Contains(strNewType) )
    		 this->cboItemTypes->Items->Add(strNewType);
    				 }
    			 }
    		 }
    	 }
    	 catch(XmlException *)
    	 {
    		 MessageBox::Show(S"Invalid XML file");
    	 }
    	 __finally
    	 {
    		 if( rdrMusicStore != 0 )
    			 rdrMusicStore->Close();
    	 }
    }
  8. Return to the New Store Item form. Double-click the Item Name text box and implement its TextChanged event as follows:

    System::Void txtItemName_TextChanged(System::Object *  sender, System::EventArgs *  e)
    {
    	 if( this->txtItemName->Text->Equals(S"") )
    		 this->btnCreate->Enabled = false;
    	 else
    		 this->btnCreate->Enabled = true;
    }
  9. Return to the New Store Item form. Double-click the Unit Price text box and implement its TextChanged event as follows:

    System::Void txtUnitPrice_TextChanged(System::Object *  sender, System::EventArgs *  e)
    {
    	 if( this->txtUnitPrice->Text->Equals(S"") )
    		 this->btnCreate->Enabled = false;
    	 else
    		 this->btnCreate->Enabled = true;
    }
  10. Return to the New Store Item form. Double-click the Item Number text box and implement its TextChanged event as follows:

    System::Void txtItemNumber_TextChanged(System::Object *  sender, System::EventArgs *  e)
    {
    	 if( this->txtItemNumber->Text->Equals(S"") )
    		 this->btnCreate->Enabled = false;
    	 else
    		 this->btnCreate->Enabled = true;
    }
  11. Return to the New Store Item form. Double-click its Create button and implement the event as follows:

    System::Void btnCreate_Click(System::Object *  sender, System::EventArgs *  e)
    {
    	 // Get a reference to the Data Center because
    	 // that's where the DataSet object resides
    	 DataCenter *frmData = new DataCenter;

    	 // This is the XML file that will holds the general inventory
    	 // of the current items in the store
    	 String *strAvailableItems = S"Inventory.xml";

    	 // If the file exists already, open it
    	 if( File::Exists(strAvailableItems) )
    		 frmData->dsMusicStore->ReadXml(strAvailableItems);

    	 // Create a new record for the AvailableItems table
     DataRow *rowNewItem = frmData->dsMusicStore->Tables->Item[S"AvailableItems"]->NewRow();

     	rowNewItem->Item[S"ItemNumber"] = this->txtItemNumber->Text;
     	rowNewItem->Item[S"Category"] = this->cboCategories->Text;
    	 rowNewItem->Item[S"ItemType"] = this->cboItemTypes->Text;
    	 rowNewItem->Item[S"ItemName"]   = this->txtItemName->Text;
    	 rowNewItem->Item[S"UnitPrice"]  = this->txtUnitPrice->Text;
    	 // Add the new record to the AvailableItems table
    	 frmData->dsMusicStore->Tables->Item[S"AvailableItems"]->Rows->Add(rowNewItem);

    	 // Update the XML file
    	 frmData->dsMusicStore->WriteXml(strAvailableItems);

    	 // Reset the controls in case the user wants to add another record
    	 this->cboCategories->SelectedIndex = -1;
    	 this->cboItemTypes->SelectedIndex  = -1;
    	 this->txtItemName->Text = S"";
    	 this->txtUnitPrice->Text = S"0.00";

    	 // We will generate a random number for the store item
    	 DateTime tmeNow = DateTime::Now;
    	 Random *rndNumber = new Random(tmeNow.Millisecond);
    	 String *strNumber = rndNumber->Next(100000, 999999).ToString();

    	 // Display the new number in the Part # text box
    	 this->txtItemNumber->Text = strNumber;

    	 // Disable the OK button to indicate that the item is not ready
    	 this->btnCreate->Enabled = false;
    }
  12. Execute the application
  13. Click the New Store Item button
  14. Click the top New button to display the Categories form and create a few categories as follows:

    Category
    Electric Guitar
    Acoustic Guitar
    Bass
    Keyboard
    Stands
    Cables
    Cases
    DJ Equipment
  15. Close the Categories form and open the Item Types form
  16. Create a few item types as follows:

    Item Type
    4-String
    5-String
    6-String
    12-String
    Solid Body
    Hollow Body
    Left-Handed
    Guitar Stand
    DJ CD Players
  17. Close the Item Types form
  18. In the New Store Item form, create the following items (let the computer generate item numbers):

    Category Item Type Item Name Unit Price
    Electric Guitar Solid Body Gibson Les Paul Standard Electric Guitar 1950.00
    Bass 6-String Ibanez SR506 6-String Electric Bass 595.50
    Electric Guitar Hollow Body Oscar Schmidt OE40 Hollow Body Electric Guitar 205.95
    Acoustic Guitar Left-Handed Yamaha Left-Handed FG413SL Acoustic Guitar 295.95
    Cables Instrument Cable Monster Cable S-100 Straight Instrument Cable 12.95
    Bass Combo Amps Behringer BX1200 Ultrabass Amplifier (120 Watts, 2-Channel) 150.00
    Keyboard Synthesizers Korg Triton Le 61-Key Workstation Synth 895.95
    Stands Guitar Stand String Swing Metal Guitar Wall Hanger 9.95
    Electric Guitar Solid Body Epiphone LP-100 Electric Guitar 275.95
    Keyboard Digital Piano Yamaha YDP223 88-Key Graded Hammer Piano With Bench 1490.00
    Cables Guitar Cable Spectraflex Guitar Cable 42.25
    Electric Guitar Solid Body Gibson Les Paul Classic Electric Guitar 1625.95
    Stands Guitar Stand Locking Tubular Guitar Stand 4.95
    Electric Guitar Solid Body ESP LTD Viper 400 Electric Guitar 585.50
    Acoustic Guitar 12-String Washburn J28S12DL Cumberland 12-String Guitar 650.75
    Electric Guitar Hollow Body Ibanez Artcore AF75 Electric Guitar 315.95
    Keyboard Synthesizers Korg Triton Extreme 61-Key Synth Workstation 1895.00
    Electric Guitar Solid Body Epiphone Les Paul Standard 525.95
    Stands Guitar Stand Guitar Folding Stand 12.95
    Electric Guitar Hollow Body Gibson ES-335 Reissue 1850.00
    Acoustic Guitar 12-String Martin DM12 850.00
    Stands Guitar Stand Metal Guitar Wall Hanger 9.95
    Acoustic Guitar Left Handed Yamaha FG413SL 295.95
    Electric Guitar Solid Body Gibson Faded SG Special 625.95
    Bass 4-String Ibanez SR500 525.95
    Electric Guitar Hollow Body Oscar Schmidt OE40 225.95
    Electric Guitar Left Handed Schecher C-1 450.95
    Cases Cases Les Paul Hardshell Case 39.95
    Cables Instrument Cable Hosa Dual Instrument Cable 7.25
  19. Close the forms and return to your programming environment
  20. Display the Purchase Order form and double-click an unoccupied area of its body away from (outside of) any group box
  21. Implement the Load event as follows:

    #pragma once

    #include "DataCenter.h"
    #include "NewStoreItem.h"

    using namespace System;
    using namespace System::ComponentModel;
    using namespace System::Collections;
    using namespace System::Windows::Forms;
    using namespace System::Data;
    using namespace System::Drawing;
    using namespace System::IO;
    using namespace System::Xml;

    namespace MusicStore2a
    {
    	. . . No Change



    Void PurchaseOrder_Load(System::Object *  sender, System::EventArgs *  e)
    {
    	 // Get a reference to the object that holds the DataSet
    	 DataCenter *frmData = new DataCenter;
    	 // Identify the file that holds the categories
    	 String *strCategories = S"Categories.xml";

    	 // If that file exists, then open it
    	 if( File::Exists(strCategories) )
    		 frmData->dsMusicStore->ReadXml(strCategories);

    	 // Just in case, empty the Categories list box
    	 this->lbxCategories->Items->Clear();

    	 DataRow *row = 0;
    	 // Scan the whole file to locate each category and retrieve it
    	 for(int i = 0; i < frmData->tblCategories->Rows->Count; i++)
    	 {
    		 row = frmData->tblCategories->Rows->Item[i];
    this->lbxCategories->Items->Add(dynamic_cast<String *>(row->Item[S"Category"]));
    	 }
    }
    }
  22. Return to the Purchase Order form and double-click the Category list box
  23. Implement its SelectedIndexChanged event as follows:

    System::Void lbxCategories_SelectedIndexChanged(System::Object *  sender, System::EventArgs *  e)
    {
    	 // Get a reference to the object that holds the DataSet
    	 DataCenter *frmData = new DataCenter;
    	 // Identify the file that holds the items
    	 String *strAvailableItems = S"Inventory.xml";
    	 // Identify the category that the user selected
    	 String *strSelectedCategory = this->lbxCategories->Text;

    	 // If that file exists, then open it
    	 if( File::Exists(strAvailableItems) )
    		 frmData->dsMusicStore->ReadXml(strAvailableItems);

    	 // Empty the Item Types list box
    	 this->lbxItemTypes->Items->Clear();
    	 // Also empty the Available Items list box
    	 this->lbxAvailableItems->Items->Clear();

    	 DataRow *row = 0;
    	 // Scan the whole table to locate each record
    	 for(int i = 0; i < frmData->tblAvailableItems->Rows->Count; i++)
    	 {
    		 // Get a reference to the current record
    		 row = frmData->tblAvailableItems->Rows->Item[i];
    		 // Get the name of the category of the current record
    		 String *strCurrentCategory = dynamic_cast<String *>(row->Item[S"ItemCategory"]);

    		 // If the current category matches the one the user selected...
    		 if( strCurrentCategory->Equals(strSelectedCategory) )
    		 {
    			 // ... then get the corresponding item type
    			 String *strType     = dynamic_cast<String *>(row->Item[S"ItemType"]);
    			 // Find out if the Item Types list box already contains the item type
    			 // If it doesn't, then put it in the Item Types list box
    			 if( !this->lbxItemTypes->Items->Contains(strType) )
    				 this->lbxItemTypes->Items->Add(strType);
    		 }
    	 }
    }
  24. Return to the Purchase Order form and double-click the Item Types list box
  25. Implement its SelectedIndexChanged event as follows:

    System::Void lbxItemTypes_SelectedIndexChanged(System::Object *  sender, System::EventArgs *  e)
    {
    	 // Get a reference to the object that holds the DataSet
    	 DataCenter *frmData = new DataCenter;
    	 // Identify the file that holds the items
    	 String *strAvailableItems = S"Inventory.xml";
    	 // Identify the category that the user selected
    	 String *strSelectedCategory = this->lbxCategories->Text;
    	 String *strSelectedType     = this->lbxItemTypes->Text;

    	 // If file exists, then open it
    	 if( File::Exists(strAvailableItems) )
    		 frmData->dsMusicStore->ReadXml(strAvailableItems);

    	 // Empty the Available Items list box
    	 this->lbxAvailableItems->Items->Clear();

    	 DataRow *row = 0;
    	 // Scan the whole table to locate each record
    	 for(int i = 0; i < frmData->tblAvailableItems->Rows->Count; i++)
    	 {
    		 // Get a reference to the current record
    		 row = frmData->tblAvailableItems->Rows->Item[i];
    		 // Get the name of the category of the current record
    	String *strCurrentCategory = dynamic_cast<String *>(row->Item[S"ItemCategory"]);
    		 // Get the item type of the current record
    		 String *strCurrentType = dynamic_cast<String *>(row->Item[S"ItemType"]);

    		 // If the current category matches the one the user selected
    		 // and the current item type matches the type the user selected ...
    		 if( strCurrentCategory->Equals(strSelectedCategory) &&
    			 strCurrentType->Equals(strSelectedType) )
    		 {
    			 // ... then get the corresponding item name
    	 this->lbxAvailableItems->Items->Add(dynamic_cast<String *>(row->Item[S"ItemName"]));
    		 }
    	 }
    }
  26. Return to the Purchase Order form and click the Available Items list box
  27. In the Properties window, click the Events button and double-click the DoubleClick field
  28. Implement its DoubleClick event as follows:

    System::Void lbxAvailableItems_DoubleClick(System::Object *  sender, System::EventArgs *  e)
    {
    	 // Get a reference to the object that holds the DataSet
    	 DataCenter *frmData = new DataCenter;
    	 // Identify the file that holds the items
    	 String *strAvailableItems = S"Inventory.xml";
    	 // Identify the item that the user selected
    	 String *strSelectedCategory = this->lbxCategories->Text;
    	 String *strSelectedType     = this->lbxItemTypes->Text;
    	 String *strSelectedName     = this->lbxAvailableItems->Text;

    	 // If file exists, then open it
    	 if( File::Exists(strAvailableItems) )
    		 frmData->dsMusicStore->ReadXml(strAvailableItems);

    	 DataRow *row = 0;
    	 // Scan the whole table to locate each record
    	 for(int i = 0; i < frmData->tblAvailableItems->Rows->Count; i++)
    	 {
    		 // Get a reference to the current record
    		 row = frmData->tblAvailableItems->Rows->Item[i];
    		 // Get the name of the category of the current record
    	String *strCurrentCategory = dynamic_cast<String *>(row->Item[S"ItemCategory"]);
    		 // Get the item type of the current record
    	 String *strCurrentType = dynamic_cast<String *>(row->Item[S"ItemType"]);
    		 // Get the name of the current item
    	 String *strCurrentName = dynamic_cast<String *>(row->Item[S"ItemName"]);
    		 // Get the item number of the current item
    	 String *strCurrentNumber = dynamic_cast<String *>(row->Item[S"ItemNumber"]);
    		 // Get the unit price of the current item
    	 String *strCurrentPrice = dynamic_cast<String *>(row->Item[S"UnitPrice"]);

    	 // If the current parts match the ones the user selected ...
    	 if( strCurrentCategory->Equals(strSelectedCategory) &&
    	     strCurrentType->Equals(strSelectedType) &&
                         strCurrentName->Equals(strSelectedName) )
    	 {
    		 // ... then consider the corresponding item
    		 if( this->txtItemNumber1->Text->Equals(S"") )
    		 {
    			 this->txtItemNumber1->Text = strCurrentNumber;
    			 this->txtItemName1->Text   = strCurrentName;
    			 this->txtUnitPrice1->Text  = strCurrentPrice;
    			 this->txtQuantity1->Text   = S"1";
    			 this->txtSubTotal1->Text   = strCurrentPrice;
    		 }
    		 else if( this->txtItemNumber2->Text->Equals(S"") )
    		 {
    			 this->txtItemNumber2->Text = strCurrentNumber;
    			 this->txtItemName2->Text   = strCurrentName;
    			 this->txtUnitPrice2->Text  = strCurrentPrice;
    			 this->txtQuantity2->Text   = S"1";
    			 this->txtSubTotal2->Text   = strCurrentPrice;
    		 }
    		 else if( this->txtItemNumber3->Text->Equals(S"") )
    		 {
    			 this->txtItemNumber3->Text = strCurrentNumber;
    			 this->txtItemName3->Text   = strCurrentName;
    			 this->txtUnitPrice3->Text  = strCurrentPrice;
    			 this->txtQuantity3->Text   = S"1";
    			 this->txtSubTotal3->Text   = strCurrentPrice;
    		 }
    		 else if( this->txtItemNumber4->Text->Equals(S"") )
    		 {
    			 this->txtItemNumber4->Text = strCurrentNumber;
    			 this->txtItemName4->Text   = strCurrentName;
    			 this->txtUnitPrice4->Text  = strCurrentPrice;
    			 this->txtQuantity4->Text   = S"1";
    			 this->txtSubTotal4->Text   = strCurrentPrice;
    		 }
    		 else if( this->txtItemNumber5->Text->Equals(S"") )
    		 {
    			 this->txtItemNumber5->Text = strCurrentNumber;
    			 this->txtItemName5->Text   = strCurrentName;
    			 this->txtUnitPrice5->Text  = strCurrentPrice;
    			 this->txtQuantity5->Text   = S"1";
    			 this->txtSubTotal5->Text   = strCurrentPrice;
    		 }
    		 else // if( this->txtItemNumber6->Text->Equals(S"") )
    		 {
    			 this->txtItemNumber6->Text = strCurrentNumber;
    			 this->txtItemName6->Text   = strCurrentName;
    			 this->txtUnitPrice6->Text  = strCurrentPrice;
    			 this->txtQuantity6->Text   = S"1";
    			 this->txtSubTotal6->Text   = strCurrentPrice;
    		 }
    	 }
    	 }
    }
  29. Execute the application and perform a few transactions


Home Copyright © 2005-2010 FunctionX, Inc.
