Microsoft Visual C# Example: The z Score



Introduction

The z score, also called a standardized value, is a value a member of a (numeric) collection is above or below the mean. Obviously before calculating it, you must have a series of values. You must also calculate the mean of all those values. You must also have the standard deviation.

The formula to calculate the z score of an element of a sample is:

z score

The factors in this equation are:

Factor Description
x An element of the series
x The mean of the sample
s The standard deviation of the sample

The formula to calculate the z score of an element of a population is:

z score

The factors in this equation are:

Factor Description
x An element of the series
µ The mean of the population
σ The standard deviation of the population

ApplicationApplication: Starting the Application

  1. Start Microsoft Visual Studio
  2. To create a new application, on the main menu, click File -> New Project...
  3. In the middle list, click Windows Forms Application
  4. Change the Name to ZScore1
  5. Click OK
  6. In the Solution Explorer, right-click Form1.cs and click Rename
  7. Type Exercise.cs and press Enter

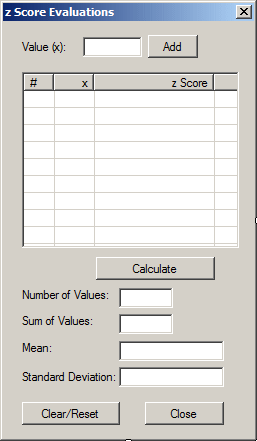

  8. Design the form as follows:

    z Score
    Control Name Text
    Label Label   Value (x):
    TextBox ListBox txtValue
    Button Button btnAdd Add
    ListView Label lvwValues FullRowSelect: True
    GridLines: True
    View: Details
    Columns
    (Name) Text TextAlign Width
    colIndex #   30
    colX x   40
    colZScore z Score Right 120
    Button Button btnCalculate Calculate
    Label Label   Number of Values:
    TextBox Text Box txtCount
    Label Label   Sum of Values:
    TextBox Text Box txtSum
    Label Label   Mean:
    TextBox Text Box txtMean
    Label Label   Standard Deviation
    TextBox ListBox txtStandardDeviation
    Button Button btnClear Clear/Reset
    Button Button btnClose Close
  9. Double-click an unoccupied area of the form
  10. Change the file as follows:
    using System;
    using System.Collections.Generic;
    using System.ComponentModel;
    using System.Data;
    using System.Drawing;
    using System.Linq;
    using System.Text;
    using System.Windows.Forms;

    namespace ZScore1
    {
        public partial class Exercise : Form
        {
            List<double> values;

            public Exercise()
            {
                InitializeComponent();
            }

            private void Exercise_Load(object sender, EventArgs e)
            {
                values = new List<double>();
            }

            void ShowValues()
            {
                int i = 0;
                lvwValues.Items.Clear();

                foreach (double value in values)
                {
                    ListViewItem lviValue = new ListViewItem(i.ToString());
                    lviValue.SubItems.Add(value.ToString());
                    lvwValues.Items.Add(lviValue);
                }
            }
        }
    }
  11. Return to the form and double-click the Add button
  12. Implement the event as follows:
    private void btnAdd_Click(object sender, EventArgs e)
    {
        double x = 0.00D;
        double sum = 0.00D, mean = 0.00D;
        double bigSum = 0.00, stdDev;

        // Check that the user entered a value for x
        if (txtValue.Text.Length == 0)
        {
            MessageBox.Show("You must enter the x value.",
                            "Statistics");
            return;
        }

        // Get the value for x
        try
        {
            x = double.Parse(txtValue.Text);
        }
        catch (FormatException)
        {
            MessageBox.Show("The value you entered is invalid.",
                            "Statistics");
        }

        // Add the value to the list
        values.Add(x);

        ShowValues();

        // Calculate the sum of the values
        foreach (double value in values)
            sum += value;

        mean = sum / values.Count;

        // Calculate the total for the standard deviation
        for (int i = 0; i < values.Count; i++)
            bigSum += Math.Pow(values[i] - mean, 2);

        // Now we can calculate the standard deviation
        stdDev = Math.Sqrt(bigSum / (values.Count - 1));

        txtCount.Text = values.Count.ToString();
        txtSum.Text = sum.ToString();
        txtMean.Text = mean.ToString();
        txtStandardDeviation.Text = stdDev.ToString();

        txtValue.Text = "";
        txtValue.Focus();
    }
  13. Return to the form
  14. Double-click the Calculate button
  15. Implement the event as follows:
    private void btnCalculate_Click(object sender, EventArgs e)
    {
        double sum = 0.00, mean = 0.00;
        double bigSum = 0.00, stdDev;

        lvwValues.Items.Clear();

        // Example Values: To use these values, remove comment
        /*
        values.Add(70.8); values.Add(66.2); values.Add(71.7);
        values.Add(68.7); values.Add(67.6); values.Add(69.2);
        values.Add(66.5); values.Add(67.2); values.Add(68.3);
        values.Add(65.6); values.Add(63);   values.Add(68.3);
        values.Add(73.1); values.Add(67.6); values.Add(68);
        values.Add(71);   values.Add(61.3); values.Add(76.2);
        values.Add(66.3); values.Add(69.7); values.Add(65.4);
        values.Add(70);   values.Add(62.9); values.Add(68.5);
        values.Add(68.3); values.Add(69.4); values.Add(69.2);
        values.Add(68);   values.Add(71.9); values.Add(66.1);
        values.Add(72.4); values.Add(73);   values.Add(68);
        values.Add(68.7); values.Add(70.3); values.Add(63.7);
        values.Add(71.1); values.Add(65.6); values.Add(68.3);
        values.Add(66.3); */

        foreach (double value in values)
            sum += value;
        mean = sum / values.Count;

        // Calculate the total for the standard deviation
        for (int i = 0; i < values.Count; i++)
            bigSum += Math.Pow(values[i] - mean, 2);

        // Now we can calculate the standard deviation
        stdDev = Math.Sqrt(bigSum / (values.Count - 1));

        int j = 1;
        foreach (double value in values)
        {
            ListViewItem lviValue = new ListViewItem(j.ToString());
            lviValue.SubItems.Add(value.ToString());
            lviValue.SubItems.Add(((value - mean) / stdDev).ToString());
            lvwValues.Items.Add(lviValue);
            j++;
        }

        txtCount.Text = values.Count.ToString();
        txtSum.Text = sum.ToString();
        txtMean.Text = mean.ToString();
        txtStandardDeviation.Text = stdDev.ToString();
    }
  16. Return to the form
  17. Double-click the Clear/Reset button
  18. Implement the event as follows:
    private void btnClear_Click(object sender, EventArgs e)
    {
        txtValue.Text = "";
        lvwValues.Items.Clear();
        txtCount.Text = "";
        txtSum.Text = "";
        txtMean.Text = "";
        txtStandardDeviation.Text = "";

        txtValue.Focus();
    }
  19. Return to the form
  20. Double-click the Close button
  21. Implement the event as follows:
    private void btnClose_Click(object sender, EventArgs e)
    {
        Close();
    }

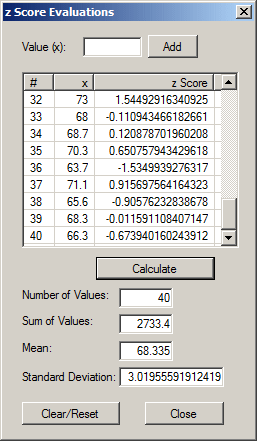

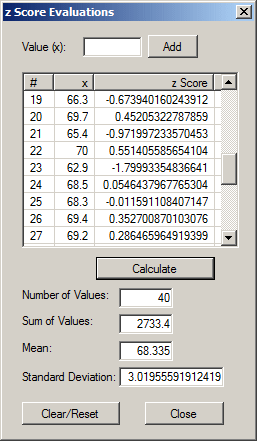

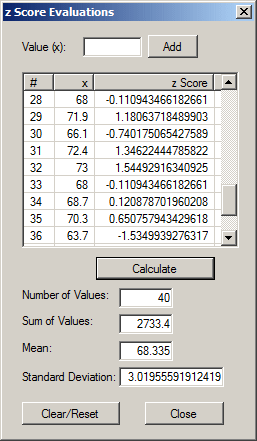

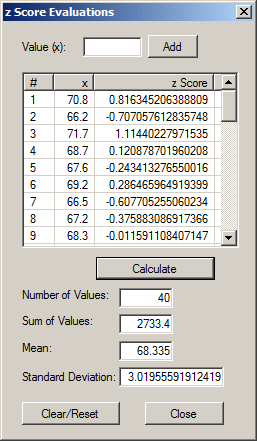

  22. To execute, press F5
  23. Enter values and click Add each time
  24. After adding the values, click Calculate

    z Score z Score
    z Score z Score
    z Score

  25. Close the form and return to your programming environment

Application
