Example Application:
Payroll Processing



Payroll Information

Introduction

This sample application demonstrates various features of the text box. It reviews the textual sides of the control. It takes advantages of its different properties such as its string and the text alignment.

New in the .NET Framework 2.0, the string of a text box could come from a preset list of items, whether from the file system or from the history list of URLs from the browser. This features is implemented through the AutoCompleteCustomSource, the AutoCompleteSource, the CustomSource, and the AutoCompleteMode properties.



Practical LearningPractical Learning: Creating the Application

  1. To start a new application, on the main menu, click File -> New -> Project (or File -> New Project)
  2. In the Templates list, click Windows Application and set the name to PayrollProcessing1
  3. Click OK

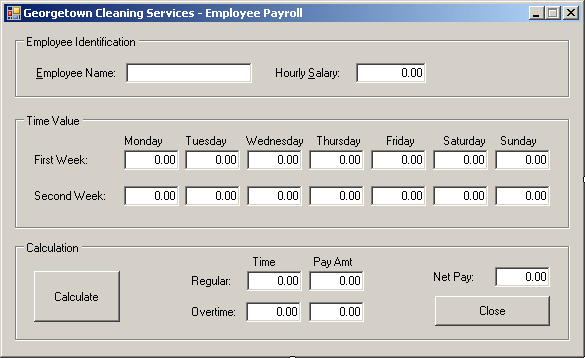

  4. Design the form as follows:

    Payroll Processing
    Control Name Text Other Properties
    GroupBox GroupBox   Employee Identification
    Label Label   &Employee Name:
    TextBox TextBox txtEmployeeName
    Label Label   Hourly &Salary:
    TextBox TextBox txtHourlySalary
    GroupBox GroupBox   Time Values
    Label Label   Monday
    Label Label   Tuesday
    Label Label   Wednesday
    Label Label   Thursday
    Label Label   Friday
    Label Label   Saturday
    Label Label   Sunday
    Label Label   First Week:
    TextBox TextBox txtMonday1 0.00 TextAlign: Right
    TextBox TextBox txtTuesday1 0.00 TextAlign: Right
    TextBox TextBox txtWednesday1 0.00 TextAlign: Right
    TextBox TextBox txtThursday1 0.00 TextAlign: Right
    TextBox TextBox txtFriday1 0.00 TextAlign: Right
    TextBox TextBox txtSaturday1 0.00 TextAlign: Right
    TextBox TextBox txtSunday1 0.00 TextAlign: Right
    Label Label   Second Week:
    TextBox TextBox txtMonday2 0.00 TextAlign: Right
    TextBox TextBox txtTuesday2 0.00 TextAlign: Right
    TextBox TextBox txtWednesday2 0.00 TextAlign: Right
    TextBox TextBox txtThursday2 0.00 TextAlign: Right
    TextBox TextBox txtFriday2 0.00 TextAlign: Right
    TextBox TextBox txtSaturday2 0.00 TextAlign: Right
    TextBox TextBox txtSunday2 0.00 TextAlign: Right
    GroupBox GroupBox   Payroll Processing
    Label Label   Hours
    Label Label   Amount
    Button Button btnCalculate Calculate
    Label Label   Regular
    TextBox TextBox txtRegularTime 0.00 TextAlign: Right
    TextBox TextBox txtRegularAmount 0.00 TextAlign: Right
    Label Label   Net Pay:
    TextBox TextBox txtNetPay 0.00 TextAlign: Right
    Label Label   Overtime
    TextBox TextBox txtOvertime 0.00 TextAlign: Right
    TextBox TextBox txtOvertimeAmount 0.00 TextAlign: Right
    Button Button btnClose
  5. Double-click the Close button and implement its Click event as follows:

    private void btnClose_Click(object sender, EventArgs e)
    {
        Close();
    }
  6. On the form, click the text box at the intersection of Time and Regular
  7. In the Properties window, double-click ReadOnly to change its value to True
  8. Do the same for the following text boxes: txtRegularAmount, txtNetPay, txtOvertime, and txtOvertimeAmount
  9. On the form, click the txtEmployeeName text box
  10. In the Properties window, click AutoCompleteCustomSource and click its ellipsis button
  11. In the String Collection Editor, enter the following names:
    Micheline Hammond
    Paul Bertrand Yamaguchi
    Gertrude Monay
    Ernestine Ngaleu
    Andy Barang
    Christophe Yuen
    Jean Michel Kankan
  12. Click OK
  13. Click AutoCompleteSource, then click the arrow of its combo box and select CustomSource
  14. Click AutoCompleteMode, then click the arrow of its combo box and select Accept
  15. On the form, double-click the Calculate button and implement its event as follows:

    private void btnCalculate_Click(object sender, EventArgs e)
    {
            double monday1 = 0.00, tuesday1 = 0.00, wednesday1 = 0.00,
                        thursday1 = 0.00, friday1 = 0.00, saturday1 = 0.00,
                        sunday1 = 0.00, monday2 = 0.00, tuesday2 = 0.00,
                        wednesday2 = 0.00, thursday2 = 0.00,
             friday2 = 0.00, saturday2 = 0.00, sunday2 = 0.00;
             double totalHoursWeek1, totalHoursWeek2;

             double regHours1 = 0.00, regHours2 = 0.00,
                         ovtHours1 = 0.00, ovtHours2 = 0.00;
             double regAmount1 = 0.00, regAmount2 = 0.00,
                         ovtAmount1 = 0.00, ovtAmount2 = 0.00;
             double regularHours, overtimeHours;
             double regularAmount, overtimeAmount, totalEarnings;

             double hourlySalary = 0.00;

             // Retrieve the hourly salary
             try
             {
                    hourlySalary = double.Parse(txtHourlySalary.Text);
             }
             catch (FormatException)
             {
                    MessageBox.Show(
                        "The value you typed for the salary is invalid \n" +
                        "Please try again");
                    txtHourlySalary.Focus();
             }

             // Retrieve the value of each day worked
             try
             {
                    monday1 = double.Parse(txtMonday1.Text);
             }
             catch (FormatException)
             {
                    MessageBox.Show("You typed an invalid value\n" +
                             "Please try again");
                    txtMonday1.Focus();
             }
             try
             {
                    tuesday1 = double.Parse(txtTuesday1.Text);
             }
             catch (FormatException)
             {
                    MessageBox.Show("You typed an invalid value\n" +
                        "Please try again");
                    this.txtTuesday1.Focus();
             }
             try
             {
                    wednesday1 = double.Parse(txtWednesday1.Text);
             }
             catch (FormatException)
             {
                    MessageBox.Show("You typed an invalid value\n" +
                        "Please try again");
                    txtWednesday1.Focus();
             }
             try
             {
                    thursday1 = double.Parse(txtThursday1.Text);
             }
             catch (FormatException)
             {
                    MessageBox.Show("You typed an invalid value\n" +
                        "Please try again");
                    txtThursday1.Focus();
             }

             try
             {
                    friday1 = double.Parse(txtFriday1.Text);
             }
             catch (FormatException)
             {
                    MessageBox.Show("You typed an invalid value\n" +
                        "Please try again");
                    txtFriday1.Focus();
             }

             try
             {
                    saturday1 = double.Parse(txtSaturday1.Text);
             }
             catch (FormatException)
             {
                    MessageBox.Show("You typed an invalid value\n" +
                        "Please try again");
                    txtSaturday1.Focus();
             }

             try
             {
                    sunday1 = double.Parse(txtSunday1.Text);
             }
             catch (FormatException)
             {
                    MessageBox.Show("You typed an invalid value\n" +
                        "Please try again");
                    txtSunday1.Focus();
                }
                try
                {
                    monday2 = double.Parse(txtMonday2.Text);
                }
                catch (FormatException)
                {
                    MessageBox.Show("You typed an invalid value\n" +
                        "Please try again");
                    this.txtMonday2.Focus();
                }
                try
                {
                    tuesday2 = double.Parse(txtTuesday2.Text);
                }
                catch (FormatException)
                {
                    MessageBox.Show("You typed an invalid value\n" +
                        "Please try again");
                    this.txtTuesday2.Focus();
                }
                try
                {
                    wednesday2 = double.Parse(txtWednesday2.Text);
                }
                catch (FormatException)
                {
                    MessageBox.Show("You typed an invalid value\n" +
                        "Please try again");
                    this.txtWednesday2.Focus();
                }
                try
                {
                    thursday2 = double.Parse(txtThursday2.Text);
                }
                catch (FormatException)
                {
                    MessageBox.Show("You typed an invalid value\n" +
                        "Please try again");
                    txtThursday2.Focus();
                }
                try
                {
                    friday2 = double.Parse(txtFriday2.Text);
                }
                catch (FormatException)
                {
                    MessageBox.Show("You typed an invalid value\n" +
                        "Please try again");
                    txtFriday2.Focus();
                }
                try
                {
                    saturday2 = double.Parse(txtSaturday2.Text);
                }
                catch (FormatException)
                {
                    MessageBox.Show("You typed an invalid value\n" +
                        "Please try again");
                    txtSaturday2.Focus();
                }
                try
                {
                    sunday2 = double.Parse(txtSunday2.Text);
                }
                catch (FormatException)
                {
                    MessageBox.Show("You typed an invalid value\n" +
                        "Please try again");
                    txtSunday2.Focus();
                }

                // Calculate the total number of hours for each week
                totalHoursWeek1 = monday1 + tuesday1 + wednesday1 +
                      thursday1 + friday1 + saturday1 + sunday1;
                totalHoursWeek2 = monday2 + tuesday2 + wednesday2 +
                    thursday2 + friday2 + saturday2 + sunday2;

                // The overtime is paid time and half
                double ovtSalary = hourlySalary * 1.5;

                // If the employee worked under 40 hours, there is no overtime
                if (totalHoursWeek1 < 40)
                {
                    regHours1 = totalHoursWeek1;
                    regAmount1 = hourlySalary * regHours1;
                    ovtHours1 = 0.00;
                    ovtAmount1 = 0.00;
                } // If the employee worked over 40 hours, calculate the overtime
                else if (totalHoursWeek1 >= 40)
                {
                    regHours1 = 40;
                    regAmount1 = hourlySalary * 40;
                    ovtHours1 = totalHoursWeek1 - 40;
                    ovtAmount1 = ovtHours1 * ovtSalary;
                }

                if (totalHoursWeek2 < 40)
                {
                    regHours2 = totalHoursWeek2;
                    regAmount2 = hourlySalary * regHours2;
                    ovtHours2 = 0.00;
                    ovtAmount2 = 0.00;
                }
                else if (totalHoursWeek2 >= 40)
                {
                    regHours2 = 40;
                    regAmount2 = hourlySalary * 40;
                    ovtHours2 = totalHoursWeek2 - 40;
                    ovtAmount2 = ovtHours2 * ovtSalary;
                }

                regularHours = regHours1 + regHours2;
                overtimeHours = ovtHours1 + ovtHours2;
                regularAmount = regAmount1 + regAmount2;
                overtimeAmount = ovtAmount1 + ovtAmount2;
                totalEarnings = regularAmount + overtimeAmount;

                txtRegularTime.Text = regularHours.ToString("F");
                txtOvertime.Text = overtimeHours.ToString("F");
                txtRegularAmount.Text = regularAmount.ToString("F");
                txtOvertimeAmount.Text = overtimeAmount.ToString("F");

                txtNetPay.Text = totalEarnings.ToString("F");
            }
  16. Execute the application to see the result

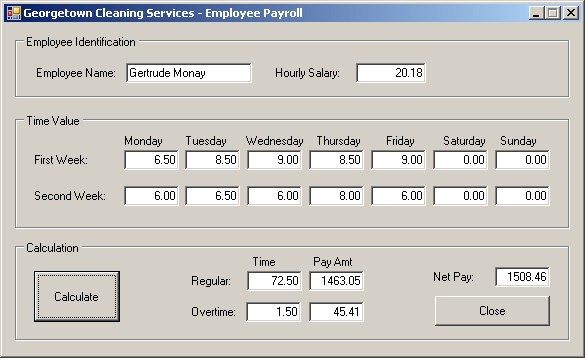

    Payroll Information
  17. Close the form and return to your programming environment
