Introduction to XML



The Extensible Markup Language



Introduction to XML

The Extensible Markup Language, or XML, is a technique of using a document, such as a text file, to describe information and make that information available to whatever and whoever can take advantage of it. The description is done so the document can be created by one person or company and used by another person or another company without having to know who first created the document. This is because the document thus created is not a program, it is not an application: it is just a text-based document.

Because XML is very flexible, it can be used in regular computer applications, in databases, in web-based systems (Internet), in communication applications, in computer networks, in scientific applications, etc. XML is standardized by the W3C (http://www.w3c.org) organization. XML is released through an XML Recommendation document with a version.

Creating an XML File

To create an XML file, in the document, you can use a text editor (such as Notepad) and type units of code using normal characters. The XML document is made of units called entities. These entities are spread on various lines of the document as you judge them necessary and as we will learn. XML has strict rules as to how the contents of the document should or must be structured.

An XML file is first of all a normal text-based document that has a .xml extension. Therefore, however you create it, it must specify that extension. When saving the file, you can include the name of the file in double-quotes:

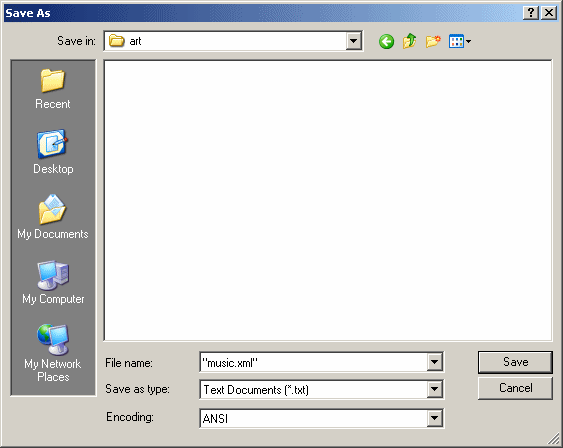

Save As

You can also first set the Save As Type combo box to All Files and then enter the name of the file with the .xml extension.

Many other applications allow creating an XML file or generating one from an existing file. There are also commercial editors you can get or purchase to create an XML file.

After an XML document has been created and is available, in order to use it, you need a program that can read, analyze, and interpret it. This program is called a parser. The most popular parser used in Microsoft Windows applications is MSXML, published by Microsoft.

Of course, after creating and saving an XML file, you can change (edit) it as you judge it necessary.

Opening an XML File

Whether you created an XML file or someone else did, you can open it to view its contents. The easiest way to open an XML file is to use a text editor, such as Notepad. If you use a different type of application, it should provide a File -> Open option for you to open the file

Another way you can display an XML file is in a browser. To do this, if you see the file in Windows Explorer or in My Documents, you can double-click it. Here is an example:

Preview

Introduction to Writing XML Code



Markup

When you create an XML file, there are standard rules you should (must) follow in order to have a valid document. The standards for an XML file are defined by the W3C Document Object Model (DOM).

A markup is an instruction that defines XML. The fundamental formula of a markup is:

<tag>

The left angle bracket "<" and the right angle bracket ">" are required. Inside of these symbols, you type a word or a group of words of your choice, using regular characters of the English alphabet and sometimes non-readable characters such as ?, !, or [. The combination of a left angle bracket "<", the right angle bracket ">", and what is inside of these symbols is called a markup. There are various types of markups we will learn.

The Document Type Declaration (DTD)

As mentioned above, XML is released as a version. Because there can be various versions, the first line that can be processed in an XML file must specify the version of XML you are using. At the time of this writing, the widely supported version is 1.0. When creating an XML file, you should (should in 1.0 but must in 1.1) specify what version your file is conform with, especially if you are using a version higher than 1.0. For this reason, an XML file should start (again, must, in 1.1), in the top section, with a line known as an XML declaration. It starts with <?xml version=, followed by the version you are using, assigned as a string, and followed by ?>. An example of such a line is:

<?xml version="1.0"?>

Encoding Declaration

As mentioned already, the tags are created using characters of the alphabet and conform to the ISO standard. This is known as the encoding declaration. For example, most of the characters used in the US English language are known as ASCII. These characters use a combination of 7 bits to create a symbol (because the computer can only recognize 8 bits, the last bit is left for other uses). Such an encoding is specified as UTF-8. There are other standards such as UTF-16 (for wide, 2-Byte, characters).

To specify the encoding you are using, type encoding followed by the encoding scheme you are using, which must be assigned as a string. The encoding is specified in the first line. Here is an example:

<?xml version="1.0" encoding="utf-8"?>

Practical LearningPractical Learning: Introducing XML

  1. Start Notepad (or a text editor)
  2. In the empty document, type the following:
    <?xml version="1.0" encoding="utf-8"?>
  3. To save the document, on the maine menu, click File -> Save
  4. Locate and display the C:\ drive in the top combo box (you can select another drive if you want)
  5. Click Create Folder
  6. Type exercises as the name of the new folder and press Enter (you can give another name if you want)
  7. Display the exercises folder (or the folder you will use) in the top combo box
  8. Set the Save As Type combo box to All Files (*.*)
  9. Set the file name to students.xml

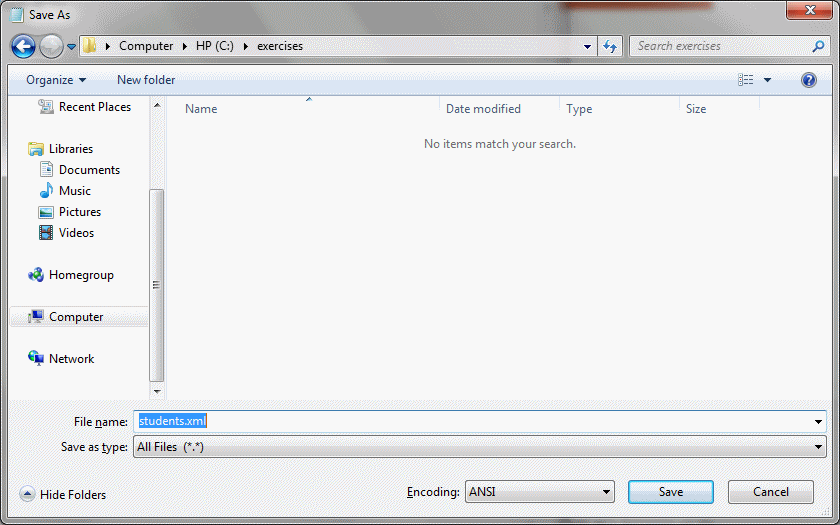

    Save As
  10. Click Save

XML Stylesheet



Introduction

Throughout our lessons, we will learn how to create XML files and populate their content. We saw that, after creating the file, you can display it in a browser. That display is fine for an XML developer, but is not realistic for a normal reader. To make the document easily readable in a normal text format, you can provide instructions to it. These instructions inform the browser as to how to display the various parts of the document. One solution is to use a style sheet.

Creating an XML Stylesheet

An XML style sheet is created like a cascading style sheet, using the rules of that language. The file should be saved with the .css extension.

Using an XML Stylesheet

After creating the style sheet, you can use it by referencing it in the XML document. To do this, in the XML document, under the XML declaration, create the <? ?> delimiters. Inside these delimiters, start with xml-stylesheet as in:

<?xml-stylesheet?>

You must specify the name of the file that contains the style sheet(s) to use. To do this, type href followed by the name of the file and its extension in double-quotes. Here is an example:

<?xml-stylesheet href="example.css"?>

You must also specify the type of file it is. This is done by adding type="text/css". Here is an example:

<?xml-stylesheet href="example.css" type="text/css"?>

XML Tag Creation



Introduction

Earlier, we mentioned that XML worked through markups. A simple markup is made of a tag created between the left angle bracket "<" and the right angle bracket ">". Just creating a markup is not particularly significant. You must give it meaning. To do this, you can type a number, a date, or a string on the right side of the right angle bracket ">" symbol. The text on the right side of ">" is referred to as the item's text. It is also called a value.

After specifying the value of the markup, you must close it: this is a rule not enforced in HTML but must be respected in XML to make it "well-formed". To close a tag, use the same formula of creating a tag with the left angle bracket "<", the tag, and the right angle bracket ">" except that, between < and the tag, you must type a forward slash. The formula to use is:

<tag>some value</tag>

The item on the left side of the "some value" string, in this case <tag>, is called the opening or start-tag. The item on the right side of the "some value" string, in this case </tag>, is called the closing or end-tag. Like<tag> is a markup, </tag> also is called a markup.

With XML, you create your own tags with custom names. This means that a typical XML file is made of various items. Here is an example:

<title>The Distinguished Gentleman</title>
	<director>Jonathan Lynn</director><length>112 Minutes</length>

Tag Names

When creating your tags, there are various rules you must observe with regards to their names. Unlike HTML, XML is very restrictive with its rules. For example, XML is case-sensitive. This means that CASE, Case, and case are three different words. Therefore, you must pay close attention to what you write inside of the < and the > delimiters.

Besides case sensitivity, there are some rules you must observe when naming the tags of your markups:

  • The name of a tag must be in one word, no space in the name
  • The name must start with an alphabetic letter or an underscore - Examples are <Country> or <_salary>
  • The first letter or underscore that starts a name can be followed by:
    • Letters - Example: <OperatingSystem>
    • Digits - Example: <L153>
    • Hyphens - Example: <TV-Rating>
    • Underscores - Example: <Chief_Accountant>
  • The name of a tag cannot start with xml, XML or any combination of X (uppercase or lowercase), followed by M (uppercase or lowercase), and followed by L (uppercase or lowercase)

In future sections, we will learn that, with some markups, you can include non-readable characters between the angle brackets. In fact, you will need to pay close attention to the symbols you type in a markup. We will also see how some characters have special meaning.

Practical Learning Practical Learning: Creating XML

  1. Click the end of the first line in the document and press Enter
  2. Type <students> and press Enter
  3. Type </students> and press Enter:

    <?xml version="1.0" encoding="utf-8"?>
    <students>
    </students>
  4. Save the file




The Root

Every XML document must have one particular tag that, either is the only tag in the file, or acts as the parent of all the other tags of the same document. This tag is called the root. Here is an example of a file that has only one tag:

<rectangle>A rectangle is a shape with 4 sides and 4 straight angles</rectangle>

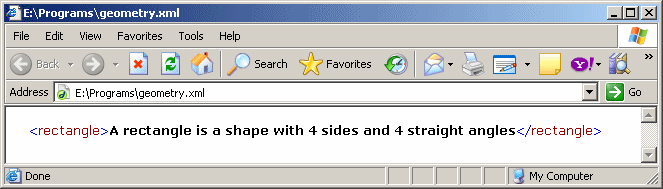

This would produce:

XML in a Browser

If there are more than one tag in the XML file, one of them must serve as the parent or root. Otherwise, you would receive an error. Based on this rule, the following XML code is not valid:

<rectangle>A rectangle is a shape with 4 sides and 4 straight angles</rectangle>
<square>A square is a rectangle whose 4 sides are equal</square>

This would produce:

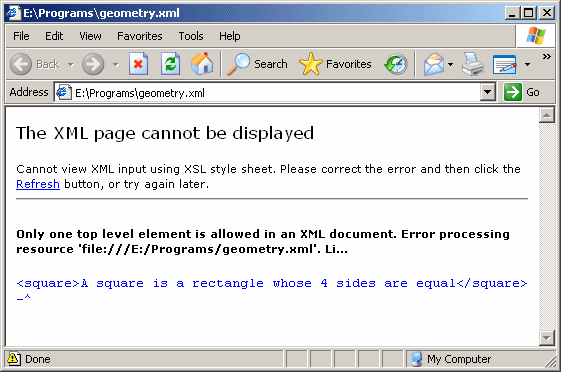

An ill-formed XML file in a Browser

 To correct this type of error, you can change one of the existing tags to act as the root. In the following example, the <rectangle> tag acts as the parent:

<rectangle>A rectangle is a shape with 4 sides and 4 straight angles
<square>A square is a rectangle whose 4 sides are equal</square></rectangle>

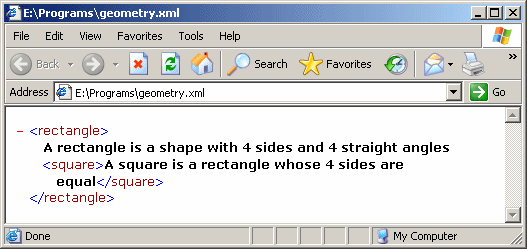

This would produce:

Good Nested Tags

Alternatively, you can create a tag that acts as the parent for the other tags. In the following example, the <geometry> tag acts as the parent of the <rectangle> and of the <square> tags:

<geometry><rectangle>A rectangle is a shape with 4 sides and 4 straight angles
</rectangle><square>A square is a rectangle whose 4 sides are equal</square></geometry>

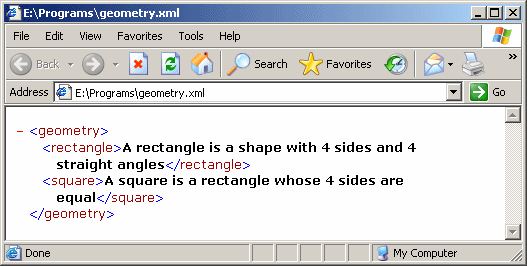

This would produce:

Preview

As mentioned already, a good XML file should have a Document Type Declaration:

<?xml version="1.0" encoding="utf-8"?><geometry><rectangle>A rectangle
is a shape with 4 sides and 4 straight angles</rectangle><square>A
square is a rectangle whose 4 sides are equal</square></geometry>

The Structure of an XML Tag



Empty Tags

We mentioned that, unlike HTML, every XML tag must be closed. We also saw that the value of a tag was specified on the right side of the right angle bracket of the start tag. In some cases, you will create a tag that doesn't have a value or, may be for some reason, you don't provide a value to it. Here is an example:

<dinner></dinner>

This type of tag is called an empty tag. Since there is no value in it, you may not need to provide an end tag but it still must be closed. Although this writing is allowed, an alternative is to close the start tag itself. To do this, between the tag name and the right angle bracket, type an empty space followed by a forward slash. Here is an example:

<dinner />

Both produce the same result or accomplish the same role.

White Spaces

Consider the following example:

<?xml version="1.0" encoding="utf-8"?><geometry><rectangle>A rectangle
is a shape with 4 sides and 4 straight angles</rectangle><square>A
square is a rectangle whose 4 sides are equal</square></geometry>

We typed various items on the same line. If you are creating a long XML document, although creating various items on the same line is acceptable, this technique can make it (very) difficult to read. One way you can solve this problem is to separate tags with empty spaces. Here is an example:

<title>The Distinguished Gentleman</title>
	<director>Jonathan Lynn</director>
		<length>112 Minutes</length>

Yet a better solution consists of typing each item on its own line. This would make the document easier to read. Here is an example:

<title>The Distinguished Gentleman</title>
<director>Jonathan Lynn</director>
<length>112 Minutes</length>

All these are possible and acceptable because the XML parser doesn't consider the empty spaces or end of line. Therefore, to make your code easier to read, you can use empty spaces, carriage-return-line-feed combinations, or tabs inserted in various sections. All these are referred to as white spaces.

Nesting Tags

Most XML files contain more than one tag. We saw that a tag must have a starting point and a tag must be closed. One tag can be included in another tag: this is referred to as nesting. A tag that is created inside of another tag is said to be nested. A tag that contains another tag is said to be nesting. Consider the following example:

<Smile>Please smile to the camera</Smile>
<English>Welcome to our XML Class</English>
<French>Bienvenue © notre Classe XML</French>

In this example, you may want the English tag to be nested in the Smile tag. To nest one tag inside of another, you must type the nested tag before the end-tag of the nesting tag. For example, if you want to nest the English tag in the Smile tag, you must type the whole English tag before the </Smile> end tag. Here is an example:

<Smile>Please smile to the camera<English>Welcome to our XML Class</English></Smile>

To make this code easier to read, you can use white spaces as follows:

<smile>Please smile to the camera
<English>Welcome to our XML Class</English>
</smile>

When a tag is nested, it must also be closed before its nesting tag is closed. Based on this rule, the following code is not valid:

<Smile>Please smile to the camera
<English>Welcome to our XML Class
</Smile>
</English>

The rule broken here is that the English tag that is nested in the the Smile tag is not closed inside the Smile tag but outside.

Practical LearningPractical Learning: Creating XML

  1. To apply the concept of nesting XML tags, complete the students.xml file as follows:

    <?xml version="1.0" encoding="utf-8"?>
    <students>
      <student>
        <studentnumber>284008</studentnumber>
        <firstname>Benjamin</firstname>
        <lastname>Carson</lastname>
        <dateofbirth>04/10/1995</dateofbirth>
        <Gender>2</Gender>
      </student>
      <student>
        <studentnumber>826084</studentnumber>
        <firstname>Gertrude</firstname>
        <lastname>Simms</lastname>
        <dateofbirth>8/22/1993</dateofbirth>
        <Gender>1</Gender>
      </student>
      <student>
        <studentnumber>628460</studentnumber>
        <firstname>Paul</firstname>
        <lastname>Sandt</lastname>
        <dateofbirth>12/24/1997</dateofbirth>
        <Gender>3</Gender>
      </student>
      <student>
        <studentnumber>792714</studentnumber>
        <firstname>Chrissie</firstname>
        <lastname>Burchs</lastname>
        <dateofbirth>02/06/1993</dateofbirth>
        <Gender>1</Gender>
      </student>
    </students>
  2. Save the file
  3. Start your browser if necessary.
    Open the students.xml file and display it

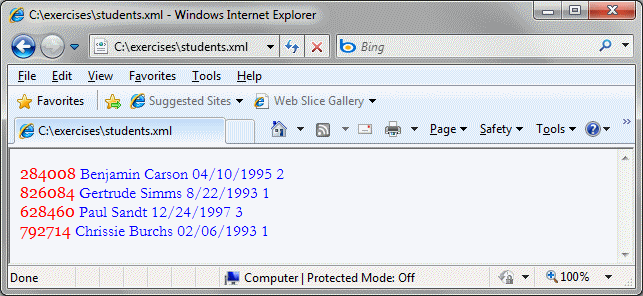

    XML File Preview
  4. Start another instance of Notepad (or a text editor)
  5. In the empty document, type the following:
    student {
      display: block; }

    studentnumber {
      font-family: Georgia, Garamond, 'Times New Roman', serif;
      font-size:   12pt;
      color:       #FF0000; }

    firstname, lastname, dateofbirth, gender {
      font-family: Garamond, 'Times New Roman', Georgia, serif;
      font-size:   12pt;
      color:       #0000FF; }

  6. To save the document, on the maine menu, click File -> Save
  7. Locate and display the C:\exercises folder (or the folder you are using) in the top combo box
  8. Set the Save As Type combo box to All Files (*.*)
  9. Set the file name to students.css
  10. Click Save
  11. Access the other instance of Notepad
  12. To apply the style sheets, change the document as follows:

    <?xml version="1.0" encoding="utf-8"?>
    <?xml:stylesheet href="students.css" type="text/css" ?>
    <students>
      <student>
        <studentnumber>284008</studentnumber>
        <firstname>Benjamin</firstname>
        <lastname>Carson</lastname>
        <dateofbirth>04/10/1995</dateofbirth>
        <Gender>2</Gender>
      </student>
      <student>
        <studentnumber>826084</studentnumber>
        <firstname>Gertrude</firstname>
        <lastname>Simms</lastname>
        <dateofbirth>8/22/1993</dateofbirth>
        <Gender>1</Gender>
      </student>
      <student>
        <studentnumber>628460</studentnumber>
        <firstname>Paul</firstname>
        <lastname>Sandt</lastname>
        <dateofbirth>12/24/1997</dateofbirth>
        <Gender>3</Gender>
      </student>
      <student>
        <studentnumber>792714</studentnumber>
        <firstname>Chrissie</firstname>
        <lastname>Burchs</lastname>
        <dateofbirth>02/06/1993</dateofbirth>
        <Gender>1</Gender>
      </student>
    </students>
  13. Save the file
  14. Return to the browser and refresh it
    XML File Preview
  15. Close the browser

An XML Node



Introduction to XML Nodes

Consider the following example of an XML file named Videos.xml:

<?xml version="1.0" encoding="utf-8" ?>
<Videos>
    <Video>
	<Title>The Distinguished Gentleman</Title>
	<Director>Jonathan Lynn</Director>
	<Length>112 Minutes</Length>
	<Format>DVD</Format>
	<Rating>R</Rating>
    </Video>
    <Video>
	<Title>Her Alibi</Title>
	<Director>Bruce Beresford</Director>
	<Length>94 Mins</Length>
	<Format>DVD</Format>
	<Rating>PG-13</Rating>
    </Video>
    <Video>
	<Title>Chalte Chalte</Title>
	<Director>Aziz Mirza</Director>
	<Length>145 Mins</Length>
	<Format>DVD</Format>
	<Rating>N/R</Rating>
    </Video>
</Videos>

An XML file appears as an upside-down tree: it has a root (in this case <Videos>), it can have branches (in this case <Video>), and it can have leaves (an example in this case is <Title>). As we have seen so far, all of these objects are created using the same technique: a tag with a name (such as <Title>) and an optional value. Based on their similarities, each of these objects is called a node.

Introduction to Node Types

To make XML as complete and as efficient as possible, it can contain various types of nodes. These are also referred to as node types. XML has lotst of them as we will see in the next lessons.
