Visual C++ .Net Controls: The Combo Box


A combo box is a control that maintains a list of objects but displays one at a time to the user. A regular combo box is equipped with a rectangular text area and a down-pointing arrow. To use the combo box, the user clicks the arrow, which displays its list of items. Then the user clicks one item from the list and the list retracts like a plastic. The item the user would have selected would display in the text box side of the control. To perform a different selection, the user uses the same process. Practically, there are different variations of the combo box control depending on the programmer's goal.

To create a combo box in MS .Net application, you can use the ComboBox class.

Creating a combo box might not be the most difficult thing to do but when the user has performed a different selection, you will usually need to know what item the user selected. A combo box maintains its list of items by their text or their indexes. You can use the same ability to retrieve either the text or the index of the item that was selected.
A Combo Box Example
  1. Start Microsoft Visual Studio .NET
  2. On the Start Page, click New Project (alternatively, on the main menu, you can click File -> New -> Project...)
  3. On the New Project dialog box, in the Project Types tree list, click Visual C++ Projects
  4. In the Templates list, click Managed C++ Empty Project
  5. In the Name edit box, replace the <Enter name> content with ComboBox Example
  6. In the Location combo box, accept the suggestion or type your own. If you don't have any, type C:\Programs\MSVC.NET
  7. Click OK
  8. On the main menu, click Project -> Add New Item...
  9. In the Add New Item dialog box, in the Templates list, click C++ File
  10. In the Name box, replace <Enter name> with Main and click OK
  11. Replace the contents of the empty file with the following:

    #using <mscorlib.dll>
#using <System.dll>
#using <System.Drawing.dll>
#using <System.Windows.Forms.dll>

using namespace System;
using namespace System::Drawing;
using namespace System::Windows::Forms;

__gc class SimpleForm : public Form
{
public:
	SimpleForm();
private:
	// Declare an instance to a ComboBox class
	ComboBox *cboCountries;

};

SimpleForm::SimpleForm()
{
	// The caption of the form
	this->Text = S"Combo Box Example";

	// Use the instance of the combo box to initialize the class
	cboCountries = new ComboBox;
	// Specify where to position the combo box
	cboCountries->Location = Point(16, 16);
	// Add each item to the combo box
	cboCountries->Items->Add(S"Gabon");
	cboCountries->Items->Add(S"Senegal");
	cboCountries->Items->Add(S"Botswana");
	cboCountries->Items->Add(S"Zambia");
	cboCountries->Items->Add(S"Lesotho");
	// Specify which item to display when the combo box comes up
	cboCountries->Text = S"Senegal";

	// After creating the control, add it to the
	// group of controls of the form
	this->Controls->Add(cboCountries);
}

int __stdcall WinMain()
{
	SimpleForm *SF = new SimpleForm();
	Application::Run(SF);

	return 0;
}
  12. Test the application and return to MSVC
  13. To retrieve the text of the item that was selected and display it in a label, change the source file as follows:

    #using <mscorlib.dll>
#using <System.dll>
#using <System.Drawing.dll>
#using <System.Windows.Forms.dll>

using namespace System;
using namespace System::Drawing;
using namespace System::Windows::Forms;

__gc class SimpleForm : public Form
{
public:
	SimpleForm();
private:
	Label *lblItemSelected;
	// Declare an instance to a ComboBox class
	ComboBox *cboCountries;
	void SelectionChanged(Object *Sender, EventArgs *Args);
};

SimpleForm::SimpleForm()
{
	// The caption of the form
	this->Text = S"Combo Box Example";

	// Use the instance of the combo box to initialize the class
	cboCountries = new ComboBox;
	// Specify where to position the combo box
	cboCountries->Location = Point(16, 16);
	// Add each item to the combo box
	cboCountries->Items->Add(S"Gabon");
	cboCountries->Items->Add(S"Senegal");
	cboCountries->Items->Add(S"Botswana");
	cboCountries->Items->Add(S"Zambia");
	cboCountries->Items->Add(S"Lesotho");
	// Specify which item to display when the combo box comes up
	cboCountries->Text = S"Senegal";
	cboCountries->add_SelectedIndexChanged(new EventHandler(this, SelectionChanged));
	// After creating the control, add it to the
	// group of controls of the form
	this->Controls->Add(cboCountries);

	lblItemSelected = new Label;
	lblItemSelected->Location = Point(16, 48);
	lblItemSelected->AutoSize = true;
	lblItemSelected->Text = S"Senegal";
	this->Controls->Add(lblItemSelected);
}

void SimpleForm::SelectionChanged(Object *Sender, EventArgs *Args)
{
	lblItemSelected->Text = cboCountries->Text;
}

int __stdcall WinMain()
{
	SimpleForm *SF = new SimpleForm();
	Application::Run(SF);

	return 0;
}

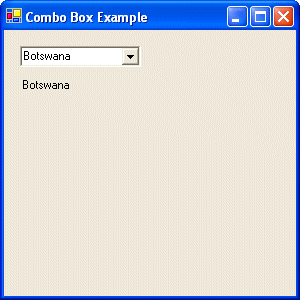

  14. Test the application
