Introduction to the Columns of a Table



Columns Fundamentals



Introduction

As mentioned already, a table is a list of values. Because the values are presented in a vertical arangement, the list is considered a column. We also mentioned that a simple table is made of a single list. A more complex table is made of more than one list. This means that a table can contain many columns. In reality, the columns provide a way to better organize the table. Here is an example:

Name Age Gender Relationship
Judie 18 Female Sister
Ernest 24 Male Cousin
Bill 52 Unknown Uncle
David 36 Male Brother
Hermine 12 Unknown Niece

Based on this, a list is simply an arrangement of information and this information, also called data, is stored in tables.

Because a column is a characteristic of a table, it is also called an attribute.

Practical LearningPractical Learning: Introducing Tables

  1. Launch Microsoft SQL Server and connect
  2. In the Object Explorer, expand the Databases node if necessary.
    Right-click University1 and click Delete, then click OK
  3. In the Object Explorer, right-click Databases and click New Database...
  4. In the New Database dialog box, set the Database Name to University1
  5. Click OK
  6. In the Object Explorer, right-click Databases and click Refresh
  7. Click the + button of University1 to expand it
  8. Under University1, click the + button of Security to expand it
  9. Right-click Schemas and click New Schema...
  10. In the Schema Name text box, type Academics
  11. Click OK
  12. In the Object Explorer, under University1, right-click Tables and click New Table...
  13. In the Properties window, click Schema, then click the arrow of its combo box and select Academics

Visually Creating a Column

You can create a column when designing a table or using code. To visually create a column, while the table is displaying in Design View, specify the characteristics of the column using the section on the right side of the right-pointing row header:

Visually Creating a Column

Creating a Column Using Code

We saw that the primary formula to create a table was:

CREATE TABLE TableName

After specifying the name of the table, you must list the columns of the table. The list of columns starts with an opening parenthesis "(" amd ends with a closing parenthesis ")". Each column must be separated from the next with a comma. You can include all columns on the same line if possible as follows:

CREATE TABLE [SchemaName.]TableName(Column1, Column2, Column3)

Alternatively, to make your statement easier to read, you should create each column on its own line as follows:

CREATE TABLE [SchemaName.]TableName(
Column1,
Column2,
Column3);

You can also indent the columns definitions:

CREATE TABLE [SchemaName.]Country
(
    Column1,
    Column2,
    Column3
);

There are two primary pieces of information you must specify for each column: its name and its type. Therefore, the syntax of creating a column is:

ColumnName DataType Options

We also saw that you could use sample code to create a table. This allows you to have more control over the various columns you want the table to have. To do this, open an empty Query Editor and display the Templates Explorer. Expand the Table node. Under Table, you can drag Create Table, Add Column, or Drop Column, and drop it in the Query Editor. If you use dropped Add Column or Drop Column, you can delete the undesired sections of the code and isolate only the part that handles table creation. Here is an example:

--==========================================================================
-- Add column template
--
-- This template creates a table, then it adds a new column to the table.
--==========================================================================
USE <database, sysname, AdventureWorks>
GO

CREATE TABLE <schema_name, sysname, dbo>.<table_name, sysname, sample_table>
(
	column1 int,
	column2 char(10)
)
GO

The Name of a Column

Like everything in a database, a column must be identified; that is, a column must have a name. If you are visually creating a table, to specify the name of a column, use a cell under Column Name.

The name of a column:

  • Can start with a letter, a digit, or an underscore
  • Can include letters, digits, and spaces in any combination

After respecting these rules, you can add your own rules. In our lessons, here are the rules we will use to name our columns:

  • A name will start with a letter. Examples are n, act, or Second
  • After the first character as an underscore or a letter, the name will have combinations of underscores, letters, and digits. Examples are n24 or col_52_t
  • Unless specified otherwise, a name will not include special characters such as !, @, #, $, %, ^, &, or *
  • If the name is a combination of words, each word will start in uppercase. Examples are Date Hired, LastName, Drivers License Number, or EmailAddress

You should avoid using the following reserved words of Transact-SQL when naming a column:

aggregate alter and any application
as assembly backup begin between
bigint binary bit break broker
by case catalog catch certificate
char check checkpoint close commit
compute contains continue contract create
credential cursor database date datetime
datetime2 datetimeoffset deallocate decimal declare
default delete deny disable drop
else enable end endpoint event
exec execute false fetch float
foreign from full fulltext function
geography geometry go goto grant
group having hierarchyid if image
in index insert int into
is kill language like login
master merge message money move
nchar next not ntext null
numeric nvarchar on order output
partition persisted print proc procedure
queue real receive remote resource
return returns revert revoke role
rollback rowversion rule save schema
select send set setuser shutdown
smalldatetime smallint smallmoney sql_variant status
table text then time timestamp
tinyint tran transaction trigger true
try type union unique uniqueidentifier
update use values varbinary varchar
view when while with xml

There are some other words you should avoid. If you really want to use one of those words, include the name in double-quotes, such as "Address", or between square brackets: [ and ]. An example would be [Address]. In reality, you can include any column name in double-quotes or in [].

Practical LearningPractical Learning: Starting a Column

  • Click the box under Column Name header, type LetterGrade

    Creating a Column

Introduction to the Type of Value of a Column



The Data Type of a Column

The most important role of a column is to hold some values. For this reason, a column is also called a field. There are various types of values, including names, numbers, etc. Therefore, when creating a column, you must specify the type of values it will hold.

If you are visually creating a column, to specify its type:

  • In the top section of the table, click the column name. Click the arrow of the combo box under the corresponding Data Type area and select the desired type
  • In the top section of the table, click the column. In the botton section, click the arrow of the Data Type combo box and select the data type

If you are programmatically creating the column, after specifying its name, enter its type:

CREATE TABLE TableName
(
    ColumnName Type
);
GO

In reality, the type specifies the amount of memory that each value of the column will need  to get stored in the computer memory. Since there are various kinds of information a database can deal with, SQL and Transact-SQL provide a set of data types.

Introduction to the Type of Value of a Column

Characters

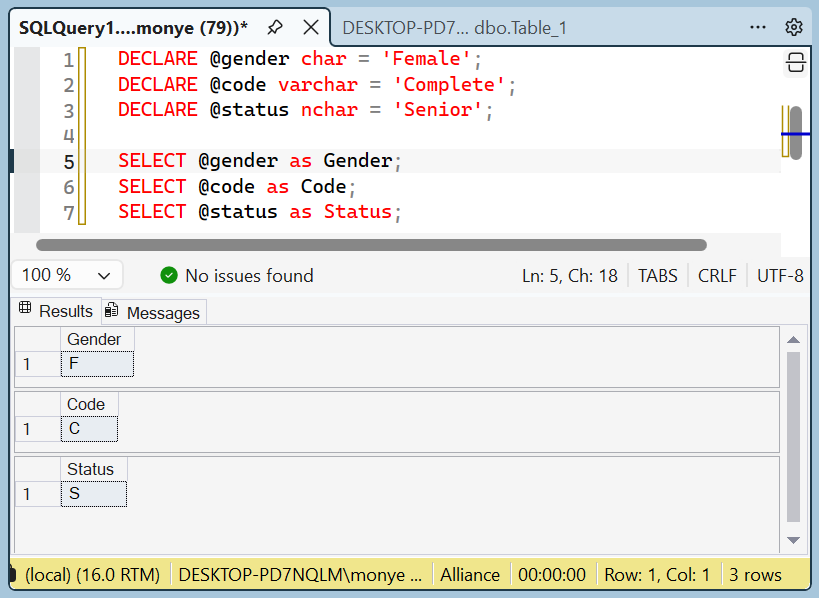

A character is any kind of symbol: alphabetic, numeric, readable, or not. To indicate that a column would use any symbol, specify its data type as CHAR (or char). Here is an example:

CREATE TABLE LibraryMembers
(
    Gender char
);
GO

Practical LearningPractical Learning: Setting the Data Type of a Column

  1. Click the box under Data Type header, then click the arrow of its combo box, and select char (it is set to char(10), in the next lesson, we will explain what the number 10 means; for now, ignore it)
  2. To close the table, click its Close button Close
  3. When asked whether you want to save the table, click Yes
  4. Type the name as StudentsGradeScale
  5. Click OK

Natural Numbers Types

Transact-SQL supports various types of natural numbers, also called integers. The length of an integer is the number of bytes it can hold. Transact-SQL supports the following integer types:

  • Tiny Integers: If the values of a column will be very small natural numbers such as student's ages, or the number of pages of a brochure or newspaper, select or apply the tinyint data type. A column of type tinyint can hold positive numbers that range from 0 to 255. The length is a tiny integer is 1 byte. Here are examples:
    CREATE TABLE MaritalsStatus
    (
        StatusCode tinyint
    );
    GO
  • Small Integers: If a column needs small integers in the range of -32,768 to 32,767, apply the smallint data type to it. The length of a small integer is 2 bytes
  • If the values of a column would range from -2,147,483,648 to 2,147,483,647, you can apply the int data type. For an int type, the length is 4 bytes
  • Long Integers: A long integer is a number that is between -9,223,372,036,854,775,808 to 9,223,372,036,854,775,807. If you want a column that can hold values of that range. Apply the bigint data type to it. The length of a big integer is 8 bytes

Binary Values

Binary Values

The binary data type is used for a column that would hold natural numbers. The value is considered a series of bits and each bit can be treated, checked or used individually. A binary value is usually used to carry various pieces of information where the pieces must be treated as a group; that is, they must be carried together. For example, consider the characteristics of a file. A file can be hidden, compressed, private, locked, etc. A file can have only one, only two, or many of these characteristics.

A single binary value can be used to carry a combination of these pieces of information. In most cases, the person (or the system) who (or that) creates the binary value must specify what piece of information each bit holds. Then, when it comes time to use the value, the person (or the system) who (or that) wants it must check the value of a bit or of a combination of bits to see what it produces and retrieve the desired value (if you want to get more information, try to find out how the messages in Microsoft Windows (Win32) work or how file attributes are stored in a file).

The value of a binary type can be stored as a normal integer. Use the binary data type if all values of the column would have the exact same length (or quantity). If you anticipate that some entries would be different than others, then use the alternative varbinary data type. The varbinary type also is used for hexadecimal numbers but allows dissimilar entries, as long as all entries are hexadecimals.

Decimal Numbers

A decimal is a number that can have a period (or the character used as the decimal separator as set in the Control Panel) between the digits. An example is 12.625 or 44.80. Like an integer, a decimal number can start with a + or just a digit, which would make it a positive number. A decimal number can also start with a - symbol, which would make it a negative number. If the number represents a fraction, a period between the digits specifies what portion of 1 was cut.

If you anticipate a column to hold decimal values, specify its data type as numeric or decimal (either decimal or numeric would produce the same effect in Microsoft SQL Server). Here is an example:

CREATE SCHEMA Administration
GO

CREATE TABLE Administration.StudentsGradeScale
(
	LetterGrade char,
	MinRange decimal,
	MaxRange DECIMAL,
	MinPercent Decimal,
	MaxPercent decimal,
	Descriptor nchar
);
GO

Real Numeric Types

A floating-point number is a fractional number, like the decimal type. Floating-point numbers can be used if you would allow the database engine to apply an approximation to the actual number. To let you use floating-point numbers on a column, Transact-SQL provides the float and the real data types. You can use any of them. Here is an example:

-- This table holds information to evaluate
-- the commissions earned by employees of a furniture store
CREATE TABLE EmployeesCommissions
(
    TransactionMinimum real,
    TransactionMaximum REAL,
    CommissionBase Real,
    CommissionRate real
);
GO

Money

If a column will store monetary values, you can specify its data type as money. A field with a money data type can hold positive or negative values from -922,337,203,685,477.5808 to +922,337,203,685,477.5807.

Small Money

While the money data type can be used for large quantities of currency values, the smallmoney data type can be applied to a column whose values cannot be lower than -214,748.3648 nor higher than 214,748.3647.

The precision and scale of a money or smallmoney variable are fixed by Microsoft SQL Server. The scale is fixed to 4.

Boolean Values

A Boolean value is a piece of information stated as being true or false, On or Off, Yes or No, 1 or 0. To support such values, Transact-SQL provides a data type named BIT (or bit) that you can apply to a column. Here is an example:

CREATE TABLE TruckDriver
(
    IsOrganDonor bit
);
GO

A SQL Variant Type

Transact-SQL (and many other languages) provides data types that can be used to hold almost any type of value, including values of types we have already reviewed. Because these types can be vague and difficult to identify, you should hardly use them.

Transact-SQL provides the sql_variant data type. It can be used in place of any of the data types we have seen so far. This means that if you create a column of type sql_variant , the column that store any type of value.

Geometric Value-Based Columns

All of the data types we have used so far provided their values in a single and simple format. In fact, those values were based on types we have studied since elementary school. Transact-SQL supports values that are based on coordinates of a geometrical shape or on space. These are referred to as spatial types.

Transact-SQL provides support for coordinates of a geometric figures. It does this through a data type named geometry. To create a column for such a type, you can select or apply it:

Spatial Type Columns

Geographical Location-Based Columns

Transact-SQL supports geographical locations. This is done using a data type named GEOGRAPHY. To create a column that stores the geographic locations of items, select or apply this data type:

Spatial Type Columns

User-Defined Types

Microsoft SQL Server allows you to create an alternate name for one of the data types we have seen so fare and use that name where you would use the associated data type. You don't create a data type. You define a name that is easier for you to recognize. A user-defined data type (UDT) is a technique of creating a name for a data type for one of the existing Transact-SQL data types.

Before creating a user-defined data type, you must be familiar with the existing types. You can do this visually or programmatically.

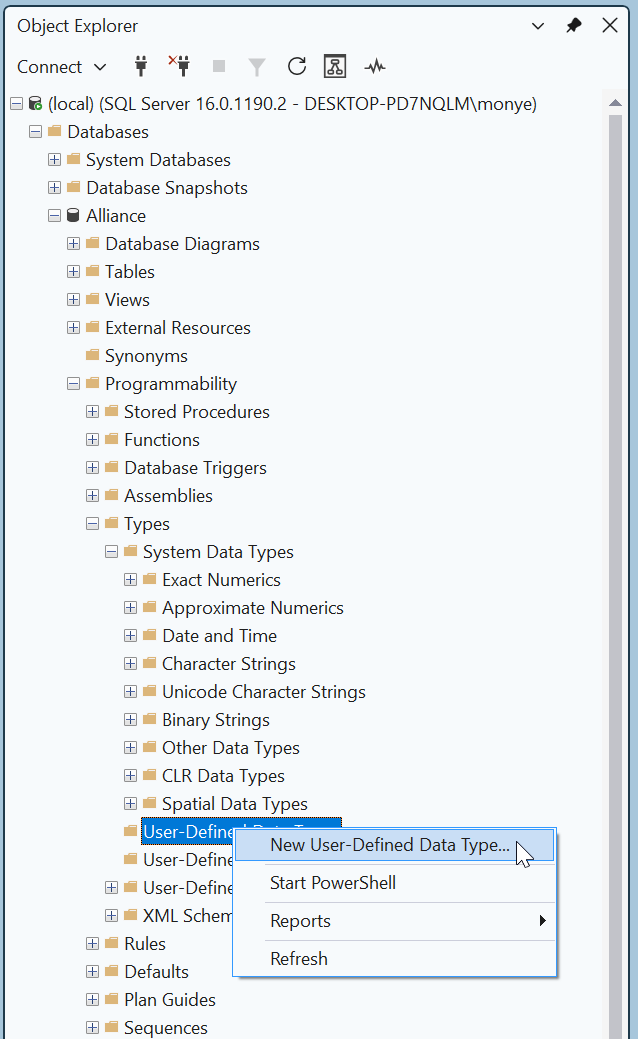

To visually create a UDT, in the Object Explorer, expand a database, expand its Programmability node, and expand the Types item. Under Types, right-click User-Defined Data Types and click New User-Defined Data Type...

User-Defined Types

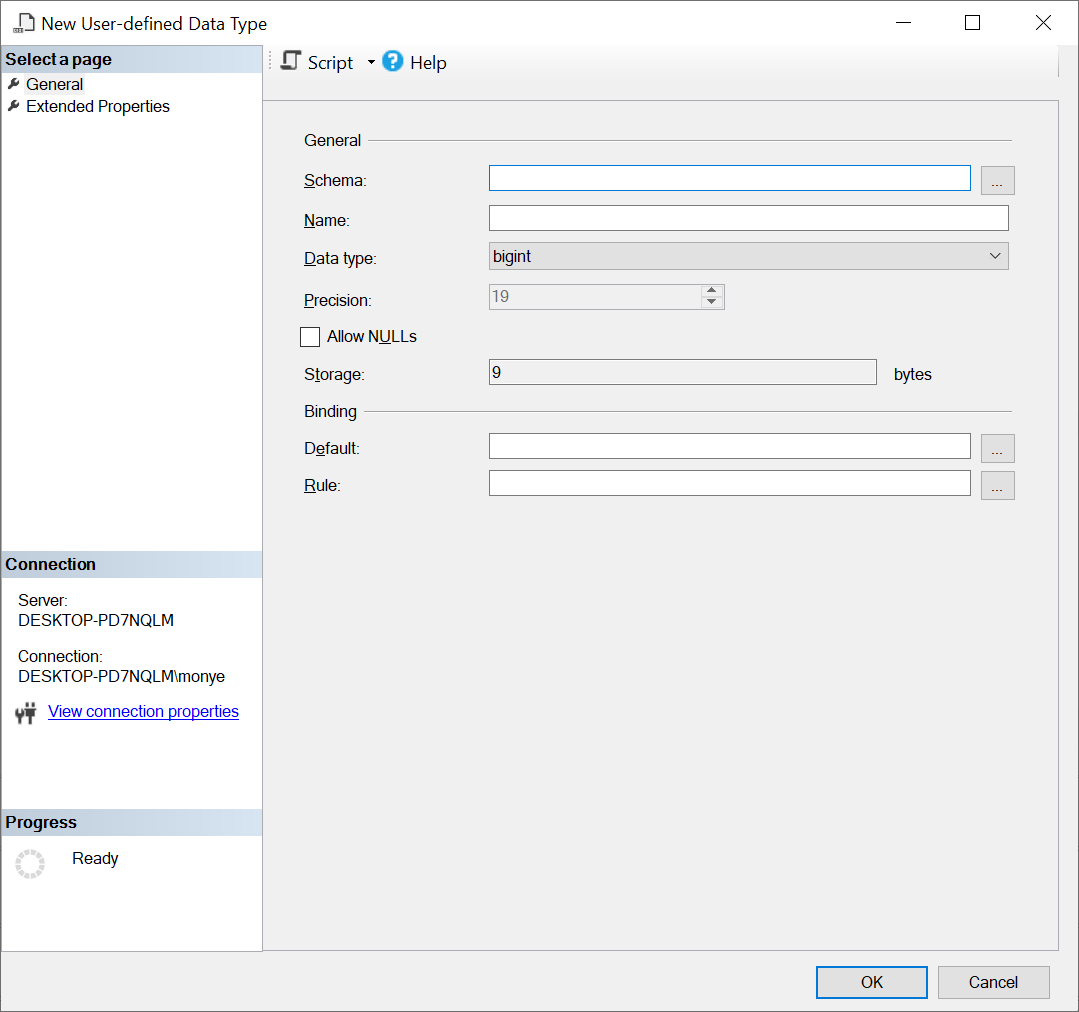

This would open the New User-Defined Data Type dialog box. The first piece of information you must provide is the schema that will own the new type. Normally, a default schema is provided and you can just accept it. Otherwise, if you had previously created a schema and you want to use it, click the button on the right side of the Schema text box, select it and click OK.

The two most important pieces of information you must provide are a name for the new type as alias and the Transact-SQL type on which it will be based. The name must follow the rules of names in Transact-SQL. In the Data Type combo box, select the data type of your choice. Of course, you must know what type you want to use. Here is an example:

New User-Defined Data Type

After entering and selecting the desired information, click OK.

To create a UDT with code, the basic formula to use is:

CREATE TYPE AliasName FROM BaseType

To get assistance from template code, open a Query Editor. From the Templates Explorer, expand the User-Defined Data Type node. Drag Create User-Defined Data Type and drop it in the Query Editor. Skeleton code will be generated for you:

-- ================================
-- Create User-defined Data Type
-- ================================
USE <database_name,sysname,AdventureWorks>
GO

-- Create the data type
CREATE TYPE <schema_name,sysname,dbo>.<type_name,sysname,Phone>
	FROM <base_type,,nvarchar> (<precision,int,25>) <allow_null,,NULL>

-- Create table using the data type
CREATE TABLE <table_name,sysname,test_data_type>
(
	ID int NOT NULL,
	Phone <schema_name,sysname,dbo>.<type_name,sysname,Phone> NULL
)
GO

You start with the CREATE TYPE expression, followed by the desired name for the new type. After the FROM keyword, type an existing Transact-SQL data type. Here is an example:

CREATE TYPE NaturalNumber FROM int;
GO

In the same way, you can create as many aliases of known data types as you want. You must also be aware of rules that govern each data type. Here are examples:

CREATE TYPE NaturalNumber FROM int;
GO
CREATE TYPE Boolean FROM bit;
GO



Columns Review



Introduction

To see the structure of a table in the SQL Server Management Studio, in the Object Explorer, you can expand it:

Tables

To view the columns of a table using SQL code, in a Query Editor, type sp_columns followed by the name of the table the columns belong to. Then execute the code. Here is an example:

Viewing the Properties of Columns of a Table

The bottom section displays the list of columns in the COLUMN_NAME column and other characteristics on the right columns.

The Properties of a Column

A column on a table controls what kind of data is appropriate for that particular column. The characteristics that identify or describe such a table are defined as its properties. Two primary properties are particularly important and they are required for each column: the name and the data type. Besides these, some other properties can be used to further control the behavior of a field.

Besides the name and data type, you can control the columns of a table using the Columns property sheet in the lower section of the table in Design View. These properties sometimes depend on the data type of the column. Therefore, to specify the properties of a column, you must first select it in the upper section of the table. This selection can be done by just clicking either the name or the data type. Then you can click the first field in the lower section, select the desired property and type the necessary value:

Column Properties

As an alternative to using the Design View of a table, to see the characteristics of a column, in the Object Explorer, expand the database and the Tables node. Expand, the Columns node:

  • Right-click the name of the column and click Properties

Column

  • Double-click the column

Any of these actions would display the Column Properties dialog box:

Column Properties

Another way to see the properites of a column is bay calling COLUMNPROPERTY(). Its syntax is:

COLUMNPROPERTY(id, column, property) RETURNS int/bit;

COLUMNPROPERTY has three sections and all are required. It produces a value that depends on the type of information you want. It can produce an integer or a Boolean (bit) value.

The first section is the integral identifier of the table that holds the column. The second section is the name of the column. The third section specifies the type of information you want. For example, to know the maximum number of characters that a character-based column allows, you can pass the third section as PRECISION (case-insensitive).

Description

Common and enabled for all fields, the description is used for a sentence that describes the column. You can type anything on that field.

Collation

Because different human languages use different mechanisms in their alphabetic characters, this can affect the way some sort operations are performed on data, you can ask the database to apply a certain language mechanism to the field by changing the Collation property. Otherwise, you should accept the default specified by the table.

To specify the collation of a column when creating in, type COLLATE, followed by the desired collation code. Here is an example:

CREATE TABLE Customers(
    FullName nvarchar(50) COLLATE SQL_Latin1_General_CP1_CI_AS
);

Columns Maintenance



Introduction

Column maintenance consists of reviewing or changing any of its aspects. This includes reviewing the structure of columns of a table, renaming a column, deleting a column, changing the data type or the nullity of a column, etc.

When making a change on a column, you are also said to alter the table. One of the operations involved with modifying a column consists of changing its data type. To support this operation, the SQL starts with the following formula:

ALTER TABLE TableName

When using this statement, the ALTER TABLE expression is required and it is followed by the name of the table.

Columns Maintenance

Adding a New Column

After a table has already been created, you can still add a new column to it.

To visually add a new column in SQL Server Management Studio, in the Object Explorer:

  • Expand the database that owns the table that will use the new column. Expand the Tables node. Right-click Columns and click New Column...

New Column

  • Right-click the table and click Design. Click the first empty field under Column Name

In both cases, in the empty bottom field, enter the necessary information. In SQL, the basic formula to add a new column to a table is:

ALTER TABLE TableName
ADD ColumnName Properties

ColumnName is required. In fact, on the right side of the ADD word, define the column by its name and using all the options we reviewed for columns. Here is an example:

ALTER TABLE StaffMembers
ADD Gender nchar;
GO

When this code executes, a new column named Gender of type nchar will be added to a table named StaffMembers in the current database.

You can also use sample code to add a new column to a table. First display an empty Query Editor and display the Templates Explorer. Expand the Table node. Under Table, drag Add Column and drop it in the Query Editor. Delete the undesired sections of code and keep only the part that deals with adding a column. Here is an example:

--==========================================================================
-- Add column template
--
-- This template creates a table, then it adds a new column to the table.
--==========================================================================
USE <database, sysname, AdventureWorks>
GO

-- Add a new column to the table
ALTER TABLE <schema_name, sysname, dbo>.<table_name, sysname, sample_table>
	ADD <new_column_name, sysname, column3>
	    <new_column_datatype,, datetime>
	    <new_column_nullability,, NULL>
GO

Inserting a New Column

To visually insert a new column between two existing one, right-click the column that will succeed it and click Insert Column:

This would create a new empty field. Type the desired name and specify the other options.

Renaming a Column

If you find out that the name of a column is not appropriate, you can change it.

To visually rename a column, in the Object Explorer:

  • Expand the database. Expand its Tables node. Expand the Columns node. Right-click the column and click Rename

Renaming a Column

  • Right-click the table that the column belongs to and click Modify. In the Design View, highlight the name of the desired column to put it into edit mode and edit it

In SQL, to change the name of a column, first open an empty Query Editor. In a Query Editor, use the following formula of sp_rename:

sp_rename 'TableName.ColumnName', 'NewColumnName', N'COLUMN'

Then execute the statement. sp_rename and 'COLUMN' are required. TableName is the name of the table that the column belongs to. ColumnName is the current name of the column. NewColumnName is the desired name you want to give to the column. Here is an example:

sp_rename N'StaffMembers.FullName', N'EmployeeName', N'COLUMN';
GO

When this code executes, the interpreter will look for a column named FullName in the StaffMembers table of the current or selected database. If it finds that column in the table, then it renames it EmployeeName.

Changing the Data Type of a Column

To visually change the data type of a column, open the table in Design View, locate the column under Column Name, and change its type under Data Type.

The formula to programmatically change the data type of a column is:

ALTER TABLE TableName
ALTER COLUMN ColumnName NewDataType

Here is an example:

CREATE SCHEMA HumanResources;
GO
CREATE TABLE HumanResources.Genders
(
    Gender char
);
GO
ALTER TABLE HumanResources.Genders
ALTER COLUMN Gender tinyint;
GO

Deleting a Column

If you have an undesired column that you don't want anymore in a table, you can remove it:

  • To visually delete a column, in the Object Explorer, expand the database, the Tables, and the Columns nodes. Right-click the undesired column and click Delete. The Delete Object dialog box would display. If you still want to delete the column, click OK. To change your mind, click Cancel
  • To delete a column using code, first open or access an empty Query Editor, and use the following formula:
    ALTER TABLE TableName
    DROP COLUMN ColumnName
    On the right side of the ALTER TABLE expression, type the name of the table. On the right side of the DROP COLUMN expression, enter the name of the undesired column. Here is an example:
    ALTER TABLE StaffMembers
    DROP COLUMN CurrentResidence;
    GO
    When this code executes, the interpreter will look for a column named CurrentResidence in a table StaffMembers of the current or selected database. If it finds that column, it will remove it from the table.

Microsoft SQL Server can also generate sample code you can use to delete a column from a table. Before doing this, first display an empty Query Editor and display the Templates Explorer. Expand the Table node. In the Table section, drag Drop Column and drop it in the Query Editor. Delete the undesired sections of code and keep only the part that deals with adding a column. Here is an example:

--============================================
-- Drop column template
--
-- This template creates a table, then it
-- drops one of the columns of the table.
--============================================
USE <database, sysname, AdventureWorks>
GO

-- Drop a column from the table
ALTER TABLE <schema_name, sysname, dbo>.<table_name, sysname, sample_table>
	DROP COLUMN <new_column_name, sysname, column3>
GO

Practical LearningPractical Learning: Ending the Lesson

  • Close Microsoft SQL Server.
    If asked whether you want to save something, click No





Previous Copyright © 2000-2013 FunctionX Next
